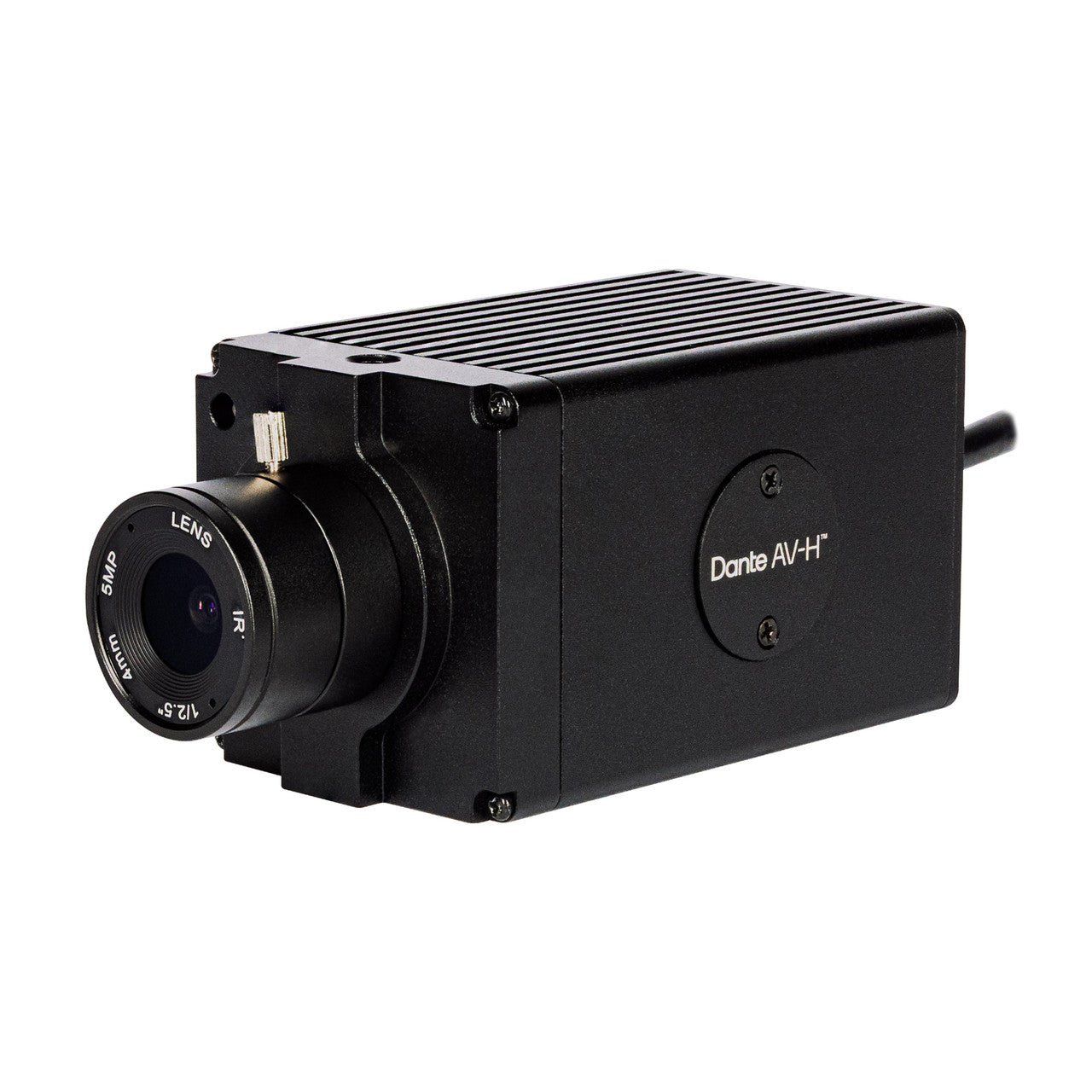

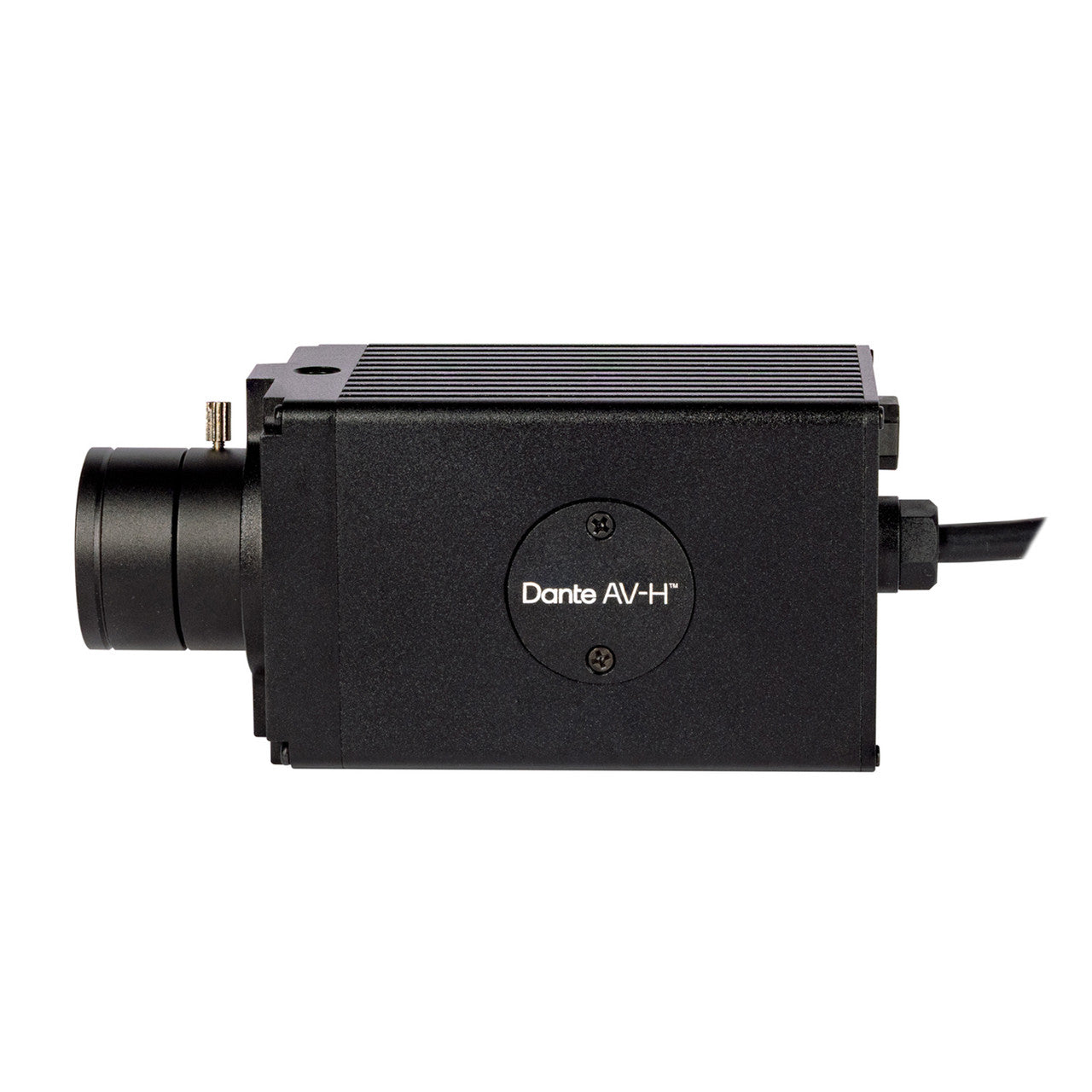

Dante AV-H Ready Full-HD Streaming with IP / SRT / HDMI, PoE+ POV Camera
Dante AV-H Ready Full-HD Streaming with IP / SRT / HDMI, PoE+ POV Camera
SKU:AID-HD-AVH-100A
Couldn't load pickup availability
This product is currently out of stock
👉 If you are ordering an item that is not in stock, please allow 3-4 weeks lead time.
One cable. Power, control, and video — the HD-AVH-100A runs on PoE+ and your Ethernet connection handles all three without complaint. Inside, a 1/2.8-inch progressive CMOS sensor delivers up to 1080p60 with colours and detail that hold consistently across long shoots. HDMI output and network streaming run simultaneously, so you're never choosing between feeding a display on-site or routing a signal across the network — it does both, no configuration gymnastics required.
VISCA-over-IP is baked in natively, meaning remote control and integration with existing control systems just works. The CS-mount lens interface lets you swap glass to match the room — tight install, wide coverage, whatever the space actually needs. And the housing itself is compact enough to fit where full-size cameras won't, rugged enough to stay there without needing attention.
Activate the optional Dante AV-H license and the camera slides straight into your Dante-enabled network — scalable, clean, no friction. Designed for studios, venues, and fixed installations where dependability isn't optional, the HD-AVH-100A is straightforward to deploy and built to run long-term without drama.
Capabilities and Functions
HD-AVH-100A Features & Specifications
HD-AVH-100A Product Features
1080p 1/2.8" Progressive Scan CMOS sensor capable of capturing up to 60fps over Dante® AV-H, HDMI, and IP streams simultaneously
First-ever Dante® Ready POV camera, enabling easy video integration into Dante AV-H workflows with a simple license activation
Supports multiple IP streaming protocols, including RTSP, RTMP, and SRT
Flexible CS mount lens for customizable field-of-view options
Compact, lightweight design-ideal for fixed installs, live events, and mobile production setups
PoE+ built-in for streamlined power and data over a single cable
Rugged and versatile form factor with ¼"-20 mounting thread for easy integration into any setup
HD-AVH-100A Technical Specifications
Video
Image Sensor: 1/2.8" Progressive CMOS
Effective Pixels:
- Horizontal: 1920
- Vertical: 1080
Pixel Size: 2.9µm (H) x 2.9µm (V)
Resolution: 1080p, 1080i, 720p
Resolution Rate:
- 1080: 60p/59.94/50p/30p/25p/24p
- 1080: 60i/59.94i/50i
- 720: 60p/59.94p/50p
Output: DANTE AV-H (purchase through Dante® Activator)/HDMI/IP
Color Space: 4:2:2 (YCbCr) 10bit
Min Illumination: 0.2Lux (day), 0.1Lux (Night)
White Balance: Auto & Manual (9000 - 11,000 K)
Lens
Module: 5MP 4mm CS Mount Lens
HFOV: 72°
Audio
Audio Embed: Embed over IP streams ONLY
Input: 3.5mm Line Input
Standard
Control Protocol: Serial VISCA, VISCA over IP
Physical
Camera Control Protocol: RS485, RJ45
Operation Temp: 32°F - 104°F
Dimension: 3.19" x 1.97" x 1.97"
Weight: 1lb
Power: 12VDC (+9VDC - +15VDC)(PoE+ with Adapter)
Would you like more information on the HD-AVH-100A?
For more indepth information, please download the HD-AVH-100A product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
