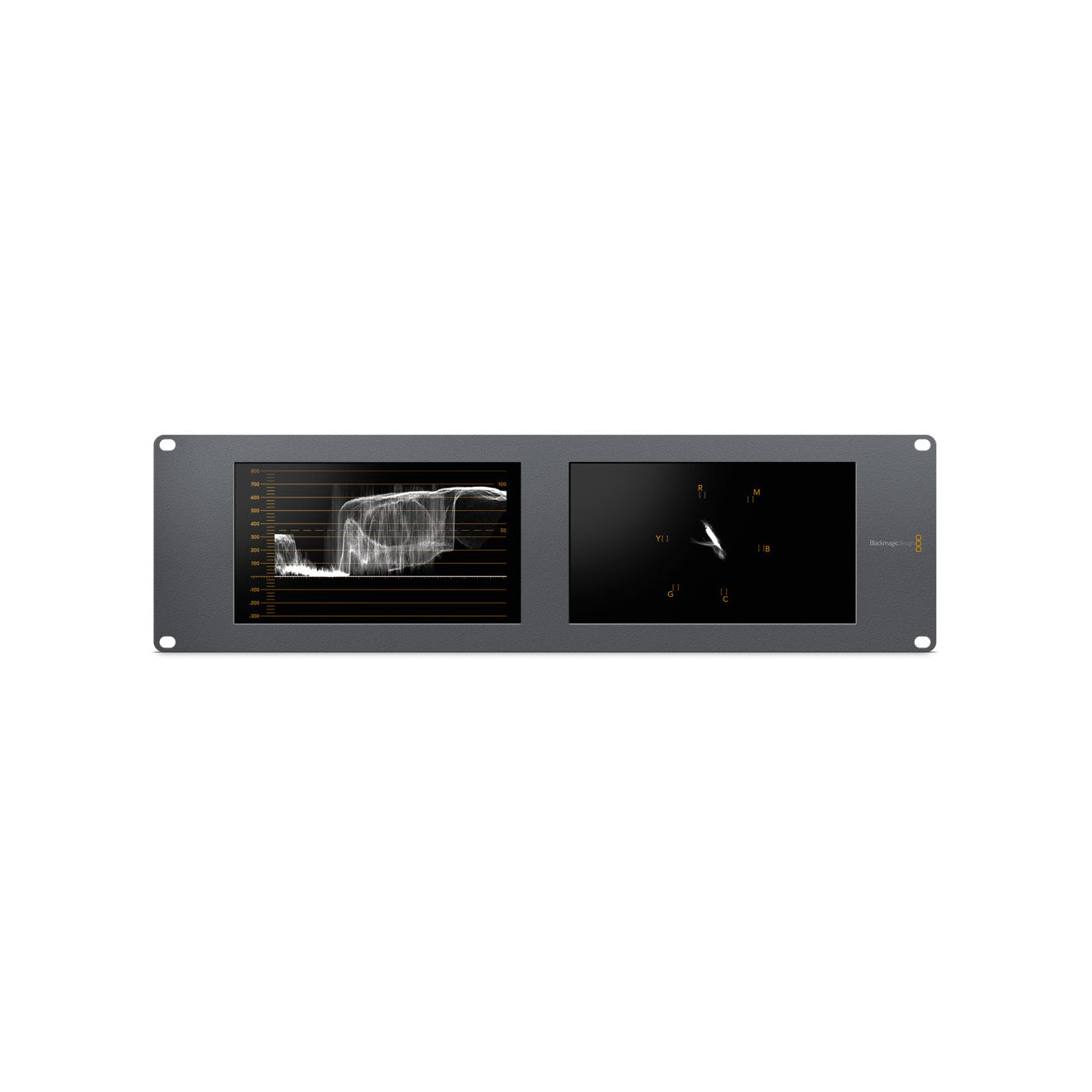

Black Magic HDL-SMTVDUO2 SmartView Duo 2 SDI/HD-SDI/3G-SDI Monitor
The Black Magic SmartView Duo 2 Monitor is an ideal solution for high-quality SDI monitoring, whether you’re in a broadcast environment or on the go. This monitor features two independent 8-inch displays, offering a slim and lightweight design that seamlessly switches between SD, HD, and 3G-SDI video formats. Its versatility makes it perfect for a variety of uses, including broadcast, post-production, on-set monitoring, and more.

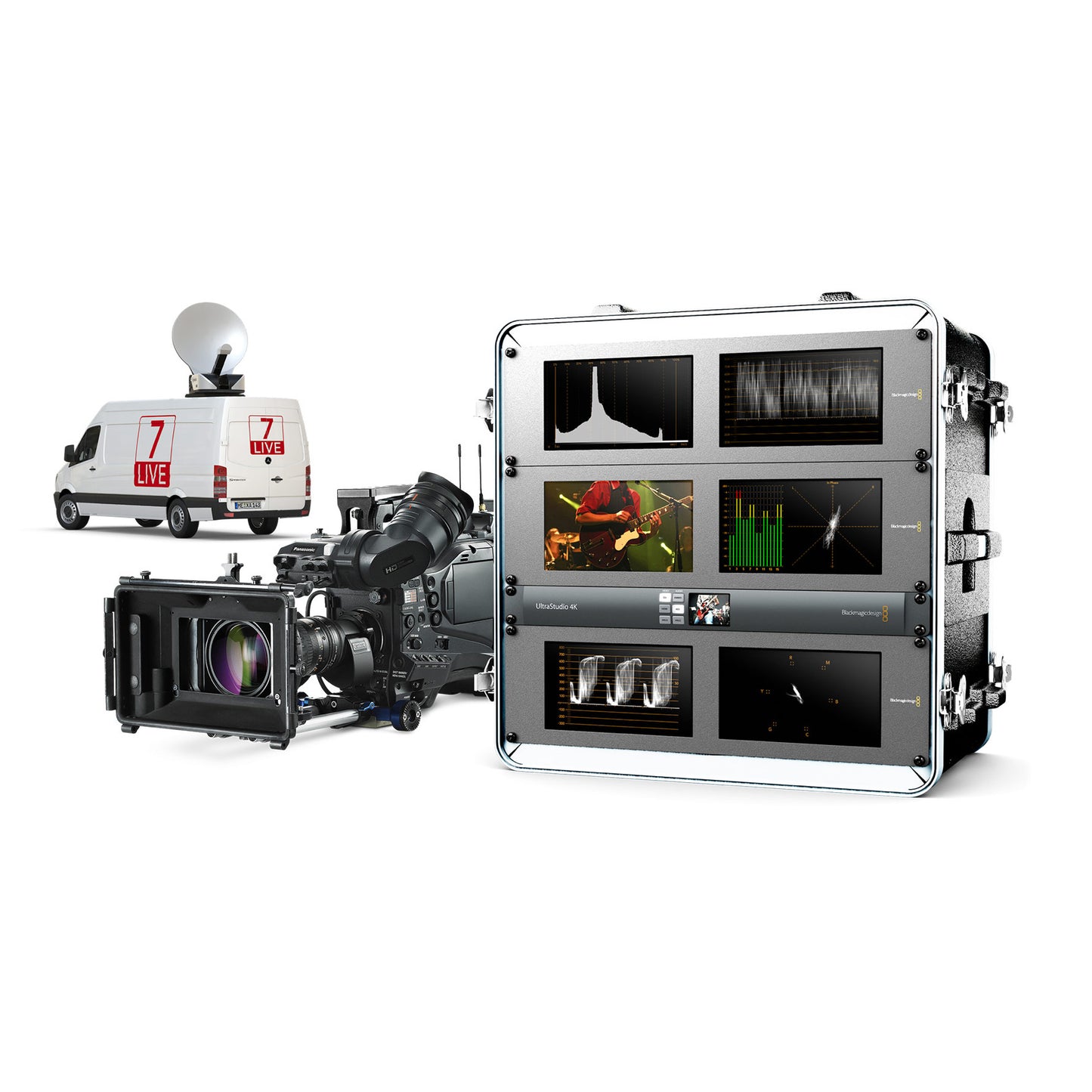

SmartView Duo 2 can be easily integrated into a video wall setup, allowing you to monitor multiple camera sources in a control room. Whether you’re building a custom monitoring rack or need a portable option for live production, the SmartView Duo 2 delivers reliable performance and flexible configuration options, ensuring you can see your images with precision and clarity.
CONTACT US for a demonstration or more information.
Main Features
- Dual 8-inch independent displays
- Slim and lightweight design
- Automatic switching between SD, HD, and 3G-SDI video formats
- Ideal for broadcast, post-production, on-set monitoring, and live production
- Flexible configuration for custom monitoring setups
- Perfect for use in control rooms, flyaway kits, and broadcast trucks
Specifications
- SDI Video Input: Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.
- SDI Video Output: 1 x 10 bit loop through SD, HD and 6G-SDI switchable.
- SDI Audio Input: 16 channels embedded in SD, HD and UHD.
- SDI Audio Output: 16 channels embedded in SD, HD and UHD.
- Multi Rate Support: Standard definition SDI, high definition SDI and 6G-SDI.
- Tally: 9-pin D connector
- SD Format Support: 525i29.97 NTSC, 625i50 PAL
- HD Format Support:
- 720p50, 59.94, 60
- 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1080PsF23.98, 24, 25, 29.97, 30
- 1080i50, 59.94, 60
- 2K Format Support:
- 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
- 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Format Support: 2160p23.98, 24, 25, 29.97, 30
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
- Audio Sampling: Television sample rate of 48KHz
- Video Sampling: 4:2:2 and 4:4:4
- Colour Precision: 8-bit
- Colour Space: YUV and RGB
- Computer Interface: USB 2.0 for software updates and Ethernet for configuration
- Colourspace Conversion: Hardware-based in real-time.
- Scopes: Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level.
- Software Included: Configuration utility for MAC and Windows.
- Internal Software Upgrade: Via included firmware updater software.
- Physical Installation: 3RU
- Power Supply: 12V universal power supply included with international socket adapters for all countries.
- Power Consumption: < 20 Watts
- Operational Voltage Range: 12V - 15V
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
