Blackmagic Decklink Quad 2
Blackmagic Decklink Quad 2
SKU:RIE-9301837

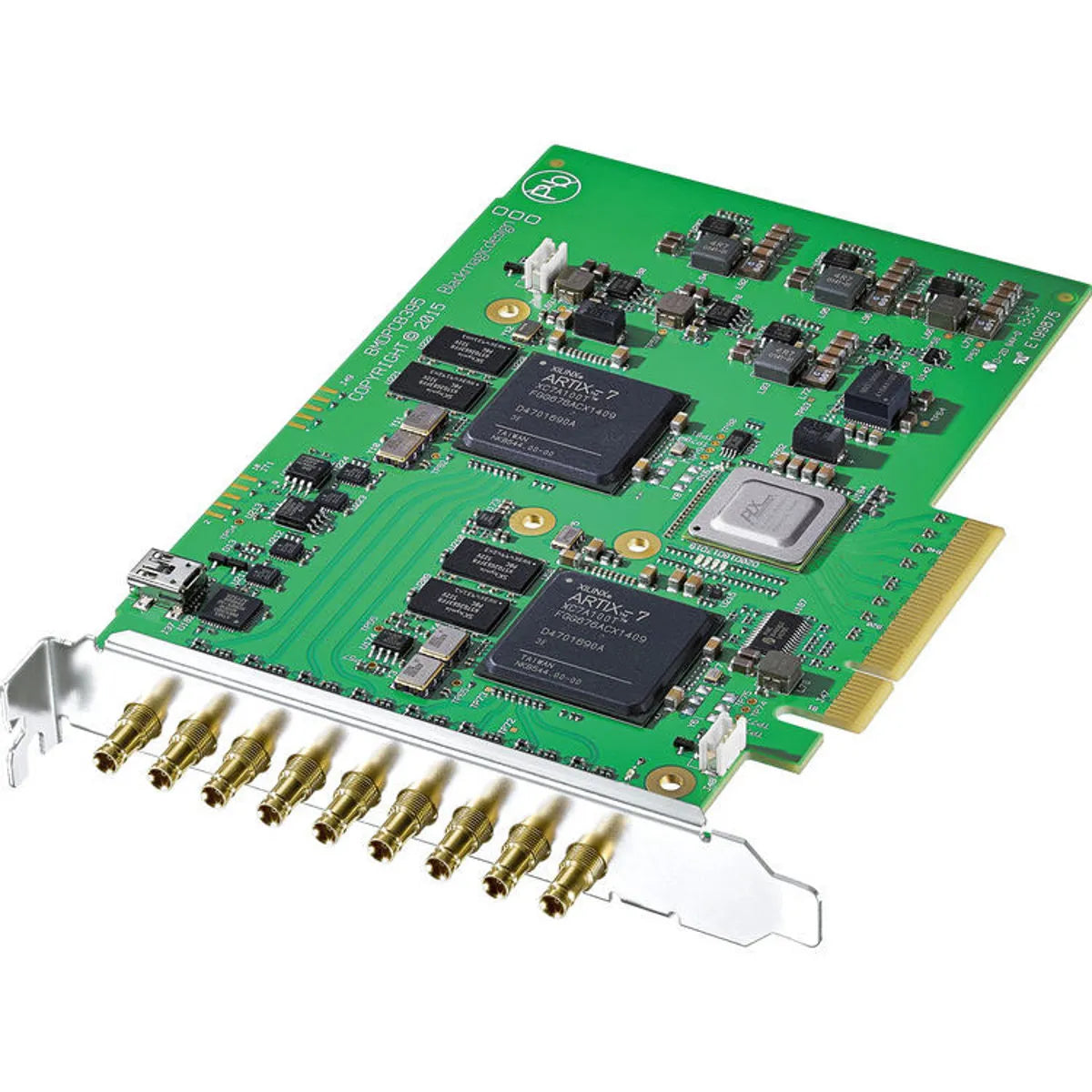

Contact Us to OrderThe Blackmagic DeckLink Quad 2 (Part No. 9301837) is a high-performance PCIe capture and playback card built for advanced live video production and broadcast workflows. Featuring eight independent 3G-SDI connections, the card can be configured in software as either inputs or outputs, giving production teams the flexibility to manage multiple video streams from a single system. This makes it particularly well suited for multi-camera capture, live switching systems, playback servers, and complex streaming environments where reliability and scalability are essential.
Designed for professional studios and live event production setups, the DeckLink Quad 2 integrates smoothly with industry-standard broadcast and post-production software. Its efficient architecture allows users to handle multiple channels of SD and HD video simultaneously, making it a practical solution for expanding video infrastructure without adding unnecessary hardware. For production teams looking to streamline multi-channel workflows, the DeckLink Quad 2 offers dependable performance in demanding broadcast and live production applications.
Capabilities and Functions
Blackmagic Decklink Quad 2 Features & Specifications
Blackmagic Decklink Quad 2 Product Features
Capture up to 8 channels of 3G-SDI video with this versatile video capture card.
Enjoy low latency with 8 bidirectional 12-bit SD/HD SDI inputs/outputs for flexible workflows.
Cross-convert 720HD to 1080HD (or vice versa) during playback with built-in hardware.
Achieve stable streaming using SMPTE compliant SDI inputs, ensuring broadcast-quality video.
Easily integrate into your existing setup with PCIe compatibility for Mac, Windows, and Linux.
Record uncompressed 10-bit 4:2:2 or 4:4:4 video, perfect for professional video capture projects.
Blackmagic Decklink Quad 2 Technical Specifications
Configurable eight bidirectional SD/HD/3G-SDI connectors for 1080p60 capture or playback
Compatible with Mac, Windows, Linux, and major video editing/broadcast software
Includes Blackmagic Media Express for media capture, organization, and management
Each SDI port can operate on a different video standard for flexibility
Supports uncompressed 10-bit 4:2:2 and 4:4:4, compressed ProRes and DNxHD
Up to 16 channels of embedded audio per input/output
Supports AVC-Intra, AVCHD, Apple ProRes, DNxHR and other codecs
Cross-conversion and upconversion between 720p, 1080p, and SD during capture
