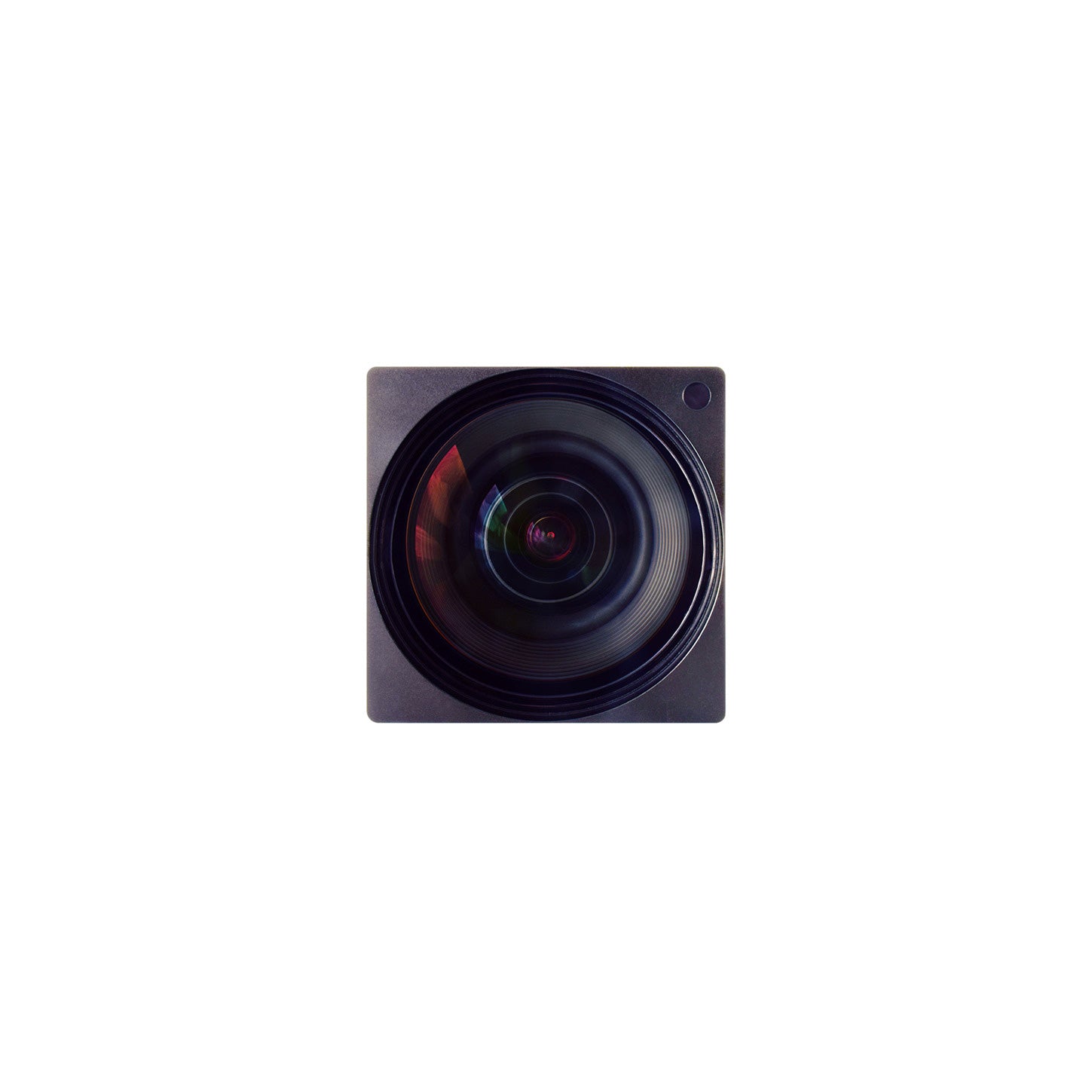

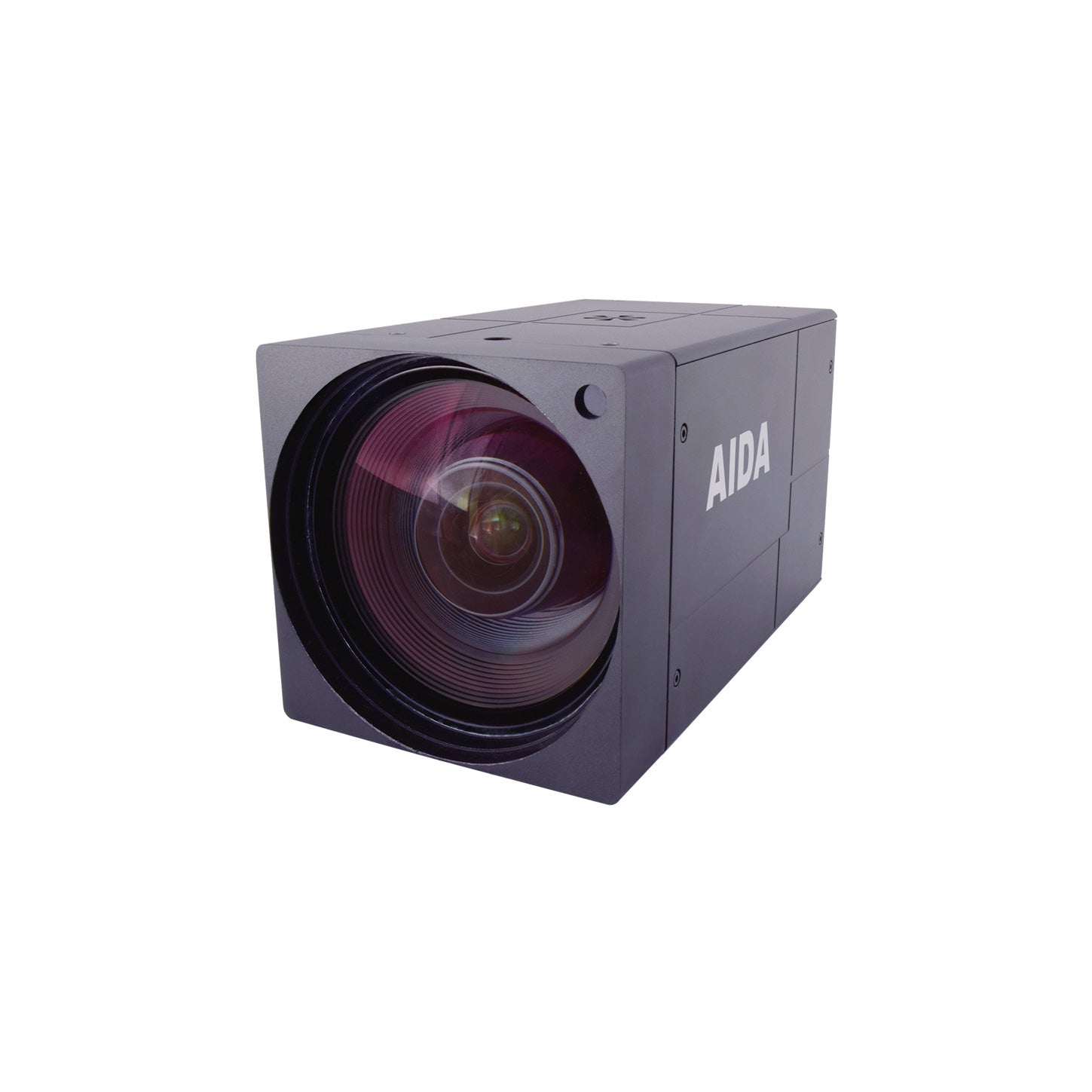

Aida UHD6G-X12L 4K/UHD 6G-SDI POV Camera
The UHD6G-X12L is a professional 4K POV camera solution that houses a superior 12X 4K lens zoom module. Powered by a back-illuminated pixel technology, the UHD6G-X12L realizes true cinema quality 4K image with wide dynamic range and enhanced imaging characteristics, i.e. sensitivity and greatly reduced noise under low light conditions. The UHD6G-X12L is robust in its features with expanded control sets via VISCA protocol, audio, and dual video (6G-SDI & HDMI 1.4) output. Designed for versatility, durability, and cost-effectiveness for smooth integration into any broadcast, professional, or corporate AV environment.
CONTACT US for a demonstration or more information.
CLICK HERE to download the product brochure.
Main Features
- 4K 1/1.7 Progressive Scan CMOS sensor capable of 4K (4096 x 2160) captures sharp and vivid images even under very low light conditions.
- Power by a back-illuminated pixel technology.
- Superior 4K 12X optical zoom.
- Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
- Superb motion-compensated temporal noise reduction filter for motion video without blurring.
- OSD control breakout cable with two audio inputs and RS-485 for remote communication.

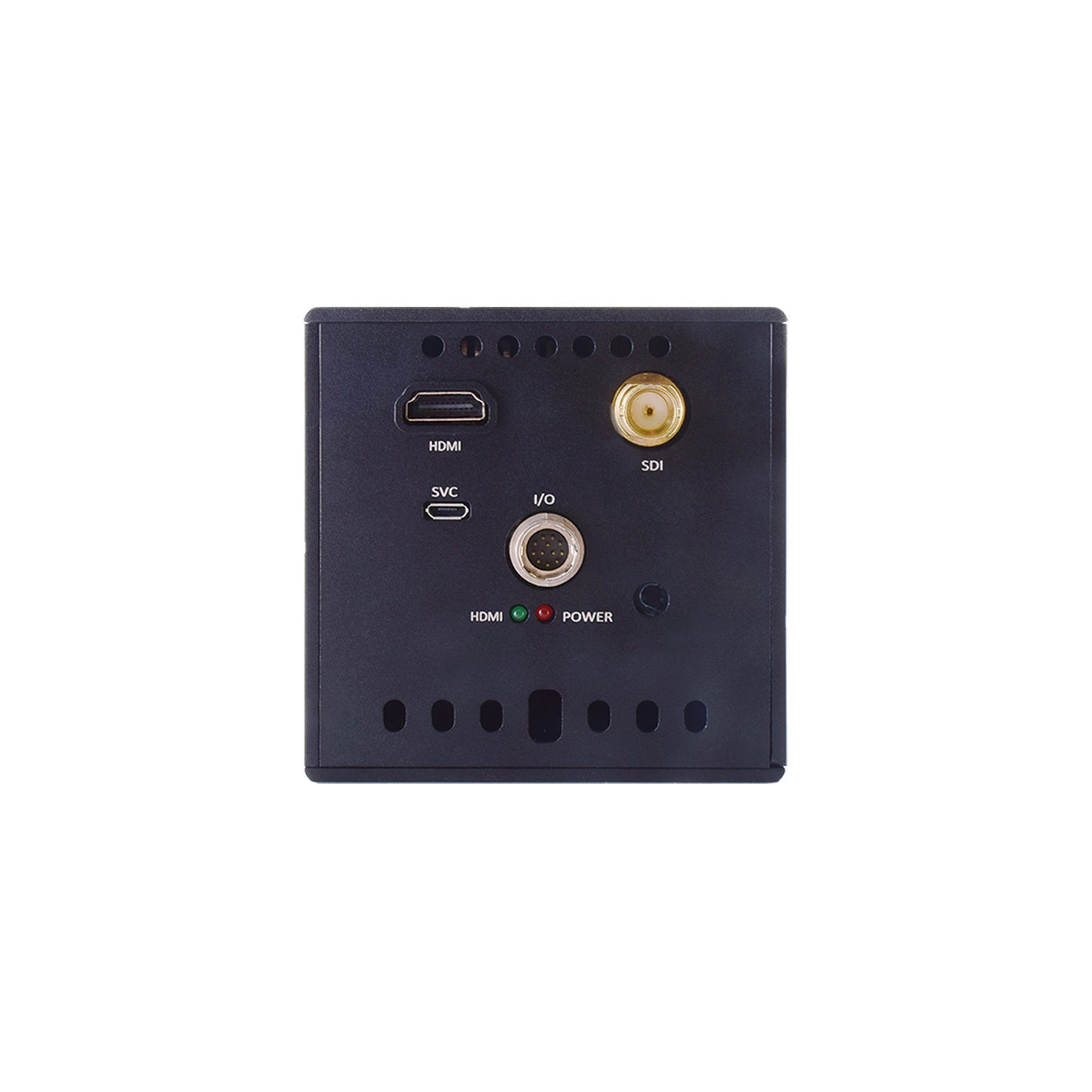

- Dual video simultaneous output interfaces 6G-SDI & HDMI.
- Flawlessly relays multi-channel embedded audio via 6G-SDI & HDMI.
- Perfectly suited for broadcast, pro audio/video, and security.
- Conforming with SMPTE 292M, 424M and 2081-10.
- Versatile, compact, and rugged design.
Specifications
Video
- Image Sensor: 1/1.7” Progressive CMOS
- Sensor Size: Diagonal 9.93mm(17:9)
- Effective Pixels: Horizontal: 4096, Vertical: 2160
- Pixel Size: 1.85 μm (H) x 1.85 μm (V)
- Resolution: 24096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720
- Resolution Rate:
- 4K (4096 X 2160) 30/29/25/24p/ 2160 30/29.97/25/24p
- 1080p 60/59.94/50/30/ 29.97/25p/24p
- 1080i 60/59.94/50i
- 720 60/59.94/50/30/25p
- Output: HDMI 1.4, HD/3G/6G-SDI (BNC)
- Colour Space: 4:2:2 (YCbCr) 10bit
Function
- White Balance: AWB / AE / AF
- Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
- Other: WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection
Lens
- Lens: 12X UHD Optical Zoom Lens, 4.2mm/82° (Wide) ~ 50.04mm/8° (Tele), F1.8 (Wide) - F2.8 (Tele)
Audio
- Input: 3.5mm TRS Stereo, Mic-in & Line in over I/O Cable
- Sample Rate: 16/24/32 Bits
Standard
- SMPTE: SMPTE 292M, SMPTE 424M, SMPTE 2081-10
Physical
- Camera Control: RS-486, OSD Button
- Operation Temp: 15°F - 120°F
- Dimensions: 90.20mm x 90.20mm x 156.70mm
- Weight: 600g
- Power: 12VDC (+9 - +15VDC)
