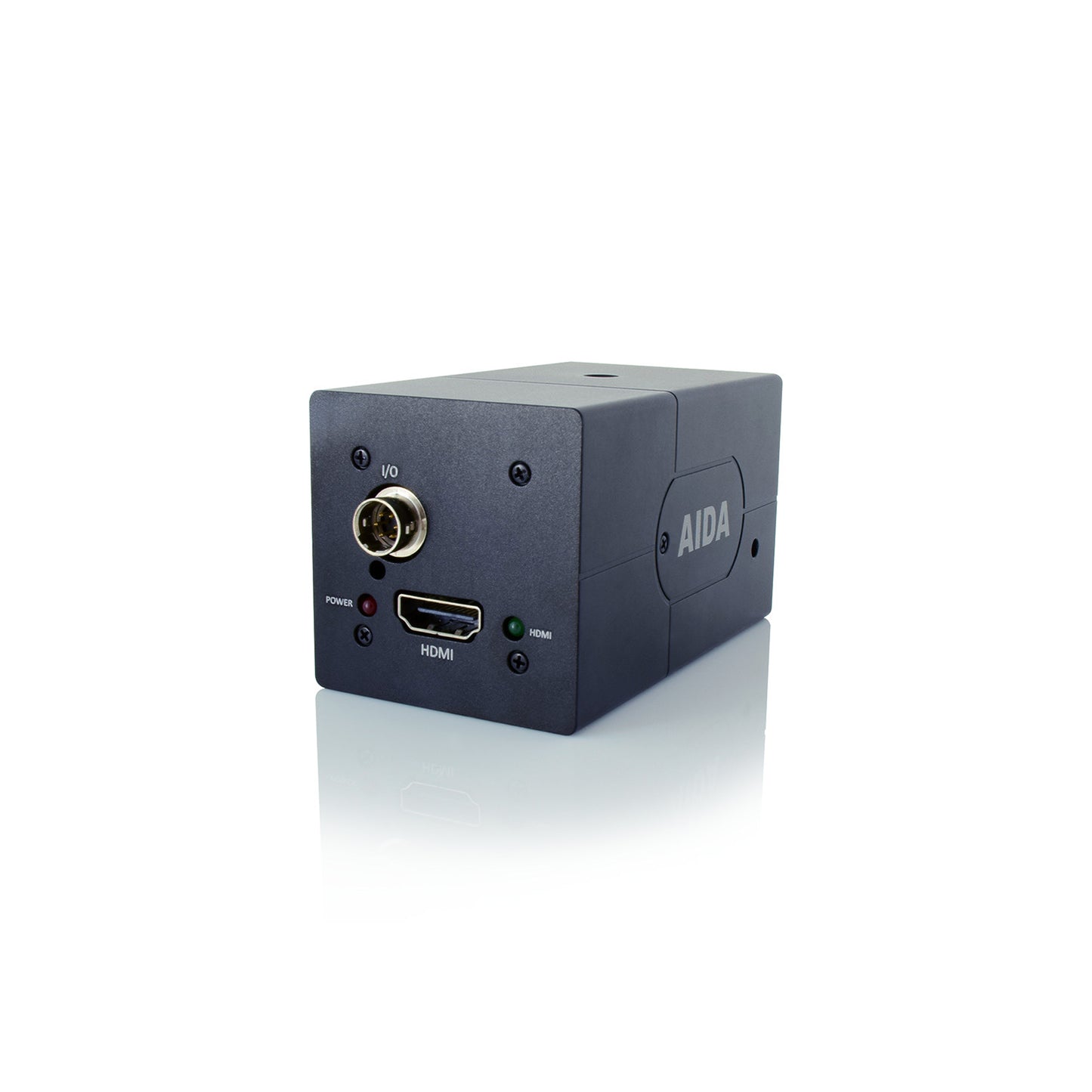

AIDA Micro 4K HDMI POV Camera
AIDA Micro 4K HDMI POV Camera
SKU:AID-UHD-X3L
Couldn't load pickup availability
The UHD-X3L is a professional micro POV camera with 3X optical zoom capabilities. Ideal for wide-angle viewing, the UHD-X3L is robust in its features, integrating 4K UHD Progressive CMOS sensors with a digital image processor to maintain sharpness in quality without compromise.
The UHD-X3L is great under low light conditions with its motion-compensated temporal noise reduction filter. Designed for versatility, durability, and cost-effectiveness for smooth integration into any broadcast, professional, or corporate AV environment.
Capabilities and Functions
Aida UHD-X3L Camera Features & Specifications
Aida UHD-X3L Camera Product Features
'- 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
- 3X optical zoom features 25~78 wide angle of view.
- Built-in zoom lens offers zoom, focus and iris control.
- Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
- Superb motion-compensated temporal noise reduction filter for motion video without blurring.
- OSD control breakout cable with power input and RS-485 for remote communication.
- Perfectly suited for huddle rooms, broadcast, pro audio/video, and security.
- Versatile, compact, and rugged design.
Aida UHD-X3L Camera Technical Specifications
'- Image Sensor: 1/2.5” Progressive CMOS
- Sensor Size: Diagonal 7.20mm
- Effective Pixels: Horizontal: 3840, Vertical: 2160
- Pixel Size: 1.62 μm (H) x 1.62 μm (V)
- Resolution:
- 2160p: 3840 x 2160
- 1080p / 1080i : 1920 x 1080
- 720p : 1280 x 720
- Resolution Rate:
- 4K2160p : 30 / 29.97 / 25 / 24
- 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24
- 1080i : 60 / 59.94 / 50
- 720p : 60 / 59.94 / 50
- Output: HDMI 1.4
- Colour Space: 4:2:2 (YCbCr) 10bit
- White Balance: AWB / AE / AF
- Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
- Other: WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection
- Lens: 3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)
- SMPTE: SMPTE 292M, SMPTE 424M
- Camera Control: RS-485, OSD Button
- Operation Temp: 32°F - 104°F
- Dimensions: 48mm x 48mm x 83.09mm
- Weight: 140g
- Power: 12VDC (+9 - +15VDC)
Would you like more information on the Aida UHD-X3L Camera?
For more indepth information, please download the Aida UHD-X3L Camera product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
