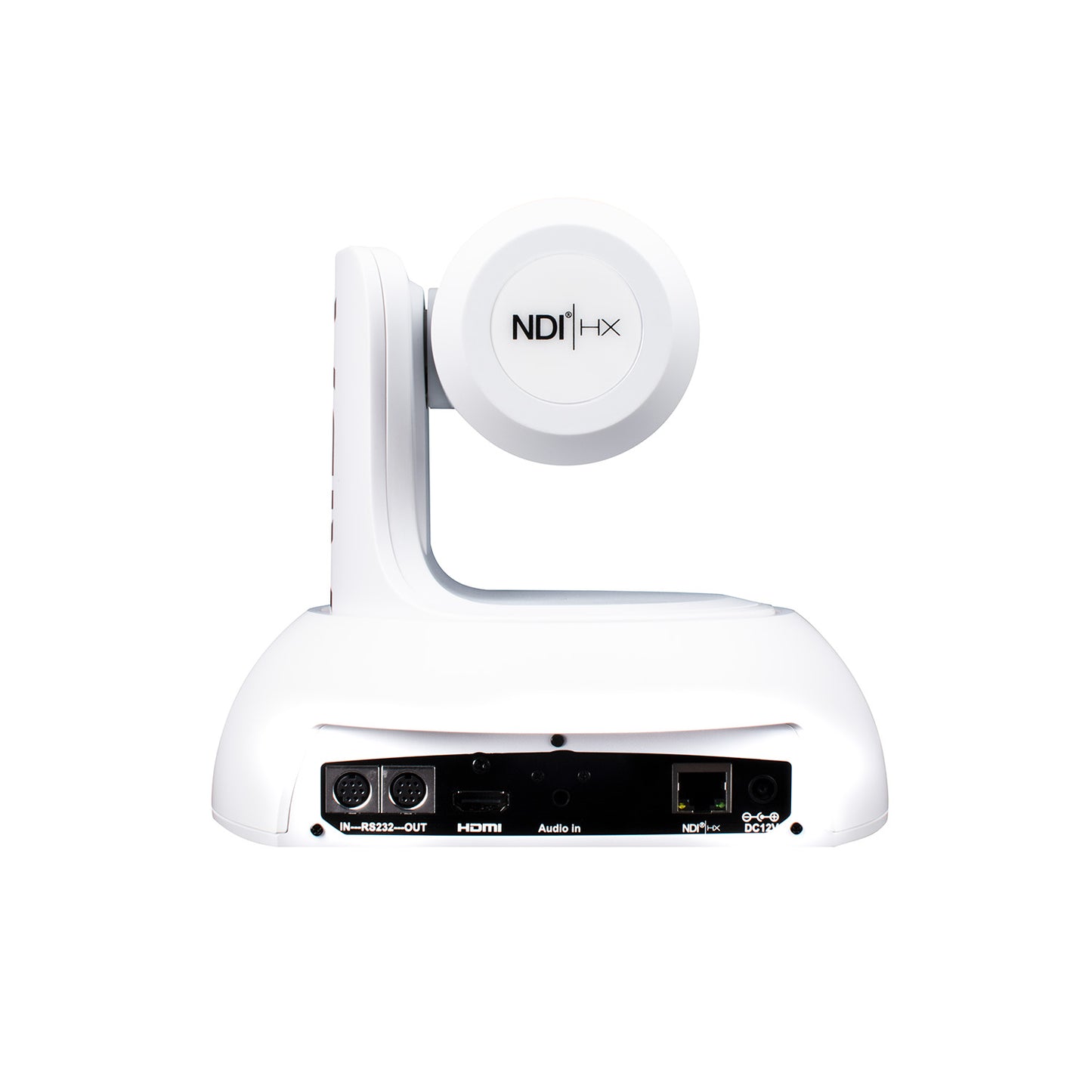

AIDA NDI|HX FHD NDI/IP/HDMI PTZ Camera

AIDA NDI|HX FHD NDI/IP/HDMI PTZ Camera

SKU:AID-PTZ-NDI-X18B

Regular price $1,569.00
Regular price Sale price $1,569.00
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

Colour

The PTZ-NDI-X18B is a game-changing NDI HX PTZ camera that sets a new standard in the industry. It offers a cost-effective solution with impressive features, including an 18x optical zoom and a Sony progressive CMOS sensor for outstanding broadcast quality. The camera allows for simultaneous HDMI and IP streaming, making it ideal for solo streaming. It integrates seamlessly, operates silently, and includes a discreet tally light. With various control options, a wide zoom range, PoE+ capability, and support for multiple streams, this PTZ-NDI-X18B camera is a versatile and powerful choice. Additionally, it comes in black or white to match any aesthetic.

View full details

Capabilities and Functions

Aida PTZ-NDI-X18 Camera Features & Specifications

Aida PTZ-NDI-X18 Camera Product Features

'- Capable of NDI® HX streaming, enabling low-latency video streaming and PTZ control.
- The Full HD Progressive Scan sensor excels at capturing vivid and sharp colours even in varying light conditions.
- With an advanced digital image processor, this camera delivers vibrant and detailed images while providing full access to a wide range of feature sets.
- Using a motion-compensated temporal noise reduction filter, this camera achieves effective noise reduction for motion video while maintaining clarity without blur.
- Experience versatility and seamless video performance thanks to simultaneous IP and HDMI outputs.
- 18x power optical zoom capability.
- 3.5mm line-in for no audio/video delay over IP/NDI protocols.
- Customisable image settings thanks to built-in OSD controls.
- White or black colour options.

Aida PTZ-NDI-X18 Camera Technical Specifications

VIDEO
- Image Sensor: 1/3” Progressive CMOS
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.13 μm (H) x 2.13 μm (V)
- Resolution: 1080p & 1080i: 1920 x 1080
- Resolution Rate:
- 1080 60p/59.94p/50p/30p/29.97p/25p 24p/23.98p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p/30p/29.97p/25p
- Output: HDMI, NDI® HX / RTSP / RTMP / SRT
- Color Space: 4:2:2 (YCbCr) 10bit
- Min. Illumination: 0.1Lux

FUNCTION
- White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
- Focus: Auto, Manual
- Shutter Speed: 1 to 1/10,000 Sec.

LENS
- Lens: 18X HD Optical Zoom 5.2~93mm
- F-Stop: F1.5 ~ F3.0
- Viewing Angle: 60° (wide) ~ 4° (tele)

PTZ
- Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
- Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s
- Presets: 128 Positions (via web) 10 Positions (via remote)

STANDARD IP Protocol
- IP Protocol: UDP/IP, RTSP/RTMP

AUDIO
- Input: 3.5mm TRS Stereo Audio Port
- Sample Rate: 16/24/32 Bits

PHYSICAL
- Camera Control: Protocol: VISCA, VISCA over IP, NDI Interface: RS-232C IN & OUT, RJ-45 Remote Controller
- Operation Temp: 32°F - 104°F
- Dimension: 155mm x 160m x 170mm / 6.10” x 6.92” x 6.69”
- Weight: 1.35kg / 2.97lbs
- Power: 12VDC (+9 - +15VDC), PoE+ (IEEE802.3at Standard Required)
