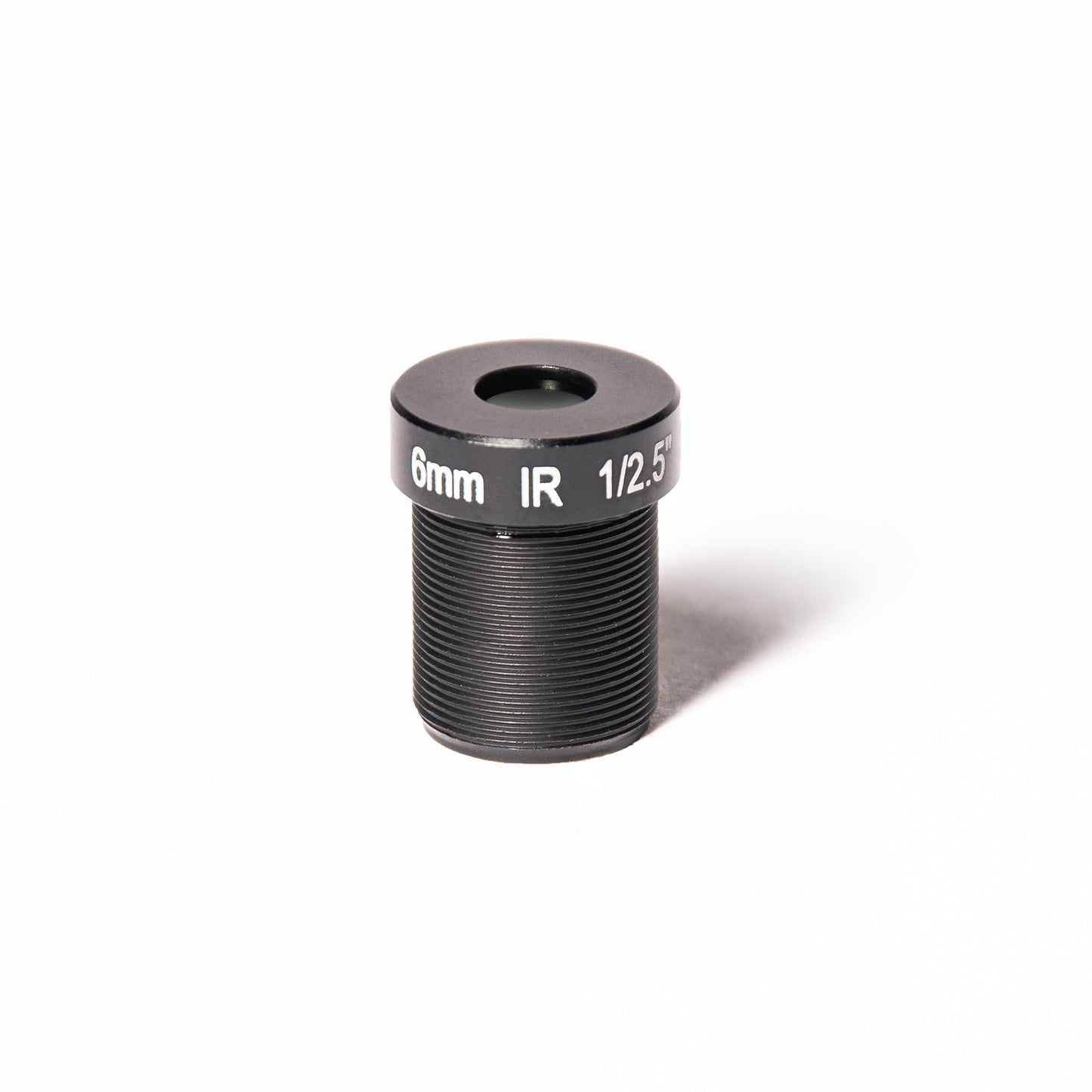

AIDA 6.0mm HD 3MP M12 Mount Lens

AIDA 6.0mm HD 3MP M12 Mount Lens

AID-M12-6.0F

$42.00
$60.00 $42.00
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

Low stock: 2 left

The M12-6.0F lens is specifically designed to enhance the performance of AIDA's HD-NDI-MINI by delivering a narrower horizontal field of view (HFOV) of approximately 60º. It is compatible with any M12-type camera that supports full-HD resolution and possesses a sensor size of 1/2.5 or smaller.

View full details

Capabilities and Functions

Aida 6.0mm Lens Features & Specifications

Aida 6.0mm Lens Product Features

'- Optimised for the HD-NDI-MINI
- M12 mount
- 6mm focal length
- Aperture F2.4
- Horizontal field of view ~60°

Aida 6.0mm Lens Technical Specifications

OPTICAL
- Back Focal Length: 8.1mm
- Focal Length: 6MM
- F-Stop: F2.4
- Focus Operation: Manual
- FOV: 1/2.5” : HFOV 60°, 1/3” : HFOV 52°
- Image Format: Max 1/2.5” Sensor
- Megapixel Count: 3M
- TV Distortion: -20% with 1/25” Sensor

PHYSICAL
- Mount Type: M12
- Operation Temp: -20°C – 60°C
- Dimensions: 45.9mm x 35.4mm
- Weight: 2g
