AIDA Full HD 3G-SDI with IP Control Lipstick POV Camera
AIDA Full HD 3G-SDI with IP Control Lipstick POV Camera
SKU:AID-HD3G-IPC-MINI
Couldn't load pickup availability
In an industry where SDI infrastructure remains a cornerstone due to its uncompressed video quality and low latency, the Aida HD3G-IPC-MINI Lipstick Camera brings a modern update to your broadcasting setup. This compact camera, part of the SDI-IPC series, is designed to enhance your POV SDI workflows with top-quality Sony CMOS Imaging Sensors, versatile form factors, and the convenience of VISCA over IP communication.

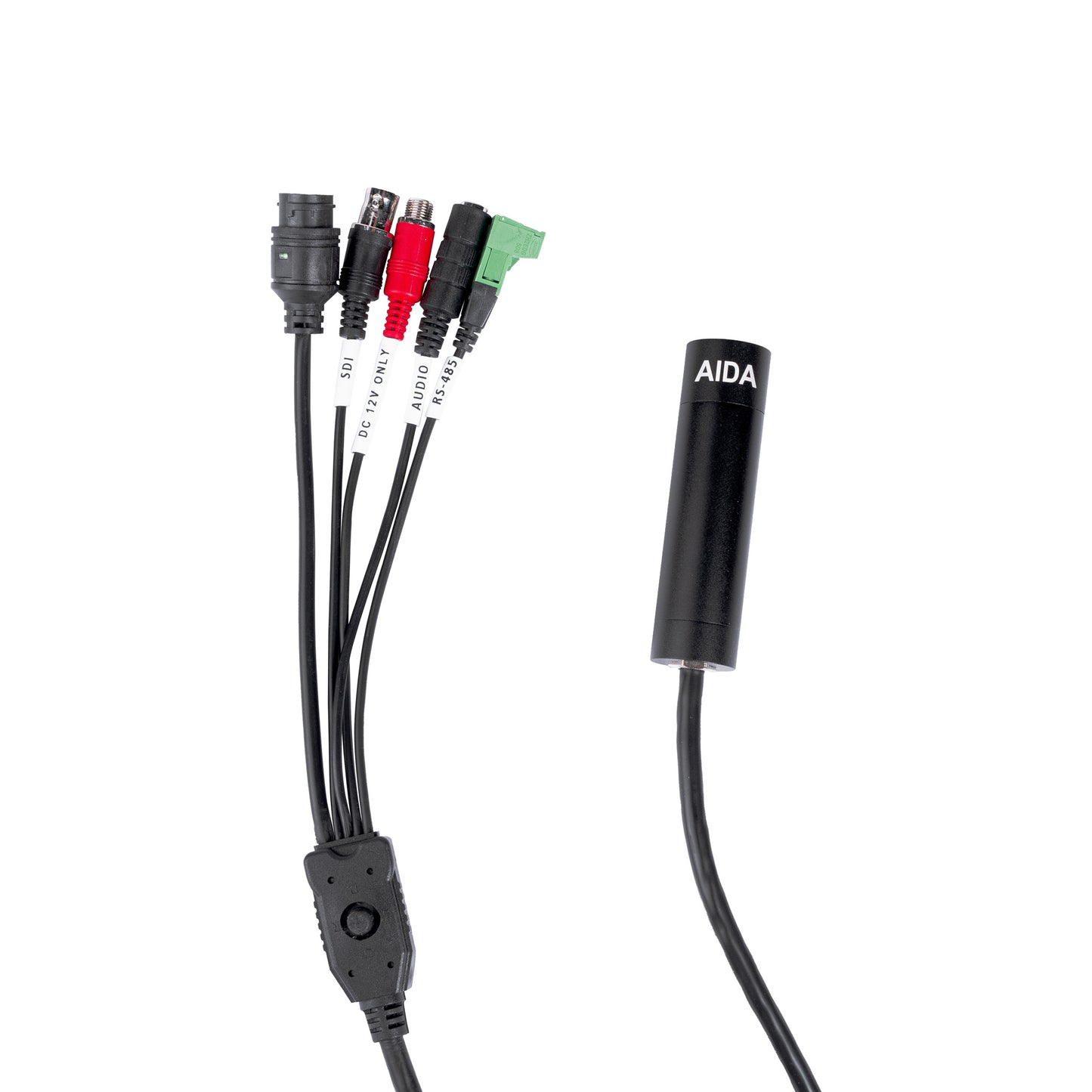

The HD3G-IPC-MINI features a robust 3G-SDI output and is IP67-rated for weatherproof streaming, making it perfect for various environmental conditions. Its M12 mount interchangeable lens system allows for flexibility, accommodating lenses with a 3.6mm or larger size. The camera includes 3ft cabling to protect inputs and a 1/4 20‚ mounting on the bottom, ensuring secure and straightforward installation. As the smallest form factor in the series, the HD3G-IPC-MINI is ideal for discreet and unobtrusive use, providing reliable performance in a compact package.
With VISCA over IP communication, you can eliminate serial wiring and streamline your setup, managing video, control, and power through just two cables. Enhance your broadcasting capabilities with the Aida HD3G-IPC-MINI Lipstick Camera, the perfect blend of size, durability, and advanced technology.
Capabilities and Functions
Aida HD3G-IPC-MINI Camera Features & Specifications
Aida HD3G-IPC-MINI Camera Product Features
'- Full-HD 1/2.8” Sony Progressive Scan CMOS sensor capable of 1080 60p through 3G-SDI
- VISCA over IP compatible for hardware and software solutions using that protocol. (VISCA UDP, SONY VISCA over IP)
- Versatile designs with tripod mounts for easy and unique shot creation.
- PoE+ adaptable with adapter (comes with purchase of the camera)
- Variants for weatherproofed cameras, capable of IPV54 and above rating.
- CS-mount lens, M12 mount lens, and varifocal weatherproof options available.
- Small form-factor and rugged designed makes all video streaming applications possible
- Perfectly suited for indoor or outdoor shots for new or existing workflows.
- Fits any C or CS Mount Inter- changeable lens
- Standard discreet POV look -1/4 20” mounting on top and bottom
Aida HD3G-IPC-MINI Camera Technical Specifications
'- Image Sensor: 1/2.8” Progressive CMOS
- Sensor Size: 5.640mm x 3.216mm (16.9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.9 μm (H) x 2.9 μm (V)
- Resolution:
- 1080p, 1080i, 720p
- 1080 60p/59.94/50p/30p/29.97p/25p 24p
- 1080 60i/59.94i/50i 720 60p/59.94p/50p
- Output: 3G-SDI
- Colour Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 - 11,000 K)
- Audio Input: 3.5mm TRS Stereo Input, Embed over SDI
- Lens: M12 mount 3.6mm Lens HFOV: 92°
- Camera Control: Protocol: VISCA Over IP
- Operation Temp: -10°C~50°C
- Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
- Power Draw: 6W MAX
Would you like more information on the Aida HD3G-IPC-MINI Camera?
For more indepth information, please download the Aida HD3G-IPC-MINI Camera product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
