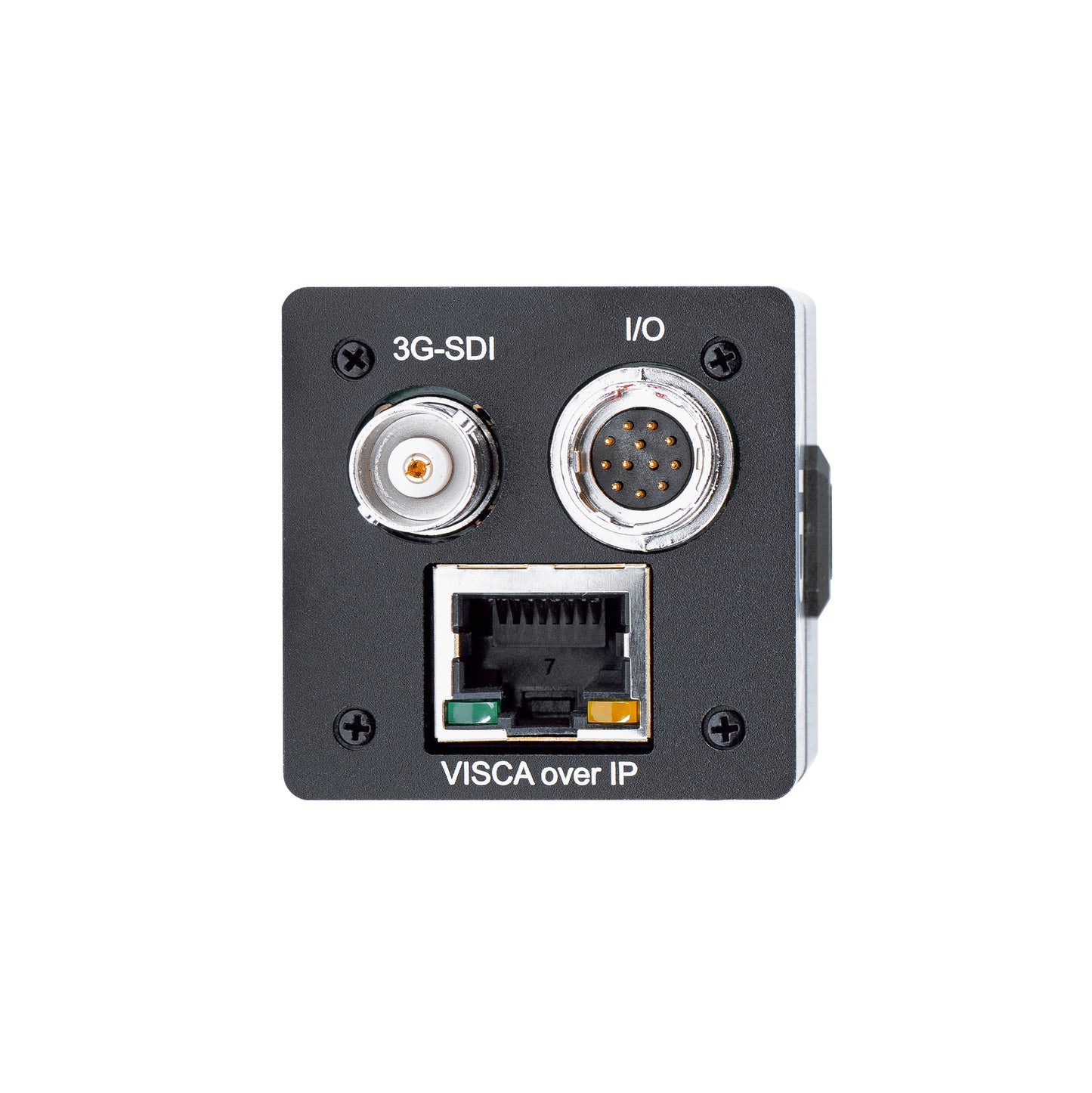

AIDA Full HD 3G-SDI with IP Control POV Camera
AIDA Full HD 3G-SDI with IP Control POV Camera
SKU:AID-HD3G-IPC-100A
Couldn't load pickup availability
The broadcasting industry continues to rely on the robustness of SDI infrastructure for its uncompressed video quality and low latency video processing. Embrace the future with an update to your SDI setup using the Aida HD3G-IPC-100A camera. This camera is part of the SDI-IPC series, designed to enhance existing POV SDI workflows with high-quality Sony CMOS Imaging Sensors, versatile form factors, and VISCA over IP communication for ease of use.
The HD3G-IPC-100A comes with a 3G-SDI output, allowing you to enjoy full and drop frames that meet SMPTE 292M and SMPTE 424M requirements effortlessly. Its interchangeable optics offer unlimited freedom with CS-mount lenses, making it adaptable to various shooting conditions. The camera can be easily mounted using the 1/4 20" holes on the top or bottom, ensuring convenient placement in any setup. Its standard discreet POV design makes it ideal for various professional broadcasting environments. With VISCA over IP communication, you can say goodbye to serial wiring and simplify your setup with video, control, and power over just two cables. Upgrade to the best all-around camera in the SDI-IPC series with the Aida HD3G-IPC-100A and experience the seamless integration of advanced technology into your broadcast infrastructure.
Capabilities and Functions
Aida HD3G-IPC-100A Camera Features & Specifications
Aida HD3G-IPC-100A Camera Product Features
'- Full-HD 1/2.8” Sony Progressive Scan CMOS sensor capable of 1080 60p through 3G-SDI
- VISCA over IP compatible for hardware and software solutions using that protocol. (VISCA UDP, SONY VISCA over IP)
- Versatile designs with tripod mounts for easy and unique shot creation.
- PoE+ adaptable with adapter (comes with purchase of the camera)
- Variants for weatherproofed cameras, capable of IPV54 and above rating.
- CS-mount lens, M12 mount lens, and varifocal weatherproof options available.
- Small form-factor and rugged designed makes all video streaming applications possible
- Perfectly suited for indoor or outdoor shots for new or existing workflows.
- Fits any C or CS Mount Inter- changeable lens
- Standard discreet POV look -1/4 20” mounting on top and bottom
Aida HD3G-IPC-100A Camera Technical Specifications
'- Image Sensor: 1/2.8” Progressive CMOS
- Sensor Size: 5.640mm x 3.216mm (16.9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.9 μm (H) x 2.9 μm (V)
- Resolution:
- 1080p, 1080i, 720p
- 1080 60p/59.94/50p/30p/29.97p/25p 24p
- 1080 60i/59.94i/50i 720 60p/59.94p/50p
- Output: 3G-SDI
- Colour Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 - 11,000 K)
- Audio Input: 3.5mm TRS Stereo Input, Embed over SDI
- Lens: CS mount 4mm Lens HFOV: 80°
- Camera Control: Protocol: VISCA Over IP
- Operation Temp: -10°C~50°C
- Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
- Power Draw: 6W MAX
Would you like more information on the Aida HD3G-IPC-100A Camera?
For more indepth information, please download the Aida HD3G-IPC-100A Camera product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
