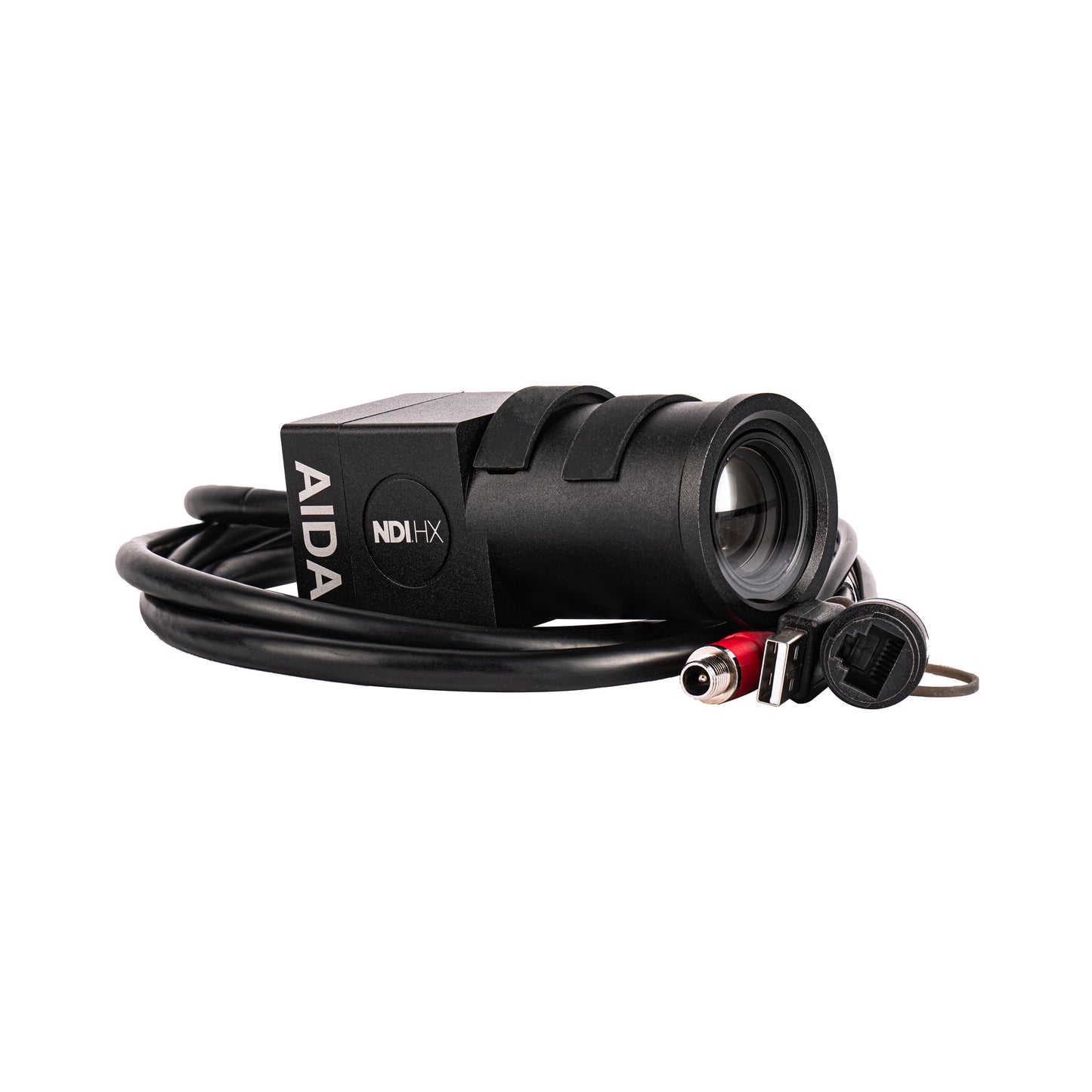

AIDA Full HD NDI|HX/IP/SRT Weatherproof POV Camera with Varifocal Lens
AIDA Full HD NDI|HX/IP/SRT Weatherproof POV Camera with Varifocal Lens
SKU:AID-HD-NDI-TF
Couldn't load pickup availability
The Aida HD-NDI-TF Camera is your ultimate solution for capturing stunning telephoto shots from a safe distance. This uniquely hand-crafted camera is equipped with a powerful 5-50mm telephoto lens, enabling you to cover distances up to 60-80 feet effortlessly.
Built for versatility and durability, the HD-NDI-TF features an IP54 rating, ensuring the camera remains dust and moisture-free. Its robust construction includes a hardened aluminum casing and WP resistant silicon stubs, making it perfect for challenging environments.
Experience the pinnacle of video quality with the HD-NDI-TF’s FULL-HD, hand-crafted 5MP lens, delivering perfectly crisp 1080p video over NDI® and IP. Whether you require NDI® HX, SRT, RTSP, RTMP, or simultaneous streaming capabilities, this camera handles it all with ease.
Designed to surpass expectations, the HD-NDI-TF is a versatile POV camera that enhances your workflow regardless of distance. Its 5MP 5-50mm weatherproof lens adds a level of sophistication, capturing footage up to 60 feet while standing up to the elements.
Capabilities and Functions
Aida HD-NDI-TF Camera Features & Specifications
Aida HD-NDI-TF Camera Product Features
'- Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI® HX Video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- Versatile design with top and bottom tripod mounts for uniques shot creation.
- PoE+ adaptable with adapter (comes with purchase of the camera)
- Custom IP54 rated Varifocal lens providing a FOV of 51° wide, and 6.1° tele to help get that perfect shot.
- Weatherproof rating allows for extra protection against enviromental elements
- Small form-factor and rugged designed makes all video streaming applications possible
- Perfectly suited for outdoor shots any new or existing NDI® HX setup.
Aida HD-NDI-TF Camera Technical Specifications
'- Image Sensor: 1/3” Progressive CMOS
- Sensor Size: 5.346mm x 3.003mm (16:9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.75 μm (H) x 2.75 μm (V)
- Resolution: 1080p, 1080i, 720p
- Resolution Rate:
- 1080 60p/59.94/50p/30p/29.97p/25p/24p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p
- Output: IP (NDI HX/SRT/RTMP/RTSP)
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2 Lux (day), 0.1 Lux (Night)
- White Balance: Auto & Manual (9000 - 11,000 K)
- Lens: 5mm ~ 50mm Custom Lens, FOV Wide: 51° Tele’d: 6.1°
- IP Protocol: UDP IP, RTSP RTMP, SRT, NDI HX
- Camera Control Protocol: VISCA Over IP
- Operation Temp: 32°F - 104°F
- Dimension: 73mm x 41mm x 41mm / 2.86” x 1.61” x 1.61” (With added lens)
- Weight: 454g / 1 lb
- Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
Would you like more information on the Aida HD-NDI-TF Camera?
For more indepth information, please download the Aida HD-NDI-TF Camera product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
