AIDA GEN3G-IPC-200 Genlock POV Studio Camera
AIDA GEN3G-IPC-200 Genlock POV Studio Camera
SKU:AID-GEN3G-IPC-200
Couldn't load pickup availability

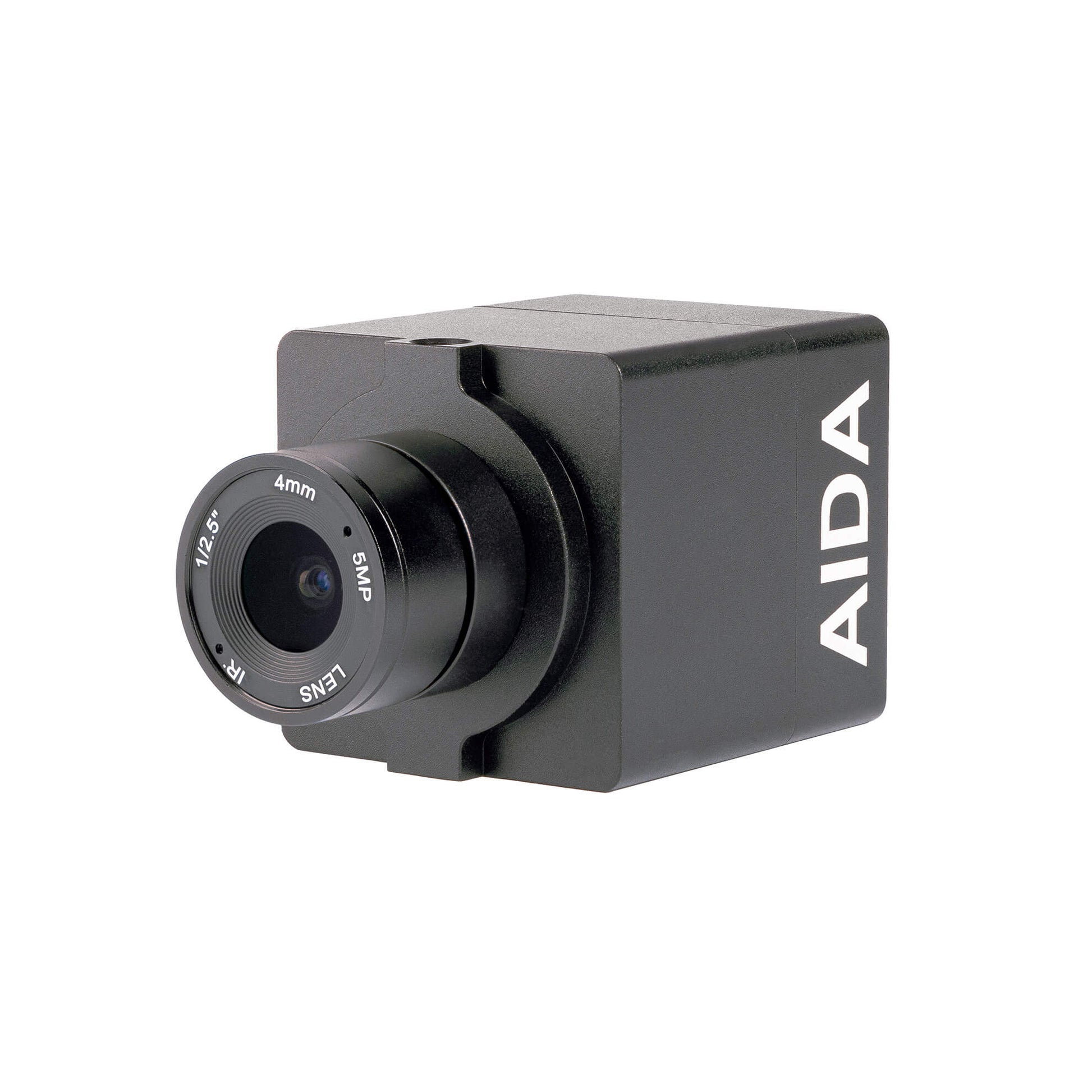

Looking for a rock-solid, genlockable POV solution? Meet the AIDA GEN3G-IPC-200! Building on the legacy of the Aida broadcast-proven GEN3G-200, we've supercharged this camera with an upgraded Sony CMOS sensor, enhanced optics, and seamless VISCA over IP control – all while keeping the same MSRP. Sync effortlessly to any Tri-Level Sync Generator, like the TGEN-6P, and experience unwavering stability for all your broadcast needs. The GEN3G-IPC-200 delivers the dependable genlock you trust, now with next-level performance and control. Stay locked IN and continue the legacy!
What's in the box:
- I/O Breakout Cable
- 4mm Megapixel Lens (pre-installed)
- DC 12v Power Supply & Sockets Adapter
- C-Mount Cap Adapter
- Sensor Cap
- PoE Dongle Adapter
Capabilities and Functions
Aida GEN3G-IPC-200 Camera Features & Specifications
Aida GEN3G-IPC-200 Camera Product Features
- Full HD Progressive Scan sensor captures sharp and vivid colour under different light conditions.
- Advanced digital image processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
- Tri level sync Gen-lock synchronizes GEN3G cameras and other system components for seamless vertical interval switching between sources.
- 3G/HD-SDI & HDMI seamless video performance.
- Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.
- Self-Adaptive Resolution Feature captures your reference
feed instantly.
- Black Level Set-up provides the better color transition from digital to analog.
- VISCA over IP enabled to allow for easier communication over ethernet wire, as well as traditional RS485 communication.
- Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses.
- Flawlessly relays embedded audio via SDI & HDMI.
- Controllable camera parameters through our free AIDA IPC Program.
- Versatile, compact, and rugged design.
Aida GEN3G-IPC-200 Camera Technical Specifications
- Image Sensor: 1/2.8 inch Progressive CMOS
- Sensor Size: 5.641mm x 3.216mm (16:9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size 2.9 μm (H) x 2.9 μm (V)
- Resolution: 1080p & 1080i: 1920 x 1080, 720p & 720i: 1280 x 720

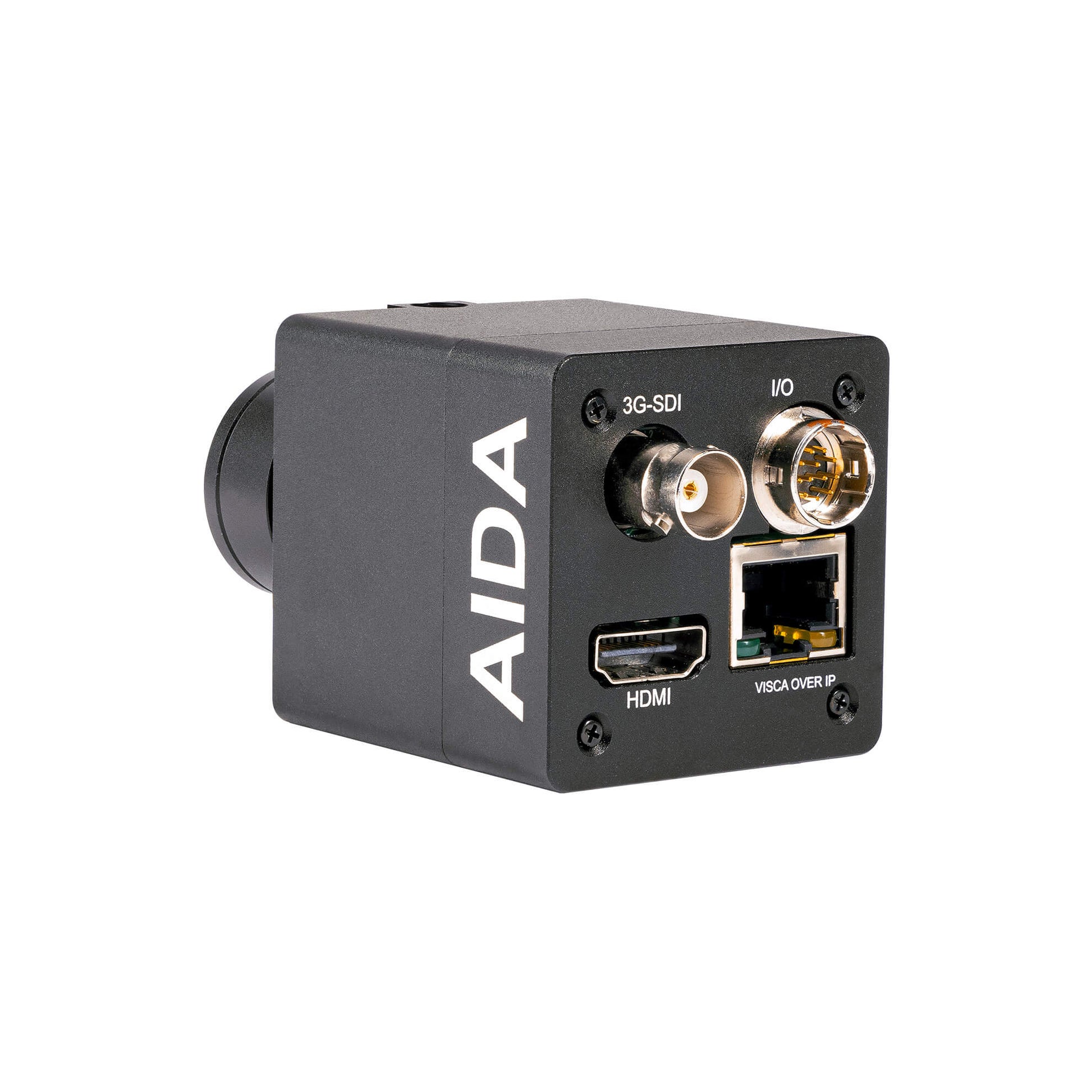

- Output: HD-SDI/3G-SDI (1BNC), HDMI 1.3a
- Colour Space: 4:2:2 (YCbCr) 10bit
- Min. Illumination: 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
- White Balance: Auto & Manual (9,000 K - 11,000 K)

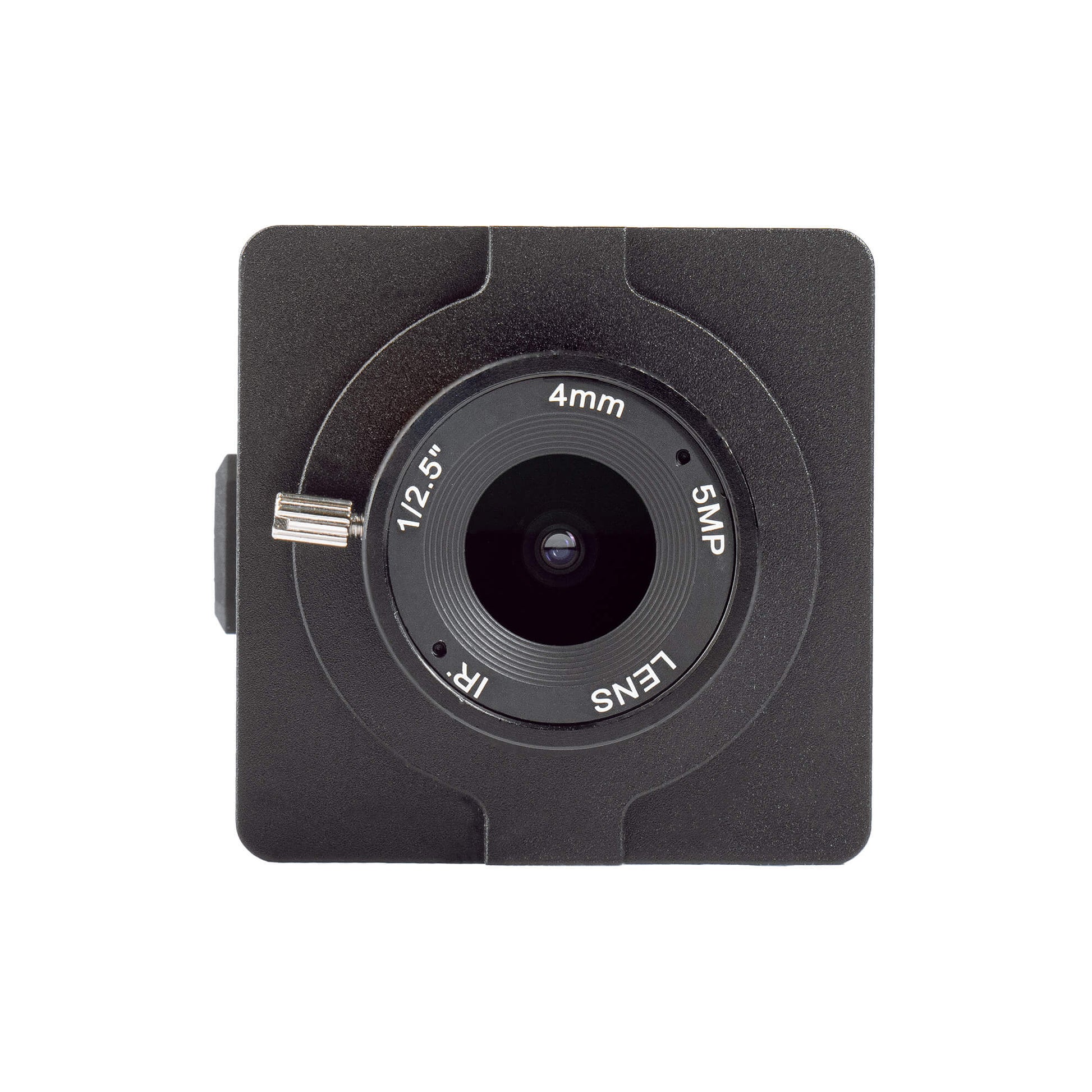

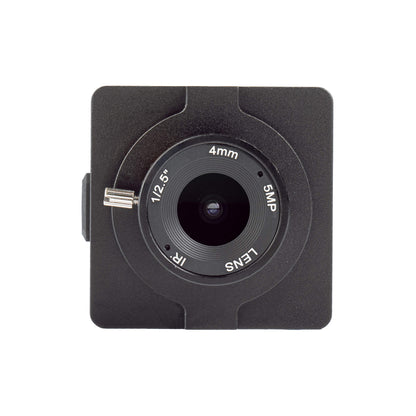

- Lens: C/CS Mount (Default 4mm HD Lens)
- Audio Input: 3.5mm Line Input through I/O cable
- Sample Rate: 16/24/32 Bits
- SMPTE: SMPTE 292M, SMPTE 424M
- Gen-lock: External Tri-Level Input (IN / OUT)
- Camera Control: RS-485, OSD Button
- Operation Temp: 32° F - 104° F
- Dimensions: 88.90mm x 44.45mm x 44.45mm
- Weight: 170g
- Power: 12VDC (+9 - +15VDC) (PoE+ injector possible)
Would you like more information on the Aida GEN3G-IPC-200 Camera?
For more indepth information, please download the Aida GEN3G-IPC-200 Camera product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
