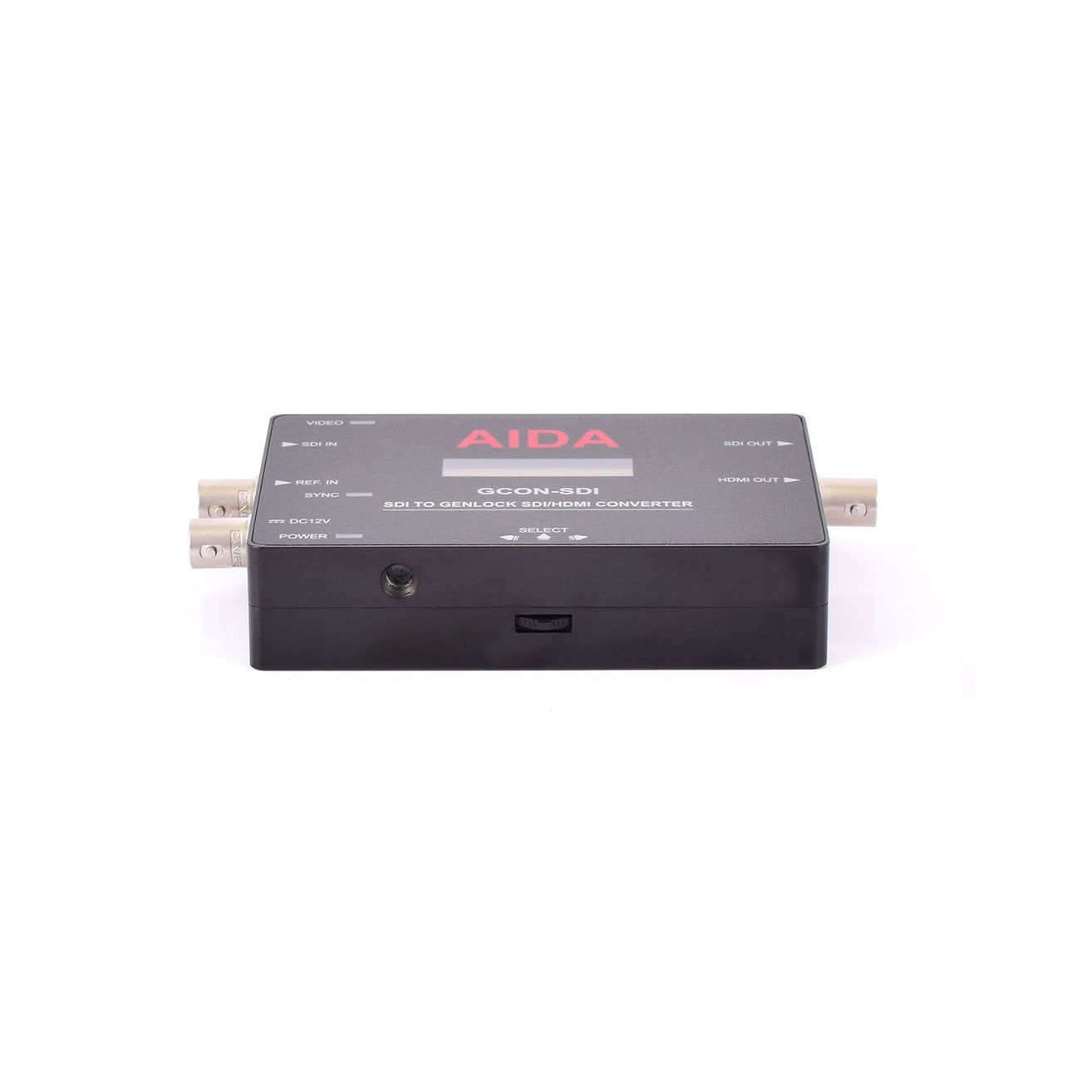

Aida Imaging GCON-SDI SDI to Genlock SDI/HDMI Converter

AID-GCON-SDI
$941
1 Remaining in Stock

    The GCON-SDI supports 1080p resolution up to 60 fps, converting SDI/3G-SDI sources to Genlock SDI/3G-SDI and HDMI with zero latency. While keeping the integrity of the original source feed intact, the featured Genlock Tri-Level Sync makes synchronization with other system components possible for seamless vertical interval switching between sources. The GCON-SDI also supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. Its rugged and portable design makes GCON-SDI a perfect camera sidekick to where it’s needed most.

    Price excludes tax

    CONTACT US for a demonstration or more information.

    CLICK HERE to download the product brochure.

    Main Features

    • 3G-SDI up to 1080p60 full HD Resolution Input.
    • Simultaneous HDMI and SDI Loop Output.
    • Highly compatible with Tri-Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz.
    • SMPTE 352M Ancillary Data supported.
    • Embedded audio pass-through via SDI & HDMI.
    • Adjustable V-sync & H-sync phases.
    • Divisional picture comparison.
    • Built-in Pattern Generator.
    • Built-in LCD menu screen.
    • Built in menu control button.
    • Versatile, compact, and rugged design.

    Specifications

    Video

    • Video Input: 3G-SDI / HD-SDI
    • Resolution Rate:
      • 1080 60p/59.94p/50p/30p/29.97p/ 25p
      • 1080 60i/59.94i/50i
      • 720 60p/59.94p/50p/30p/25p
    • Colour Space: 4:2:2 (YCbCr) 10bit
    • Output: Gen-locked HD-SDI/3G-SDI, Gen-locked HDMI 1.3a

    Function

    • Gen-lock Control: ON/Off, H Sync & V Sync Adjustment
    • Audio Control: Audio Bits (16, 20, 24 Bits)
    • Payload ID: ON/OFF
    • Payload Generate: Thirteen Patterns

    Audio

    • Audio Input: 16 Channels Embedded SDI Audio

    Standard

    • SMPTE: SMPTE 292M, SMPTE 424M

    Synchronization

    • Gen-lock: External Tri-Level Input

    Physical

    • Control: OSD Button and Text LCD
    • Operation Temperature: 32°F - 104°F
    • Dimensions: 130mm x 75m x 24mm
    • Weight: 173g
    • Power: 6W at 12VDC (+9 - +15VDC)
