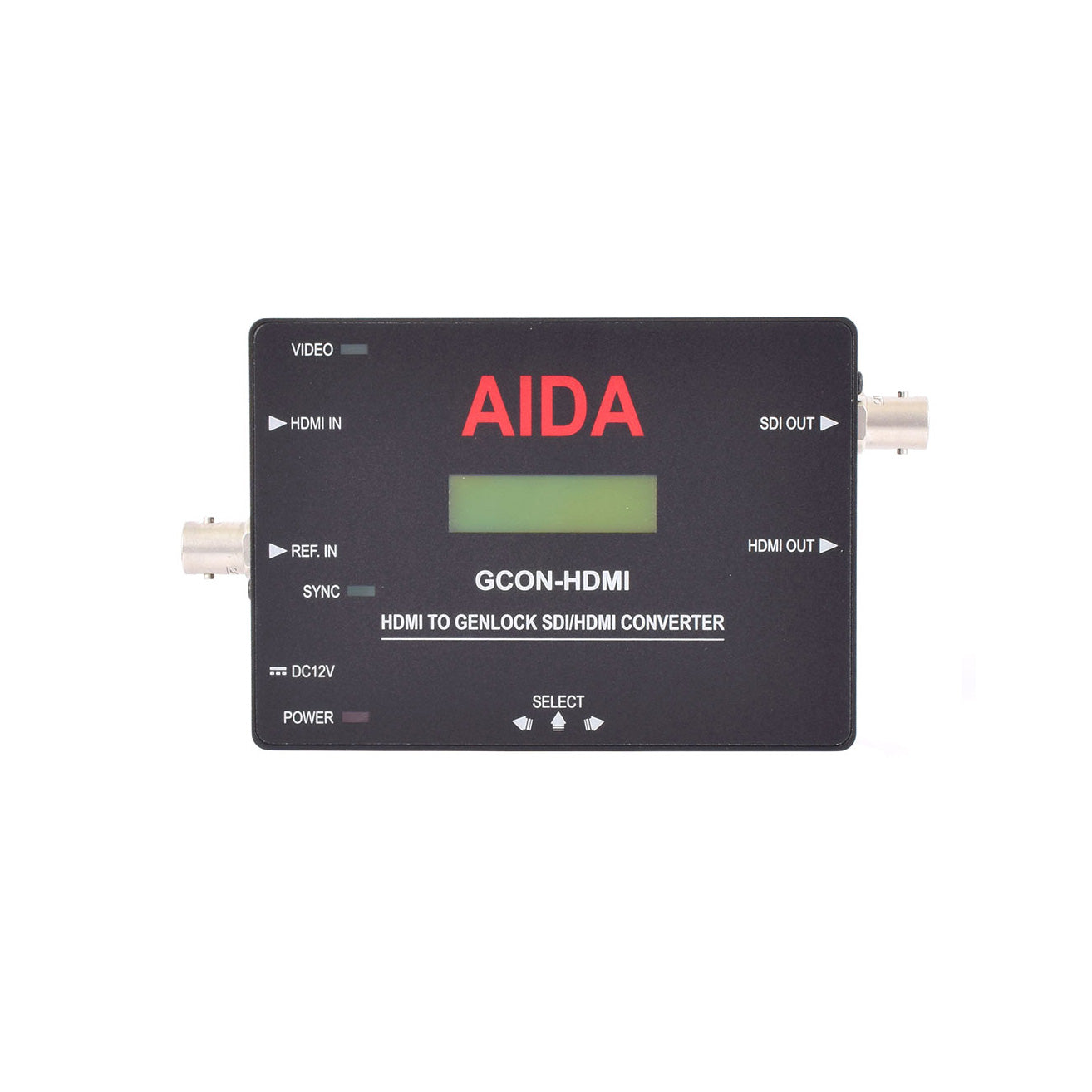

AIDA HDMI to Genlock SDI/HDMI Converter

AIDA HDMI to Genlock SDI/HDMI Converter

SKU:AID-GCON-HDMI

Regular price $941.00
Regular price Sale price $941.00
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

The GCON-HDMI supports 1080p resolution up to 60 fps, converting HDMI sources to Genlock SDI/3G-SDI and HDMI with zero latency. While keeping the integrity of the original source feed intact, the featured Genlock Tri-Level Sync makes synchronization with other system components possible for seamless vertical interval switching between sources. The GCON-HDMI supports ancillary data in SMPTE 352 payload ID and audio and relays it through its SDI output as well. Its rugged and portable design makes GCON-SDI a perfect camera sidekick to where it's needed most.

View full details

Capabilities and Functions

Aida SDI/HDMI Converter Features & Specifications

Aida SDI/HDMI Converter Product Features

'- HDMI up to 1080p60 full HD Resolution Input.
- Simultaneous SDI and HDMI Loop Output.
- Highly compatible with Tri-Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz.
- SMPTE 352M Ancillary Data supported.
- Embedded audio pass-through via SDI & HDMI.
- Adjustable V-sync & H-sync phases.
- Divisional picture comparison.
- Built-in Pattern Generator.
- Built-in LCD menu screen.
- Built in menu control button.
- Versatile, compact, and rugged design.

Aida SDI/HDMI Converter Technical Specifications

Video

- Video Input: HDMI 1.3
- Resolution Rate:
- 1080 60p/59.94p/50p/30p/29.97p/ 25p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p/30p/25p
- Colour Space: 4:2:2 (YCbCr) 10bit
- Output: Gen-locked HD-SDI/3G-SDI, Gen-locked HDMI 1.3a

Function

- Gen-lock Control: ON/Off, H Sync & V Sync Adjustment
- Audio Control: Audio Bits (16, 20, 24 Bits)
- Payload ID: ON/OFF
- Payload Generate: Thirteen Patterns

- Audio Input: 8 Channels Embedded SDI Audio

- SMPTE: SMPTE 292M, SMPTE 424M

- Gen-lock: External Tri-Level Input

- Control: OSD Button and Text LCD
- Operation Temperature: 32°F - 104°F
- Dimensions: 130mm x 75m x 24mm
- Weight: 173g
- Power: 6W at 12VDC (+9 - +15VDC)
