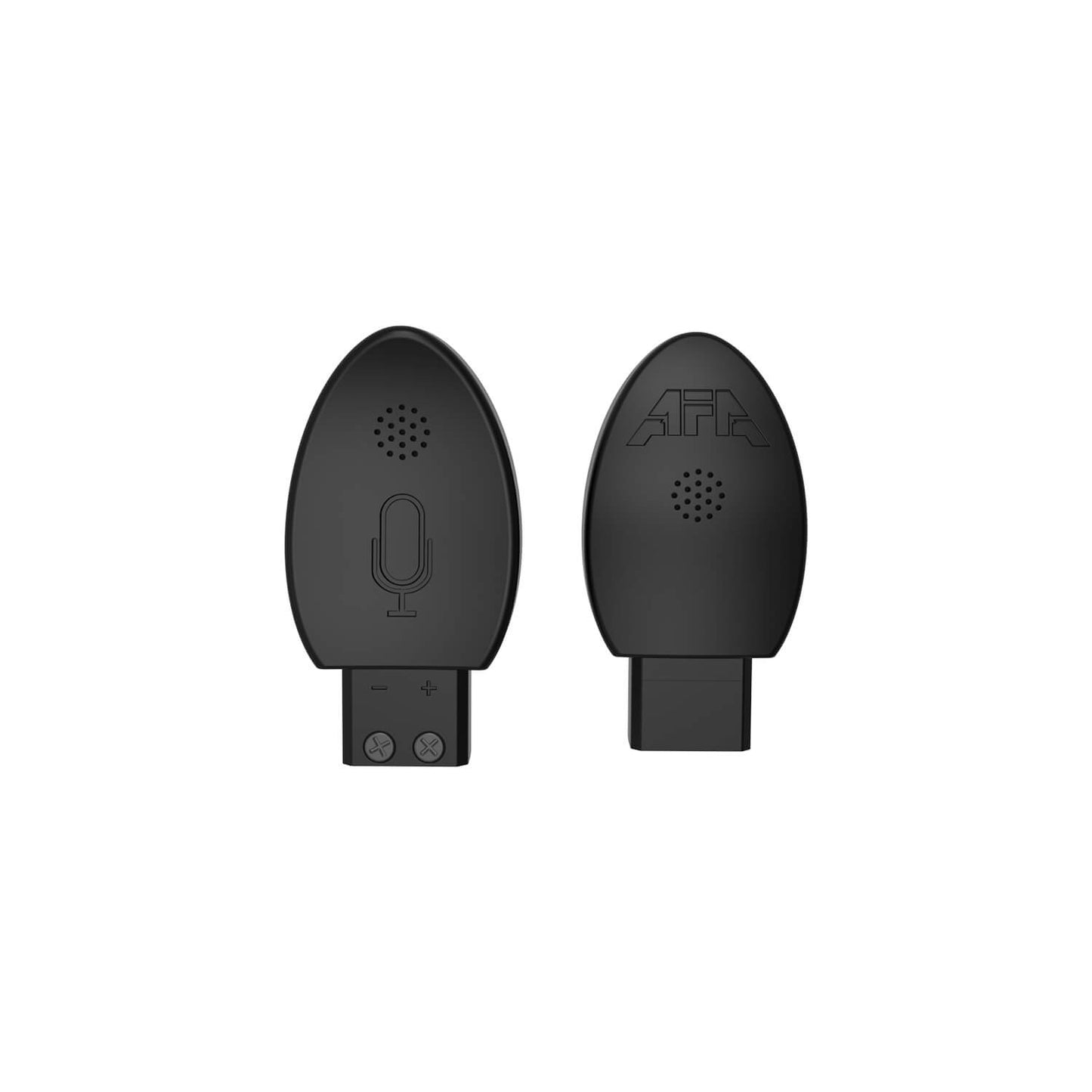

AFA Noise Cancelling Microphone Capsule for RAN-3000
AFA Noise Cancelling Microphone Capsule for RAN-3000
SKU:AFA-ELM-03
Couldn't load pickup availability
Through extensive R&D, product design, and testing. The AFA ELM-03 microphone capsules offer clear voice audio, improving safety levels in the harshest environments.
From Motorsport to Aviation, AFA Microphone capsules are the new standard in precise voice technology by simultaneously cancelling noise and enhancing voice audio quality.
Capabilities and Functions
AFA ELM-03 Microphone Features & Specifications
AFA ELM-03 Microphone Product Features
'- Directivity (voice microphone): Unidirectional
- Directivity (noise microphone): Omnidirectional
- Frequency: 100-20,000 Hz
- Signal to noise ratio: 81 dBA
- Total harmonic distortion: 0.0038%
- Sensitivity: -50 to -39 dB
- Output impedance: 2.2k
- Operating temperature: -20 to 70°C
- Standard operating voltage: 2 Vdc
- Max operating voltage: 10 Vdc
AFA ELM-03 Microphone Technical Specifications
'- Suits Raytalk RAN-3000 range of headsets
Would you like more information on the AFA ELM-03 Microphone?
For more indepth information, please download the AFA ELM-03 Microphone product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
