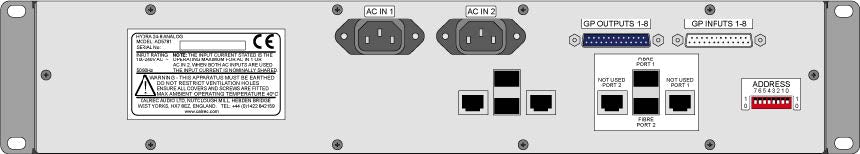

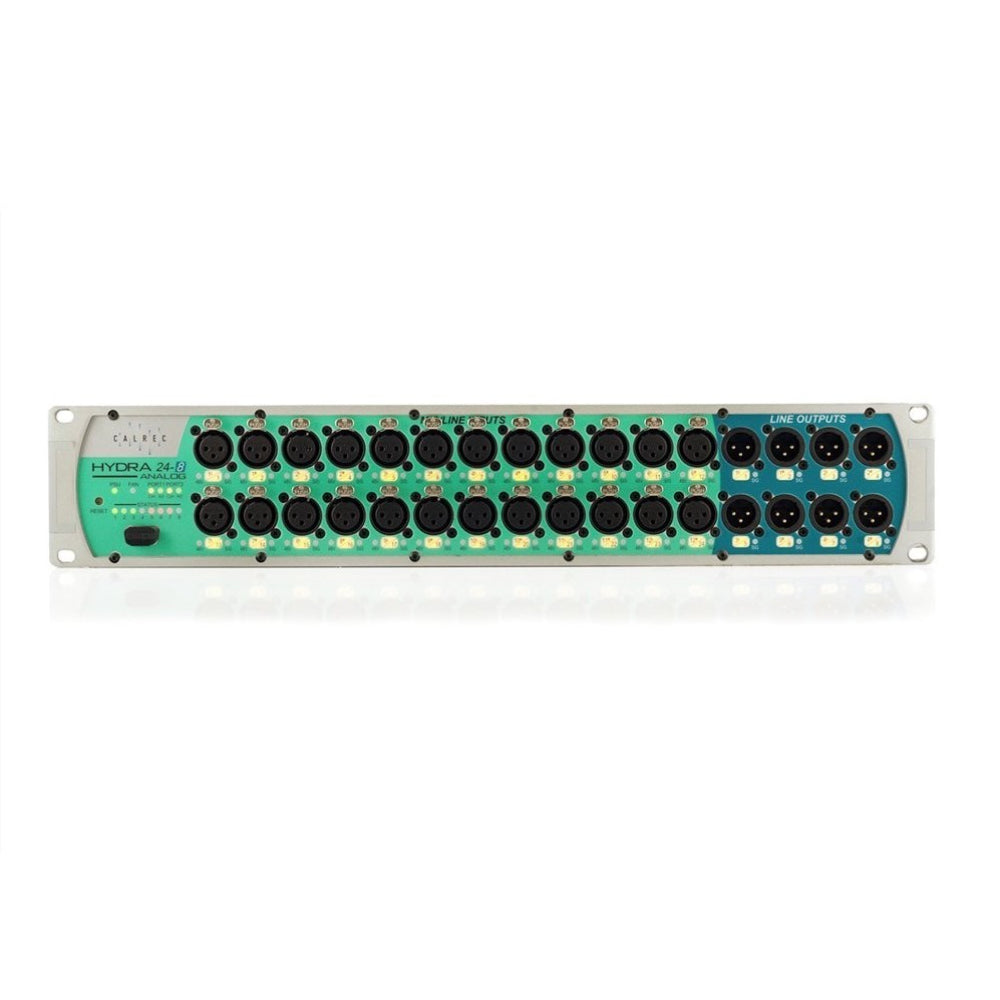

Calrec AD5781-5 2U H2 IP I/O Box with 24 Mic/Line Inputs and 8 Line Outputs
Calrec AD5781-5 2U H2 IP I/O Box with 24 Mic/Line Inputs and 8 Line Outputs
SKU:CAL-AD5781-5
Couldn't load pickup availability
In stock: 2 available
The AD5781-5 Calrec 2U H2 IP Switchable I/O Box is a professional broadcast audio interface designed for reliable and flexible audio connectivity. Featuring dual AC power supplies for redundancy, this unit provides 24 mic/line inputs and 8 line outputs through XLR connections. Built for high-performance broadcast and live production environments, it supports seamless IP audio integration and dependable signal routing.
Note this unit can be switched between Hydra2 and 2110.
Capabilities and Functions
Calrec 2U H2 IP Switchable I/O Box Features & Specifications
Calrec 2U H2 IP Switchable I/O Box Product Features
-2U H2 IP switchable I/O box
-24 mic/line input channels
-8 line output channels
-XLR audio connections
-Dual AC redundant power supply
-Professional broadcast audio integration
-Reliable and flexible signal routing
-Designed for live production and broadcast applications
Calrec 2U H2 IP Switchable I/O Box Technical Specifications
Model: AD5781-5
Product Type: 2U IP Switchable Audio I/O Box
System Compatibility: Calrec Hydra2 / H2 IP
Inputs: 24 x Mic/Line (Balanced XLR)
Outputs: 8 x Line Level (Balanced XLR)
Power Supply: Dual AC (redundant power)
Form Factor: 2U rackmount
Audio Connectors: XLR (Inputs female / Outputs male)
Control: Remote gain & phantom power per input
Network Integration: IP-enabled Hydra2 system
Application: Broadcast audio routing & production
Use Case: Studio, live broadcast, OB van, remote production
