22" QUAD BROADCAST MONITOR

22" QUAD BROADCAST MONITOR

FOR-PRO-215-Q

$5,973.60
$5,973.60
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

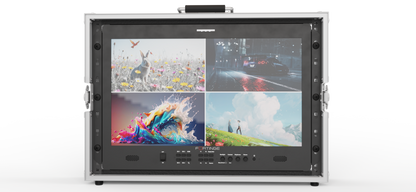

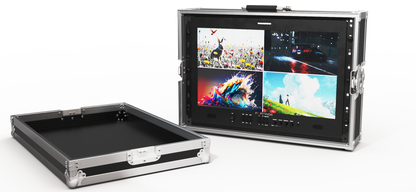

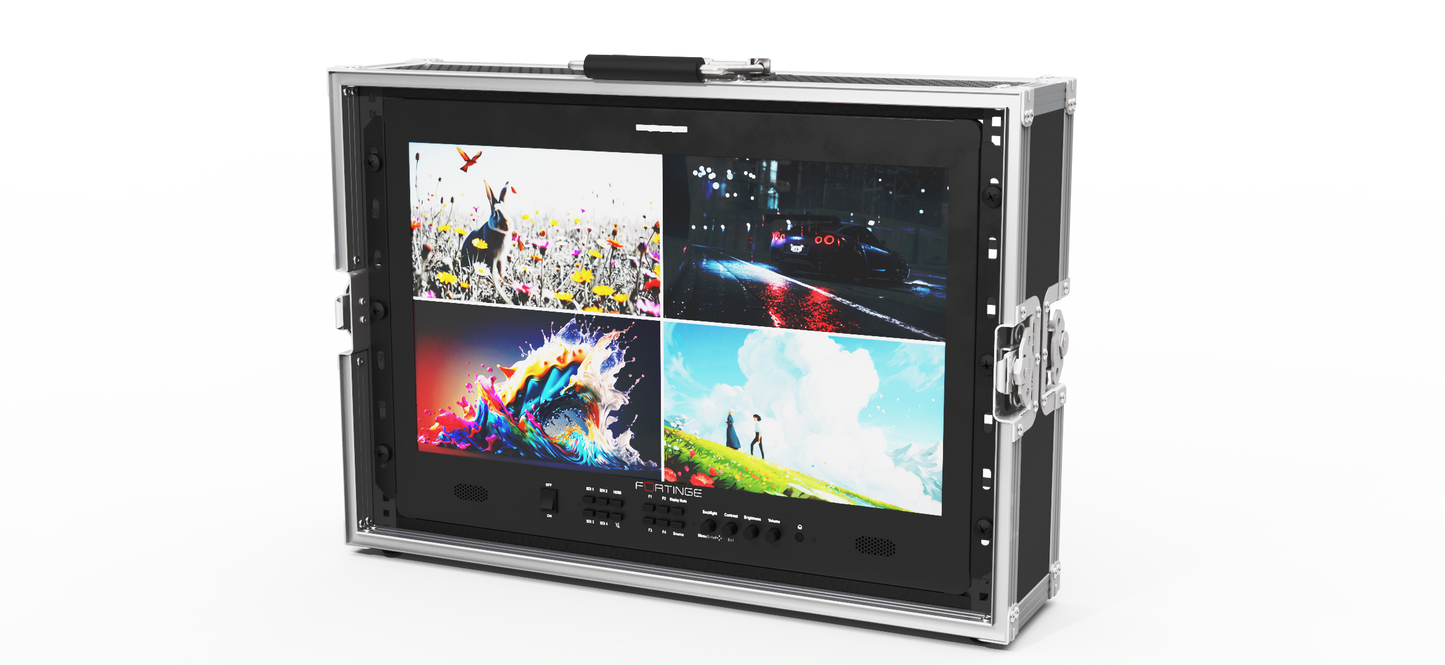

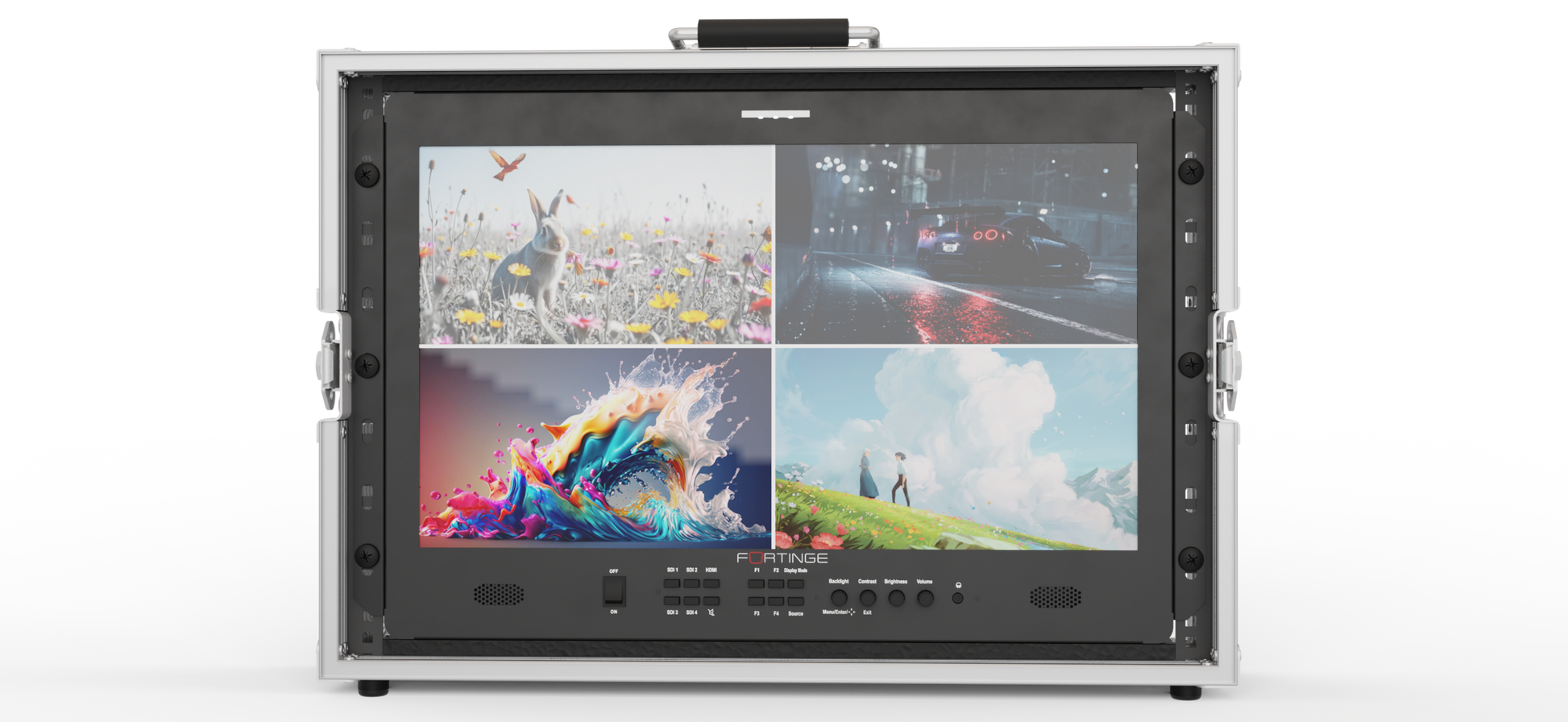

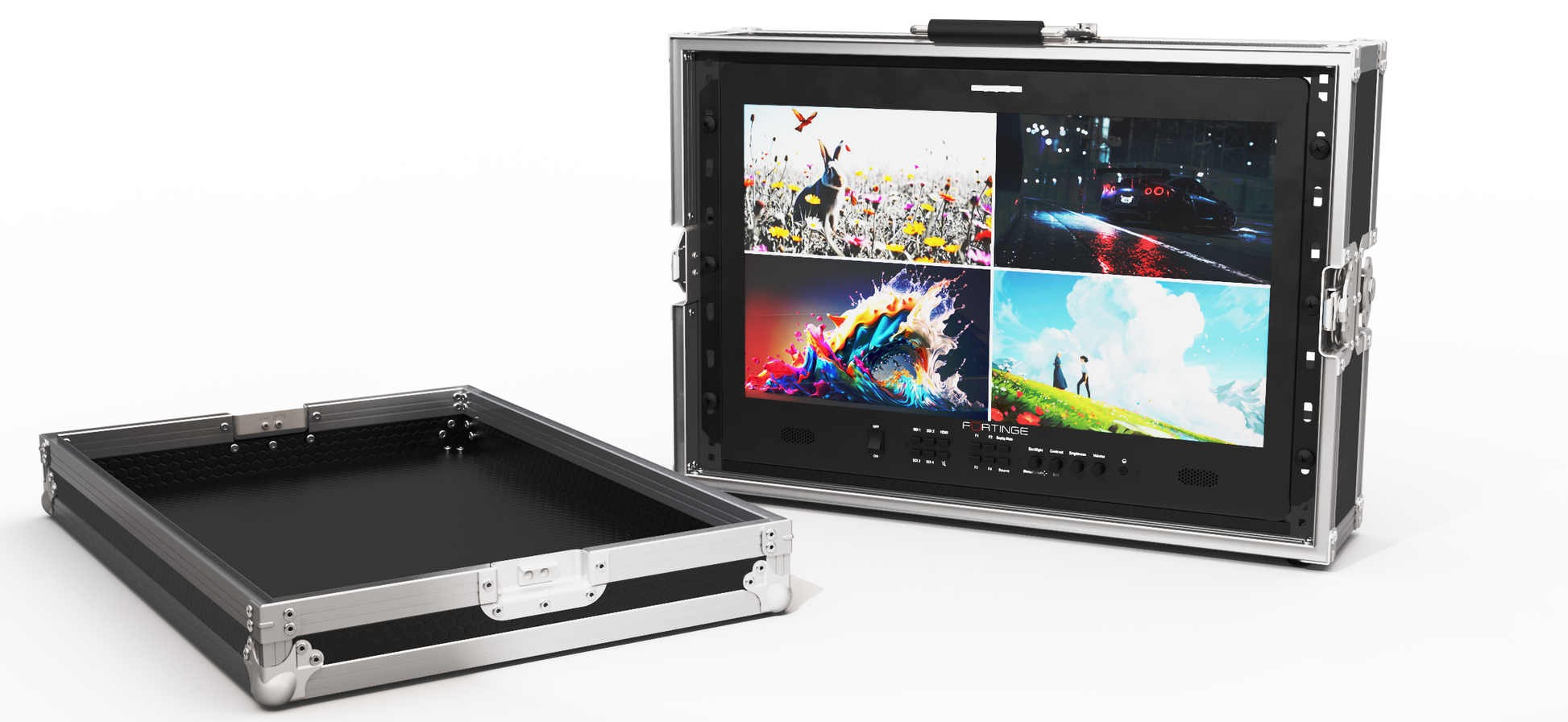

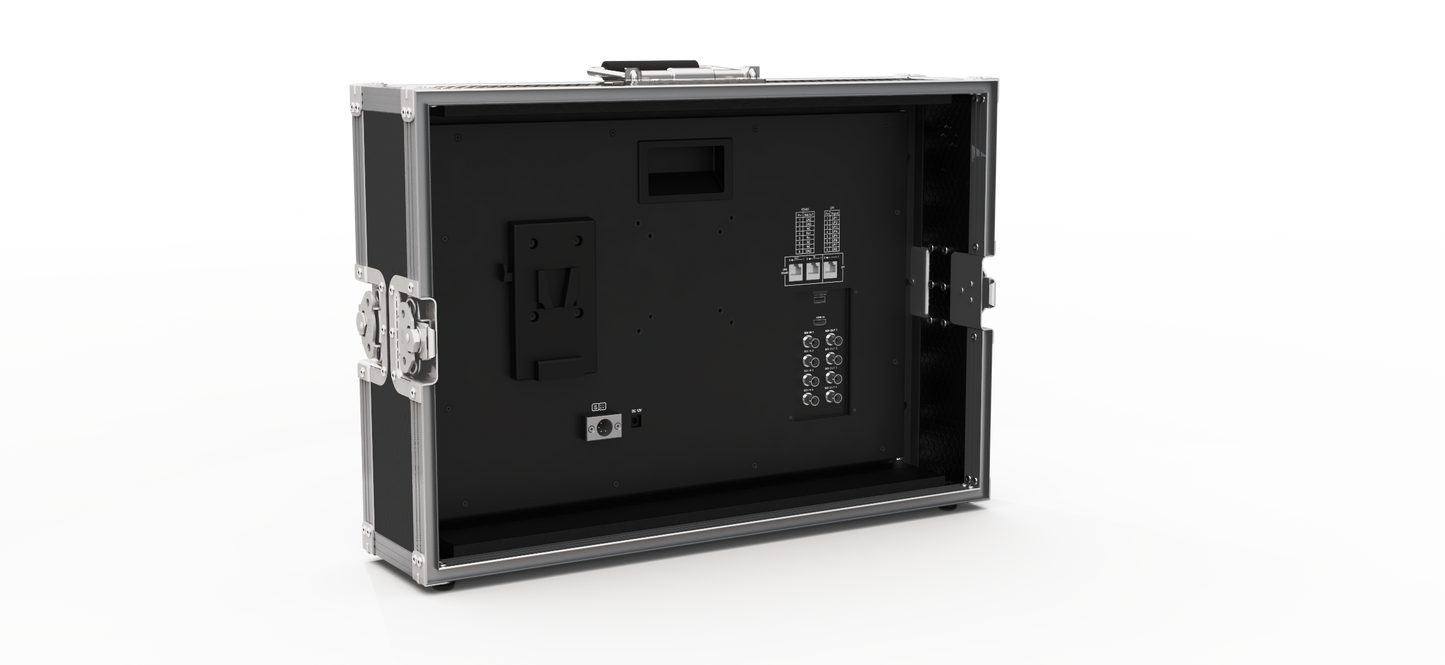

The 22″ Quad Broadcast Monitor is built for studio and field production teams that need reliable multi-view monitoring. Its 21.5″ Full HD panel provides crisp, accurate images, while the rugged aluminium carry case design makes it suitable for both rack-mounted and portable use.

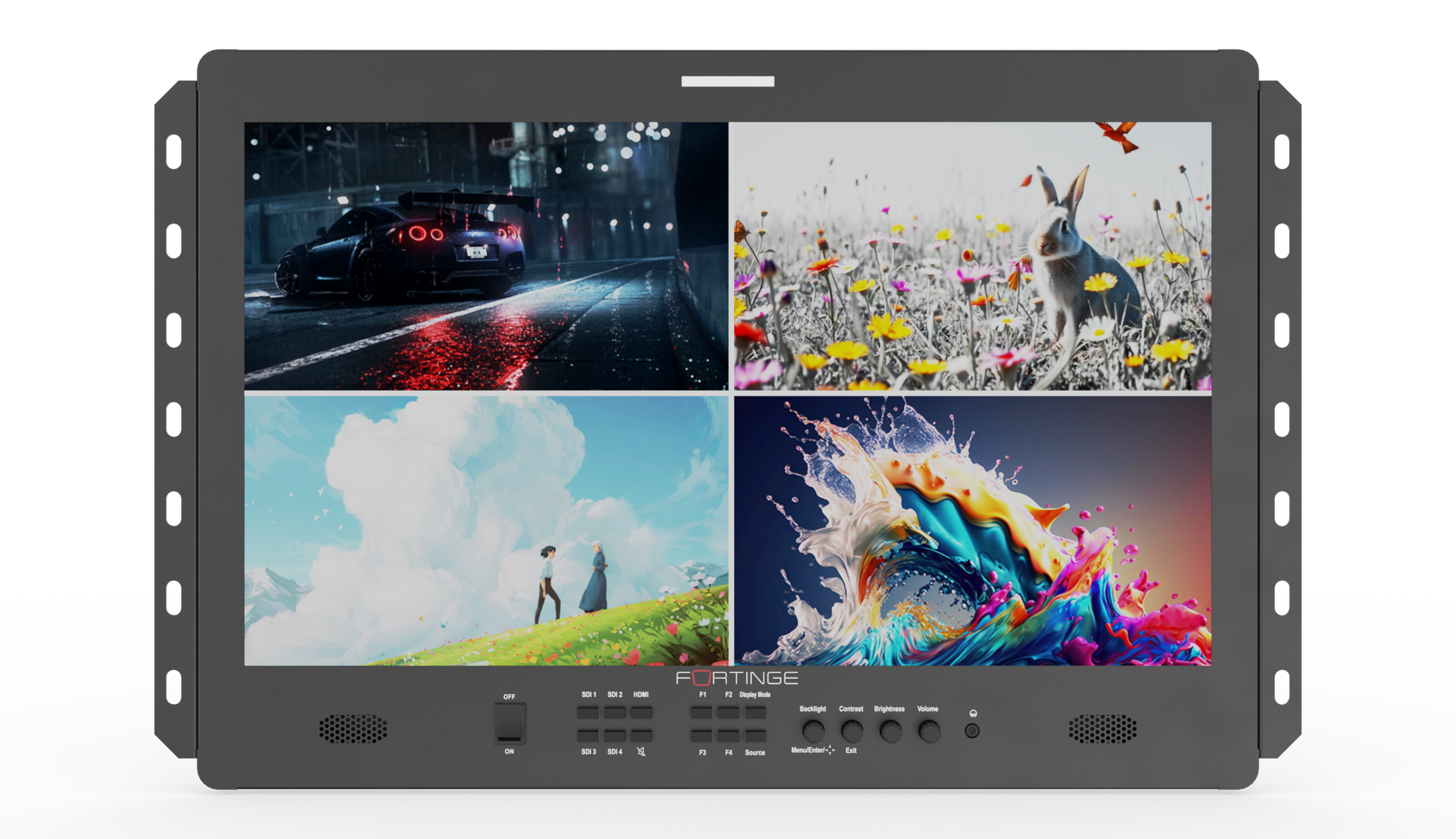

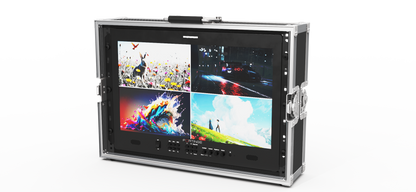

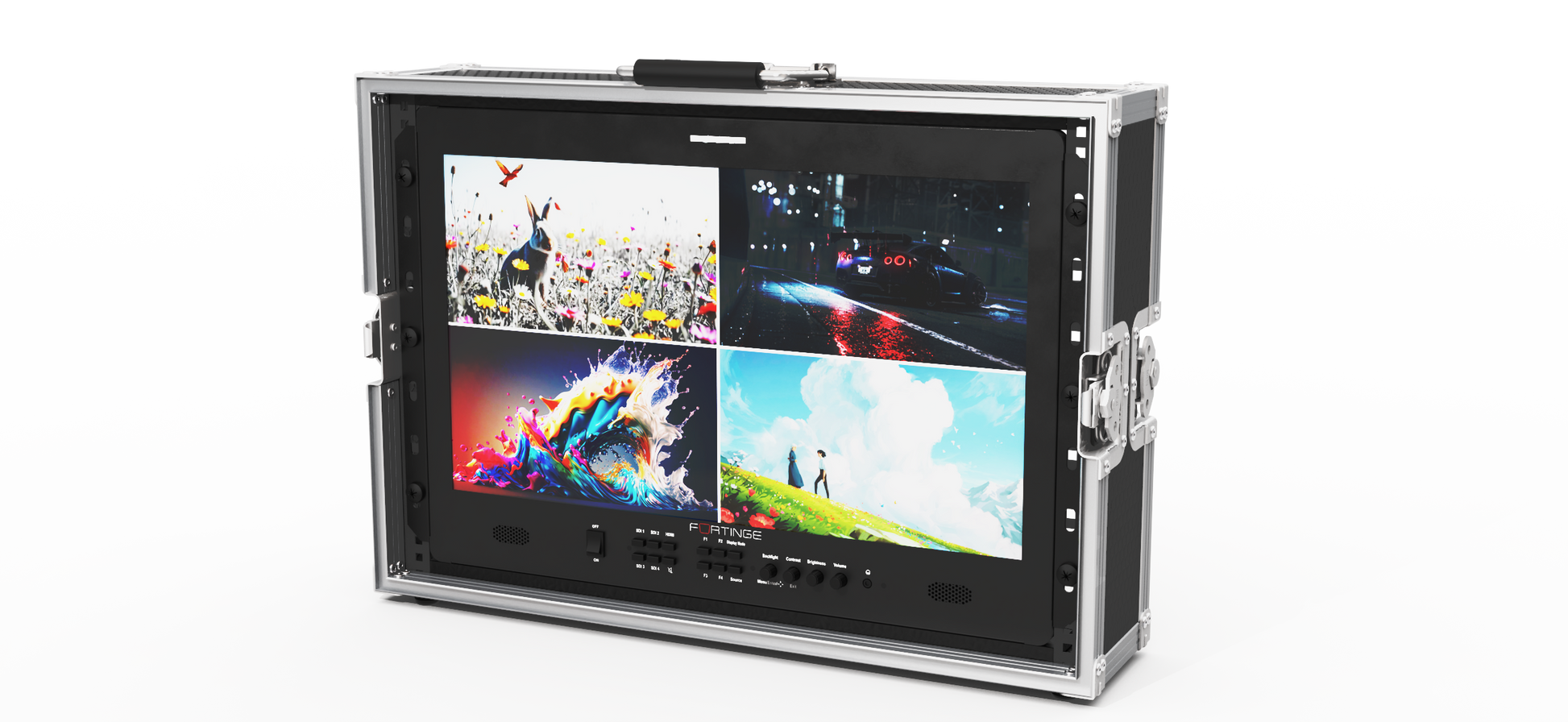

This PRO215-Q model offers Quad view and Picture-in-Picture modes for flexible workflows. Advanced broadcast tools include waveform, vectorscope, RGB histogram, 3D LUT support, plus focus assist, giving operators confidence in every production environment.

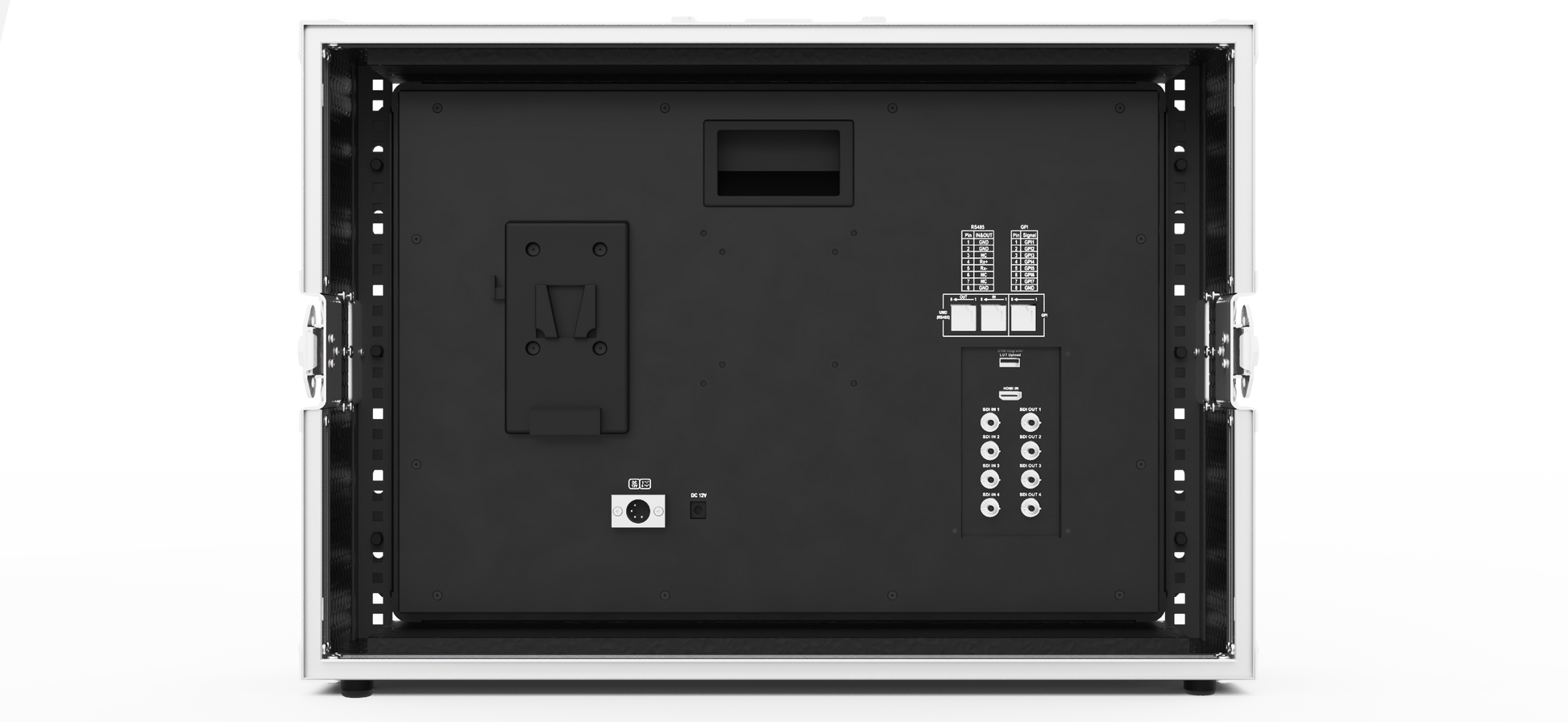

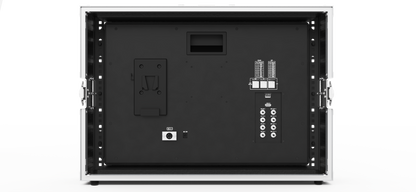

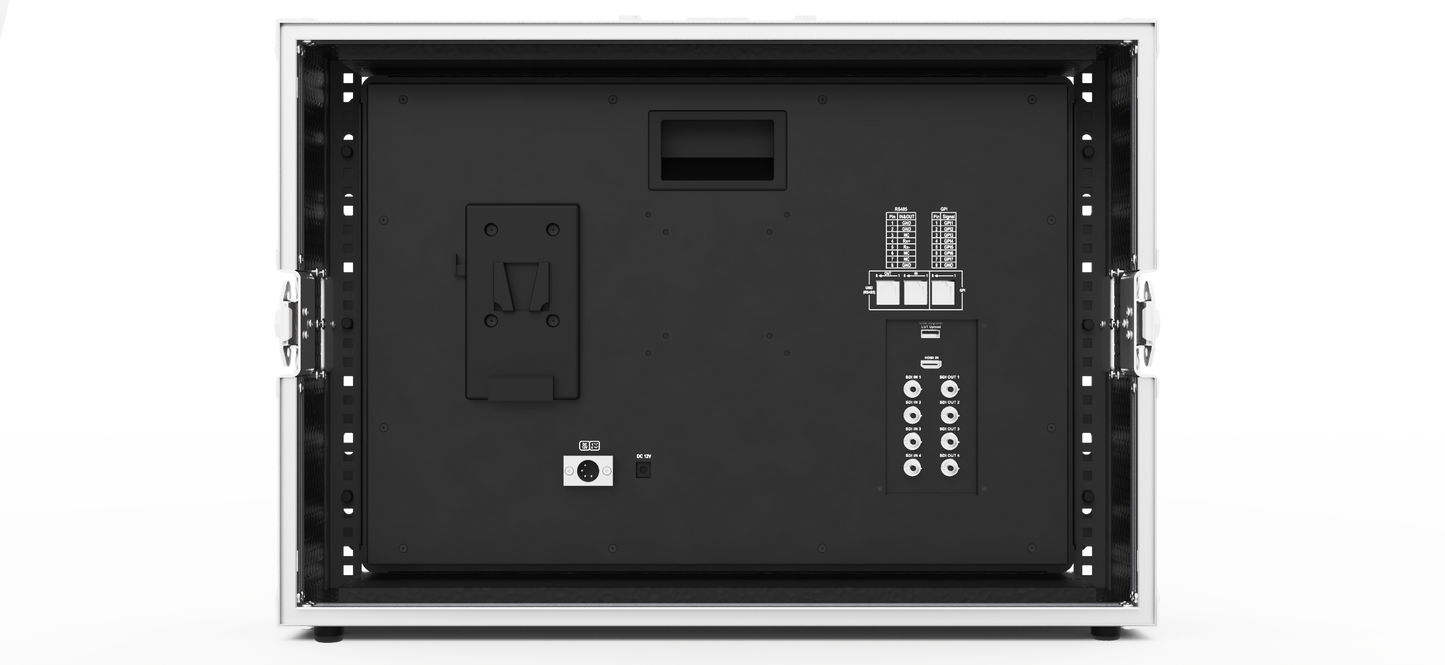

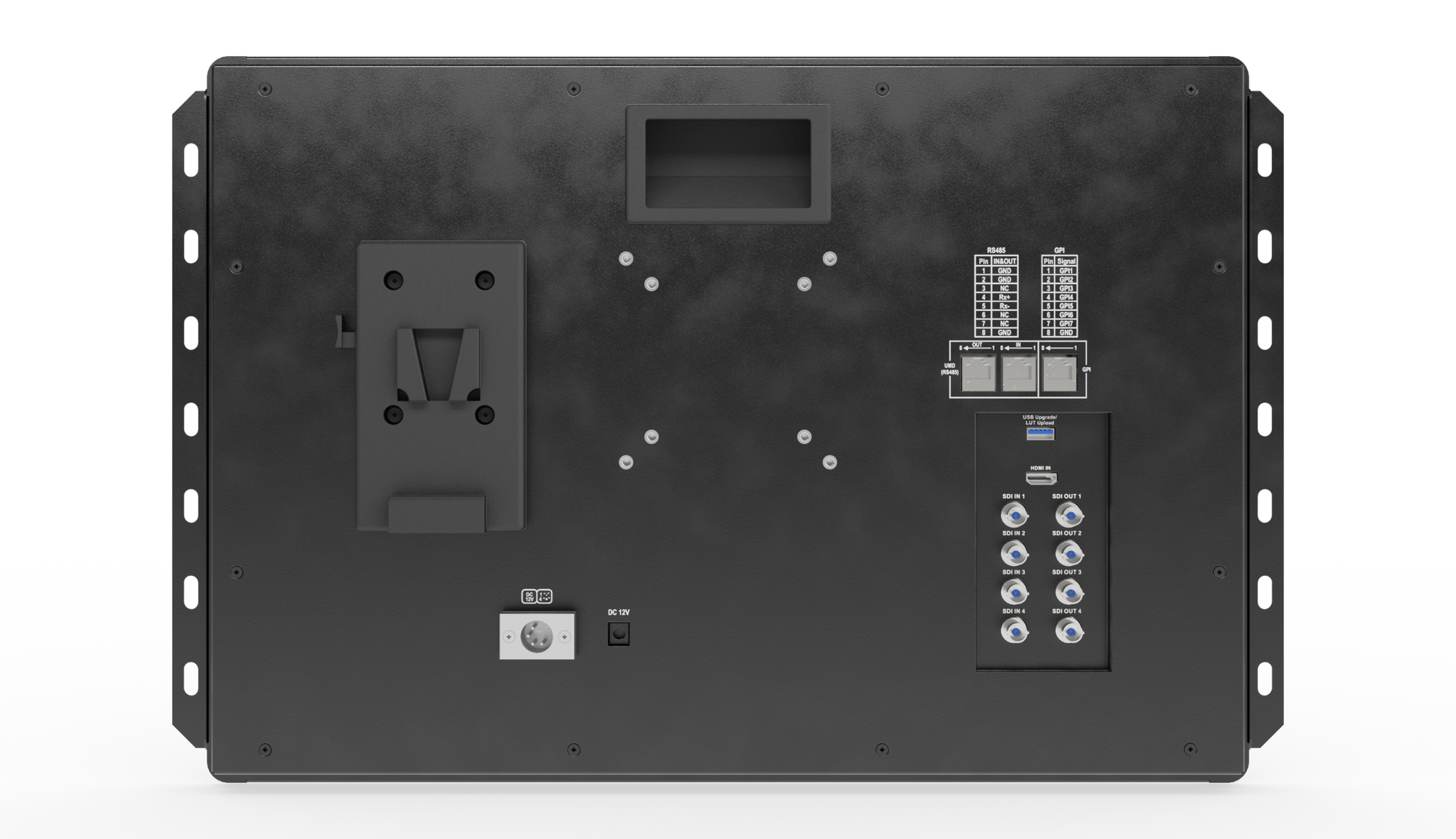

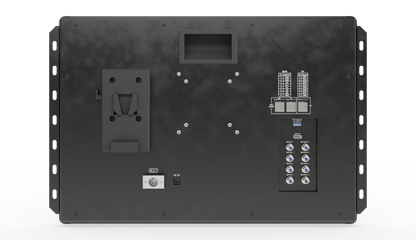

Connectivity is professional-grade, with 4 × 3G-SDI inputs/outputs, HDMI, RS485, as well as GPI ports, plus embedded 16-channel audio meters. Power is supplied via 12 V DC or V-mount battery, make sure stable operation in studios, OB vans, or outdoor shoots.

View full details

Capabilities and Functions

22" QUAD BROADCAST MONITOR Features & Specifications

22" QUAD BROADCAST MONITOR Product Features

• Built-in Multi camera Delog LUTs
• User 3DLUTs upload via USB (up to 36)
• Support GPI control
• Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO
protocol
• Support TALLY
• Support 16-ch embedded audio meters display
• Histogram
• HDR
• Focus Assist (Red, Green, Blue three colors optional highlight over
parts of the image in focus)
• False Colors
• Zebra (70IRE, 80IRE, 90IRE)
• Timecode Display
• Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
• Under Scan, Over Scan
• Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
• Pixel to Pixel
• Center Marker
• Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
• Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
• All Waves
• Parade (RGB Parade, Y, YUV Parade)
• Image Freeze
• Selectable Color Temperature Presets

22" QUAD BROADCAST MONITOR Technical Specifications

Screen Size: 21.5”
Color Depth: 16.7M
Viewing Angle: 89/89 (L/R) 89/89 (U/D)
Aspect Ratio: 16:9
Brightness: 500 cd/m2
Contrast Ratio: 1000:1
Backlight LED
Input Voltage: 12V DC
Power Consumption: ≤ 36W
Working Temperature: -10°C~50°C
Storage Temperature: -20°C~60°C
Unit Size: 365W mm x 523.5L mm x 37.2H mm
Unit Weigh:t 4.7 kg
