22" BROADCAST MONITOR

22" BROADCAST MONITOR

FOR-PRO-215

$4,317.08
$4,317.08
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

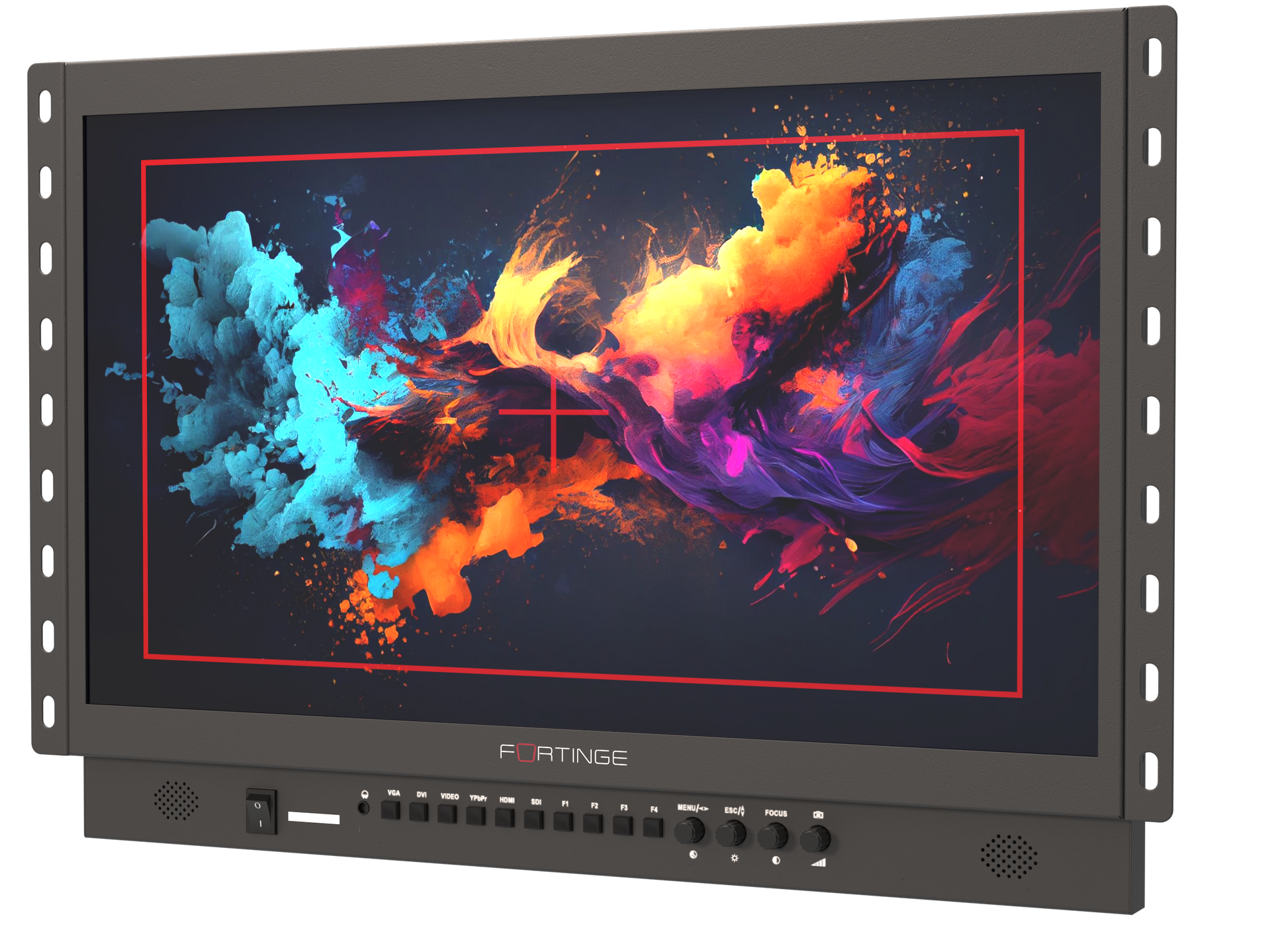

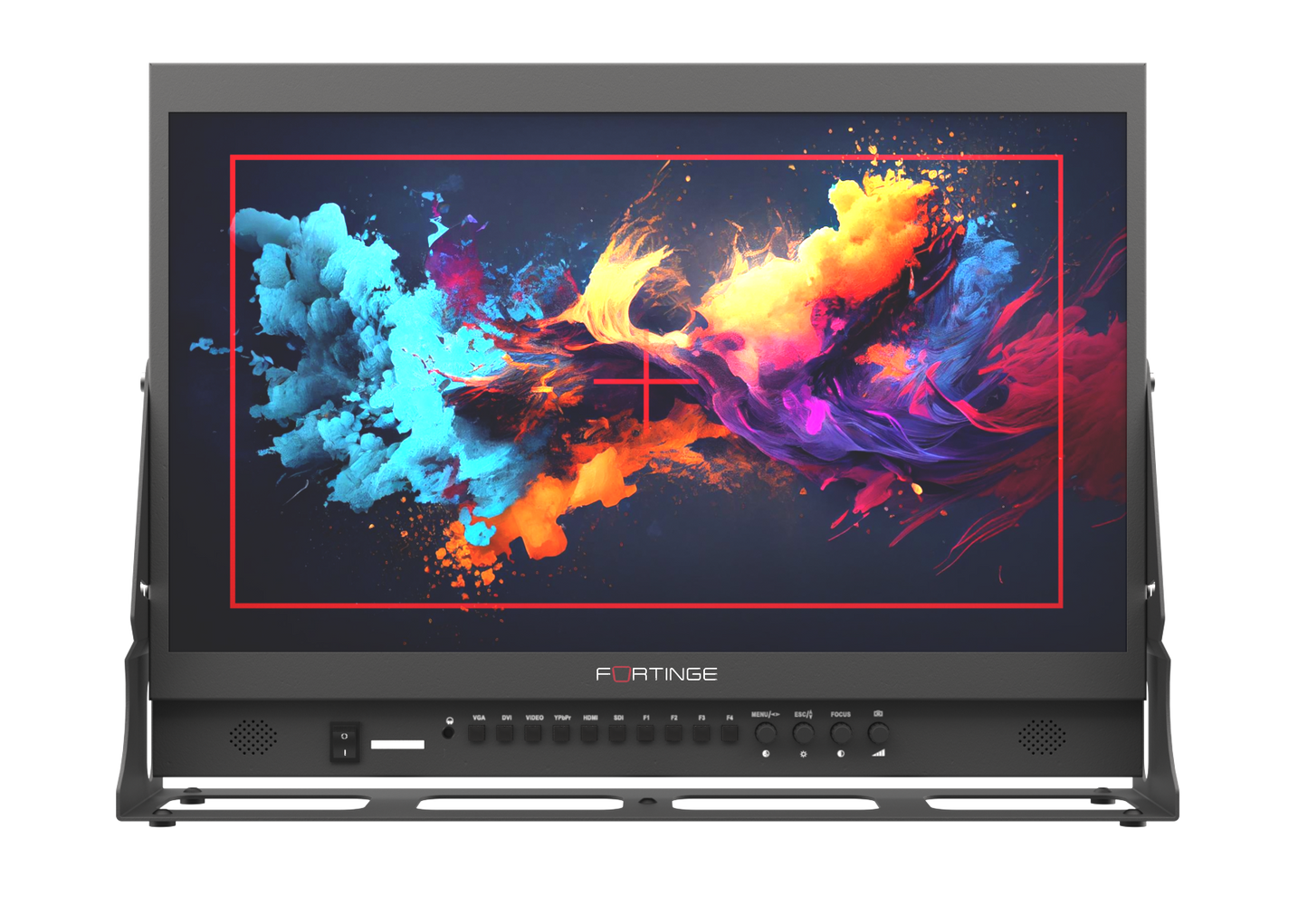

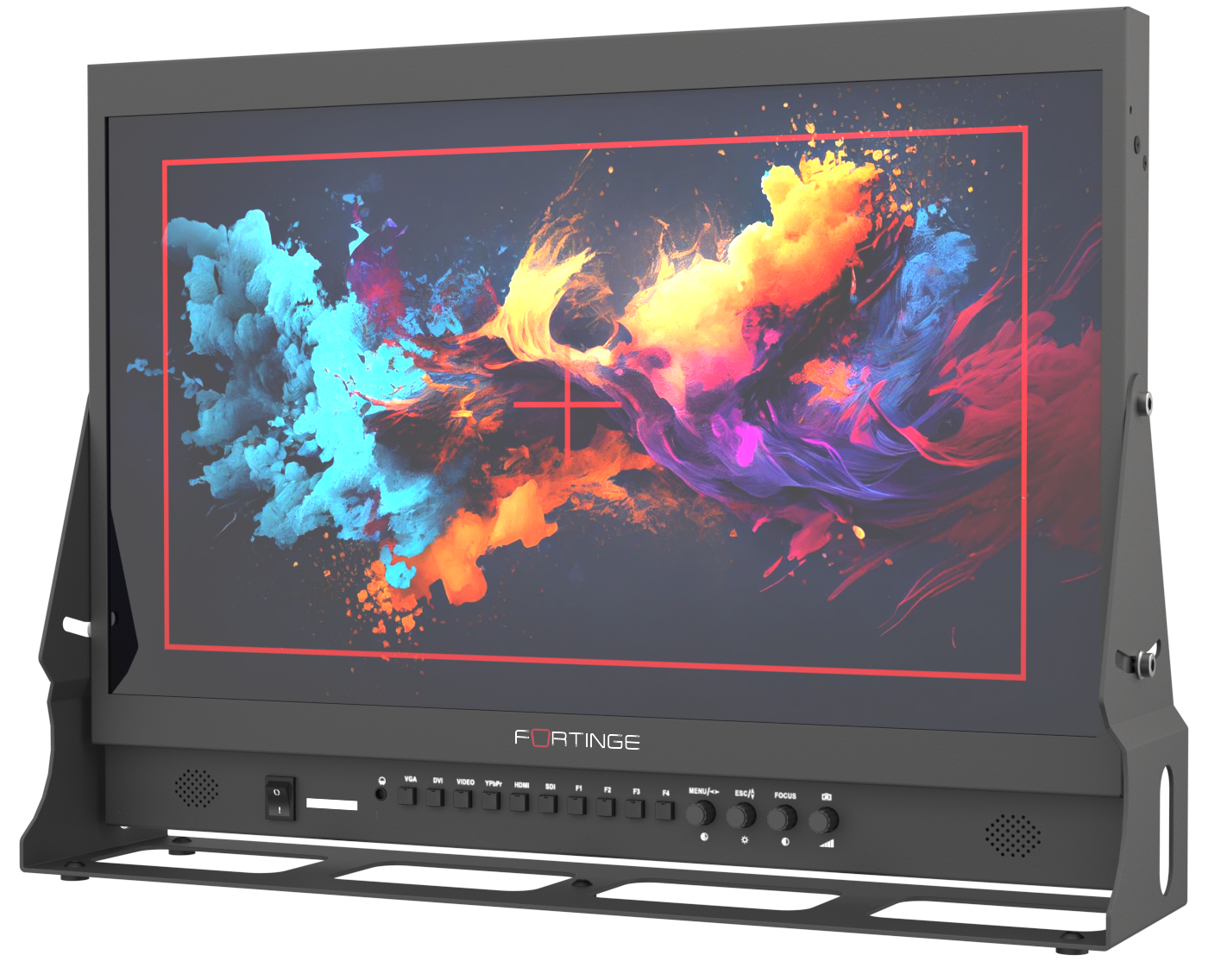

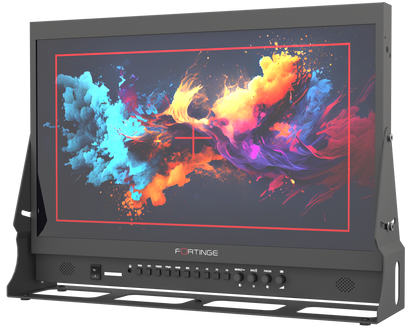

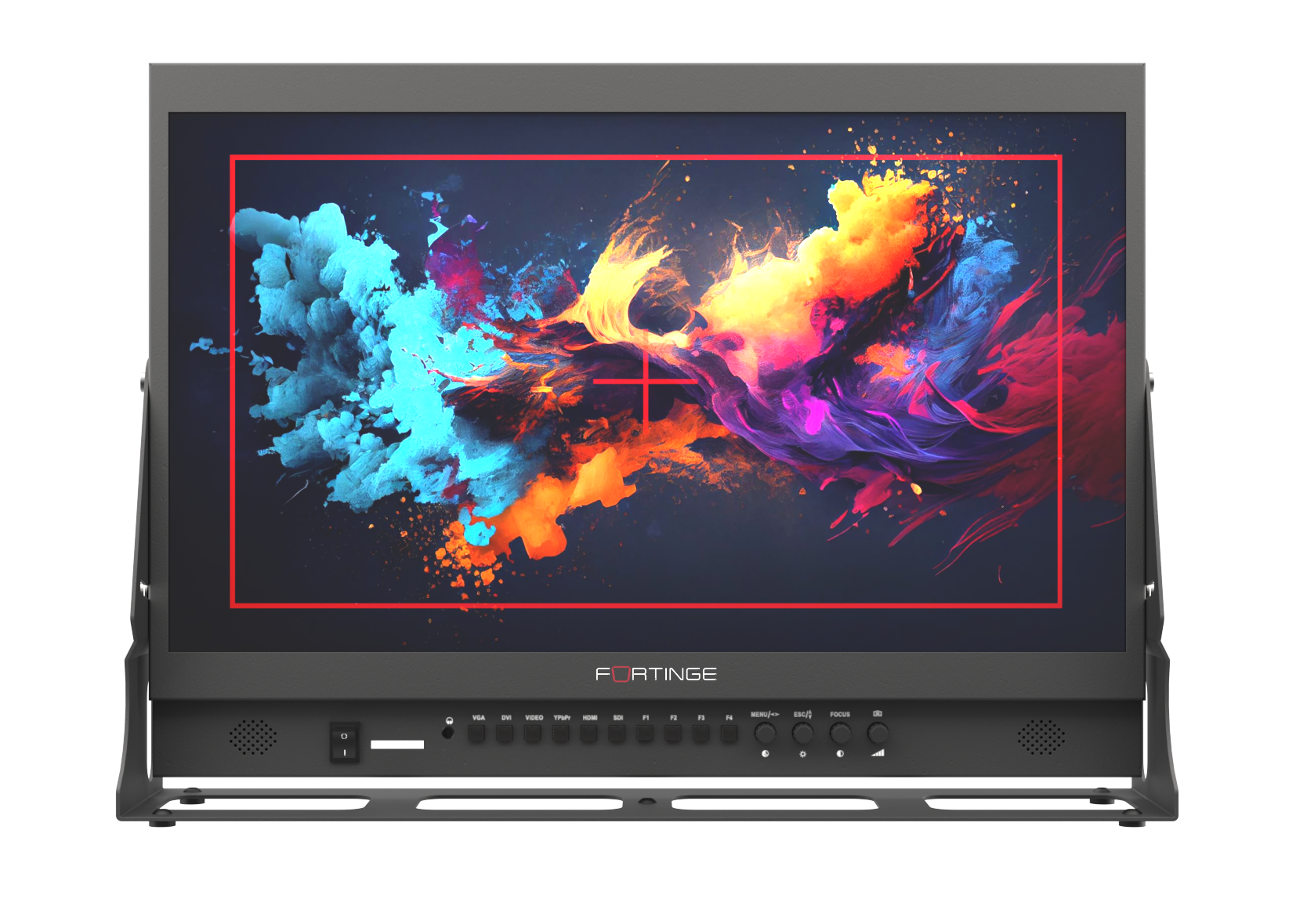

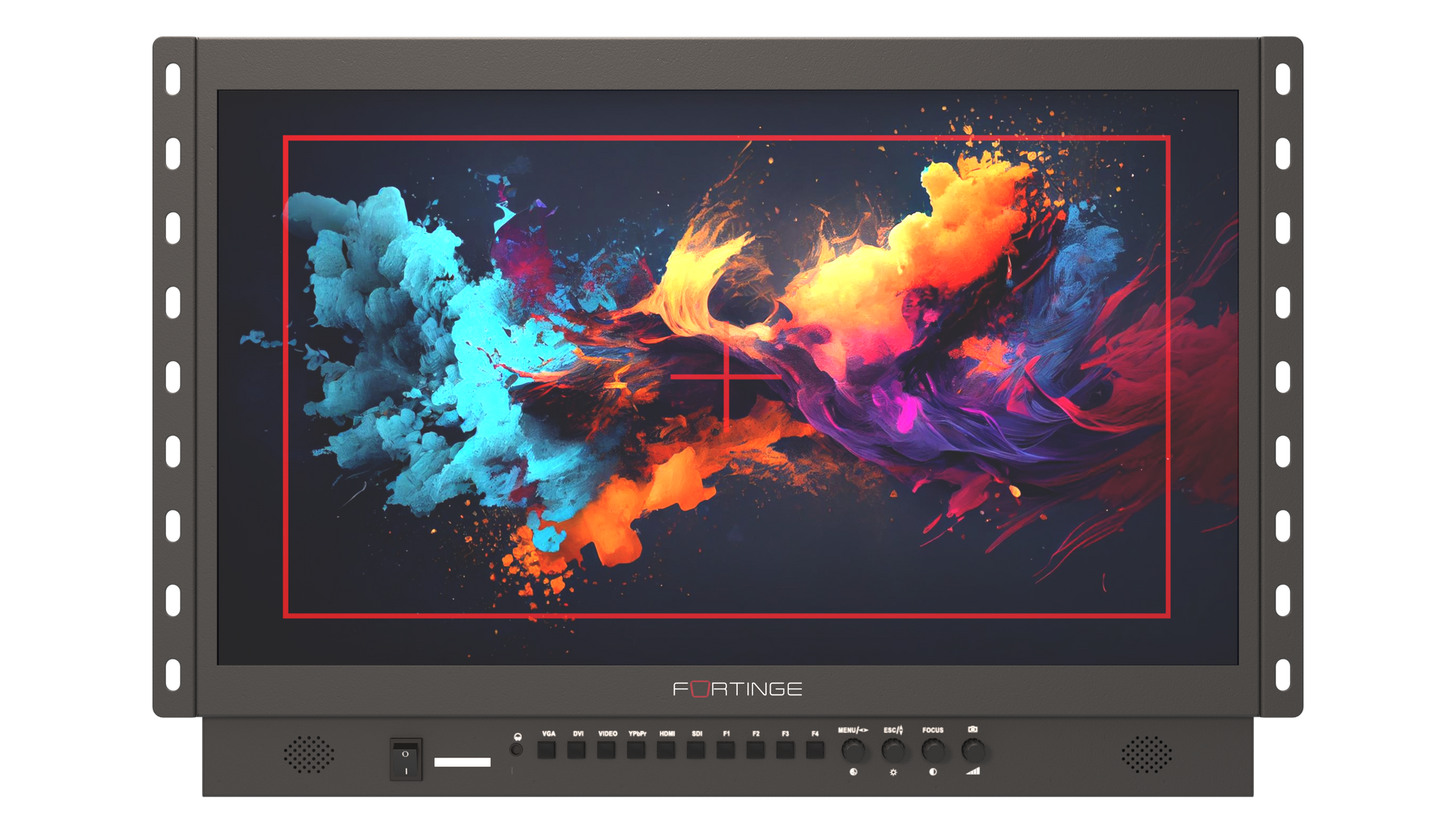

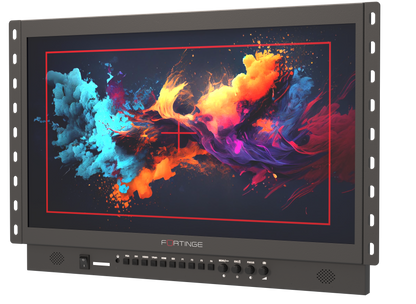

The 22″ Broadcast Monitor is built for TV studios, OB vans, plus live productions where image clarity is critical. It features a 21.5″ Full HD panel along with 1920 × 1080 resolution, 500 cd/m² brightness, plus a 1000:1 contrast ratio. The display provides accurate visuals, sharp, supported by wide viewing angles + true colour performance.

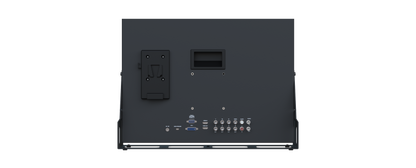

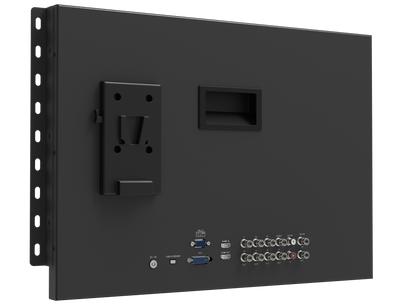

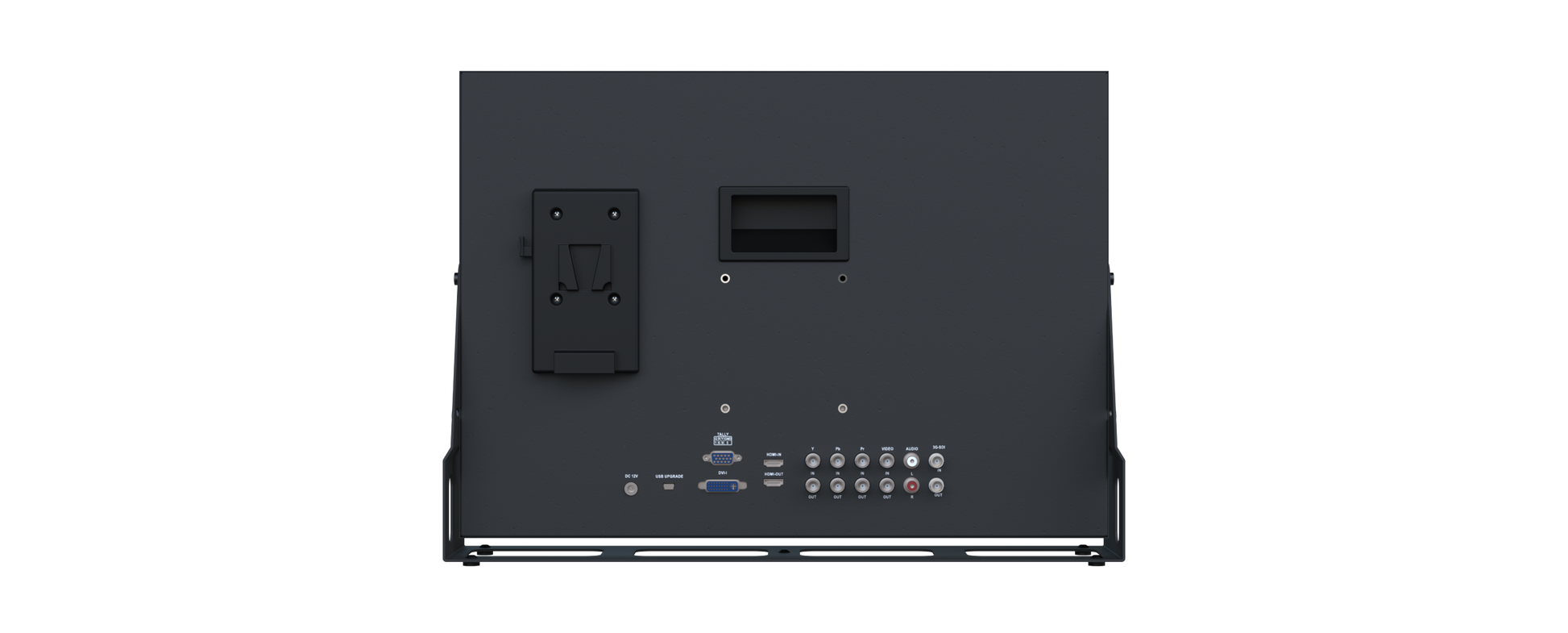

Designed for professional workflows, the PRO215 includes focus peaking, safe frame markers, pixel-to-pixel mode, freeze, plus built-in tally indicators. Connectivity is versatile with 3G-SDI, HDMI, DVI-I, YPbPr, plus Composite inputs, plus loop-through outputs. Powered by DC 12 V or V-Mount batteries, it is equally suited for studio racks + field setups.

View full details

Capabilities and Functions

22" BROADCAST MONITOR Features & Specifications

22" BROADCAST MONITOR Product Features

High-Resolution Display: 21.5″ Full HD panel with 1920 × 1080 resolution for sharp, accurate visuals.
Wide Viewing Angles & True Color: Ensures consistent image quality for studio and field use.

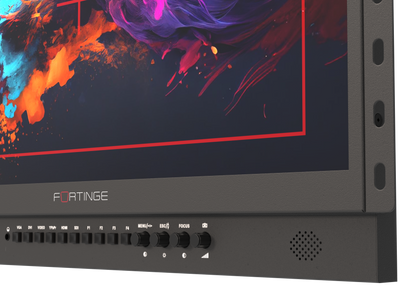

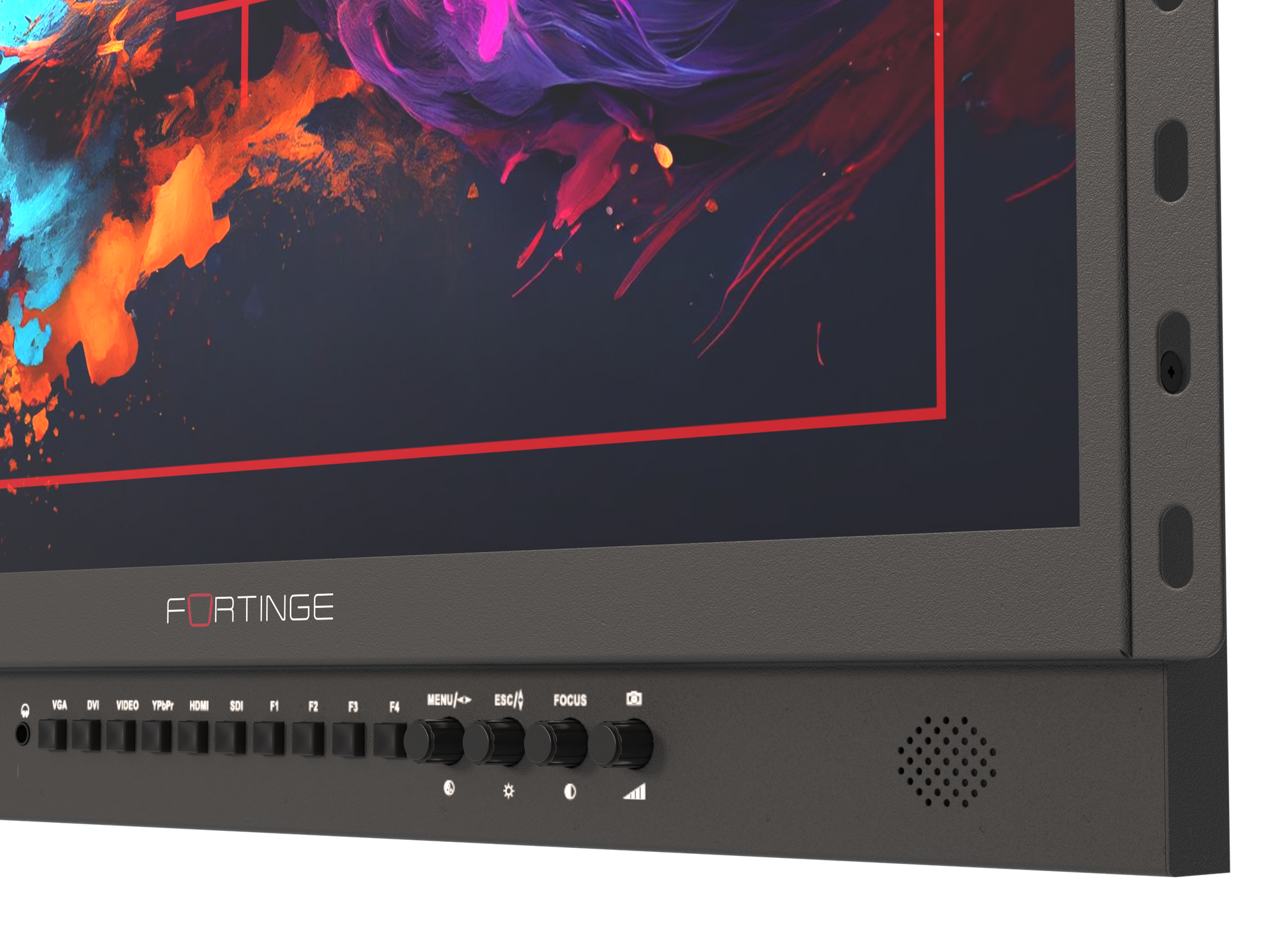

Professional Monitoring Tools: Includes focus peaking, safe frame markers, pixel-to-pixel mode, freeze function, and built-in tally indicators.

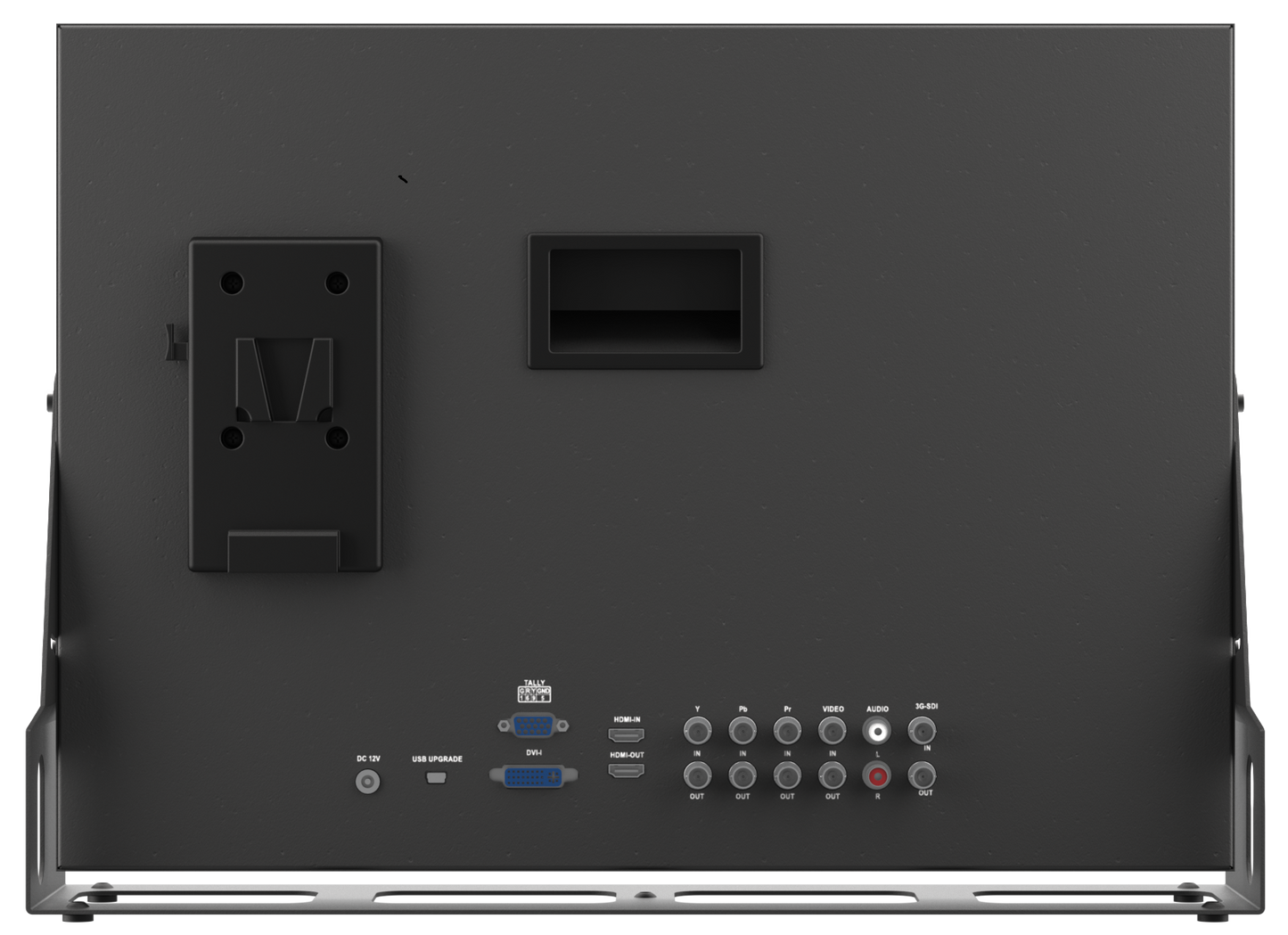

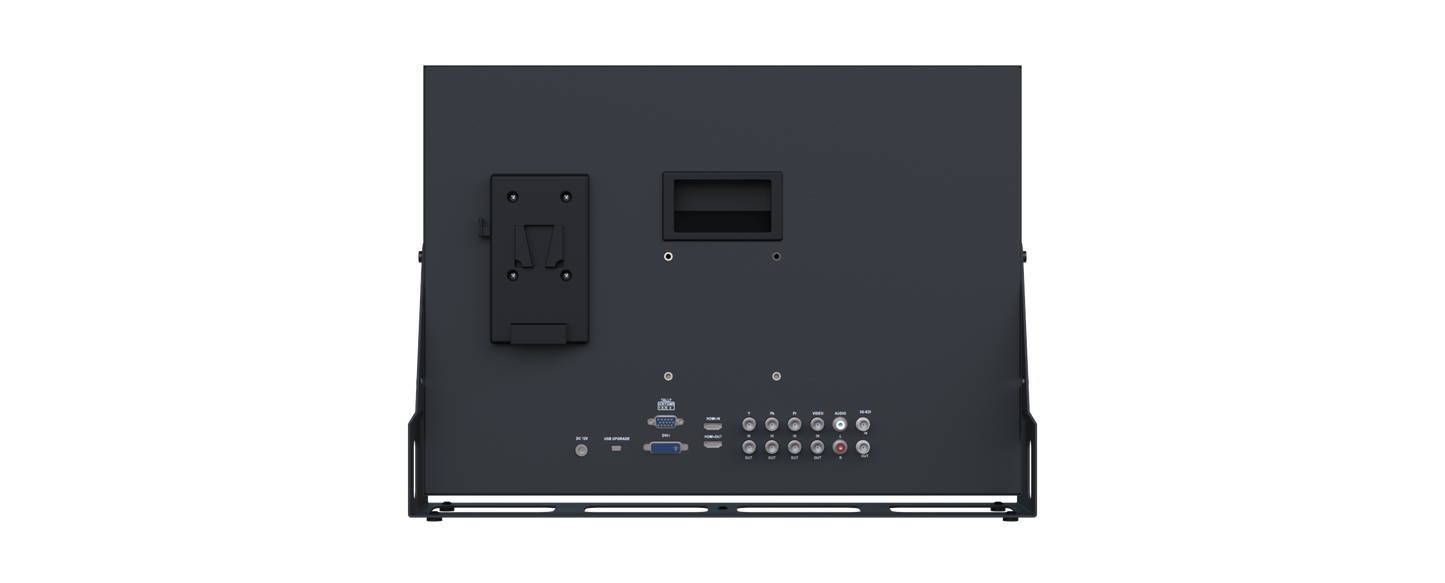

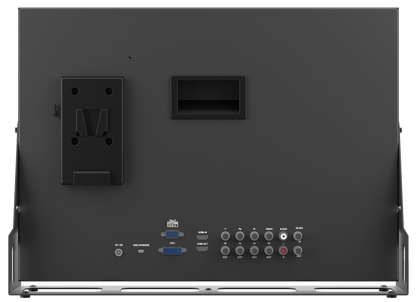

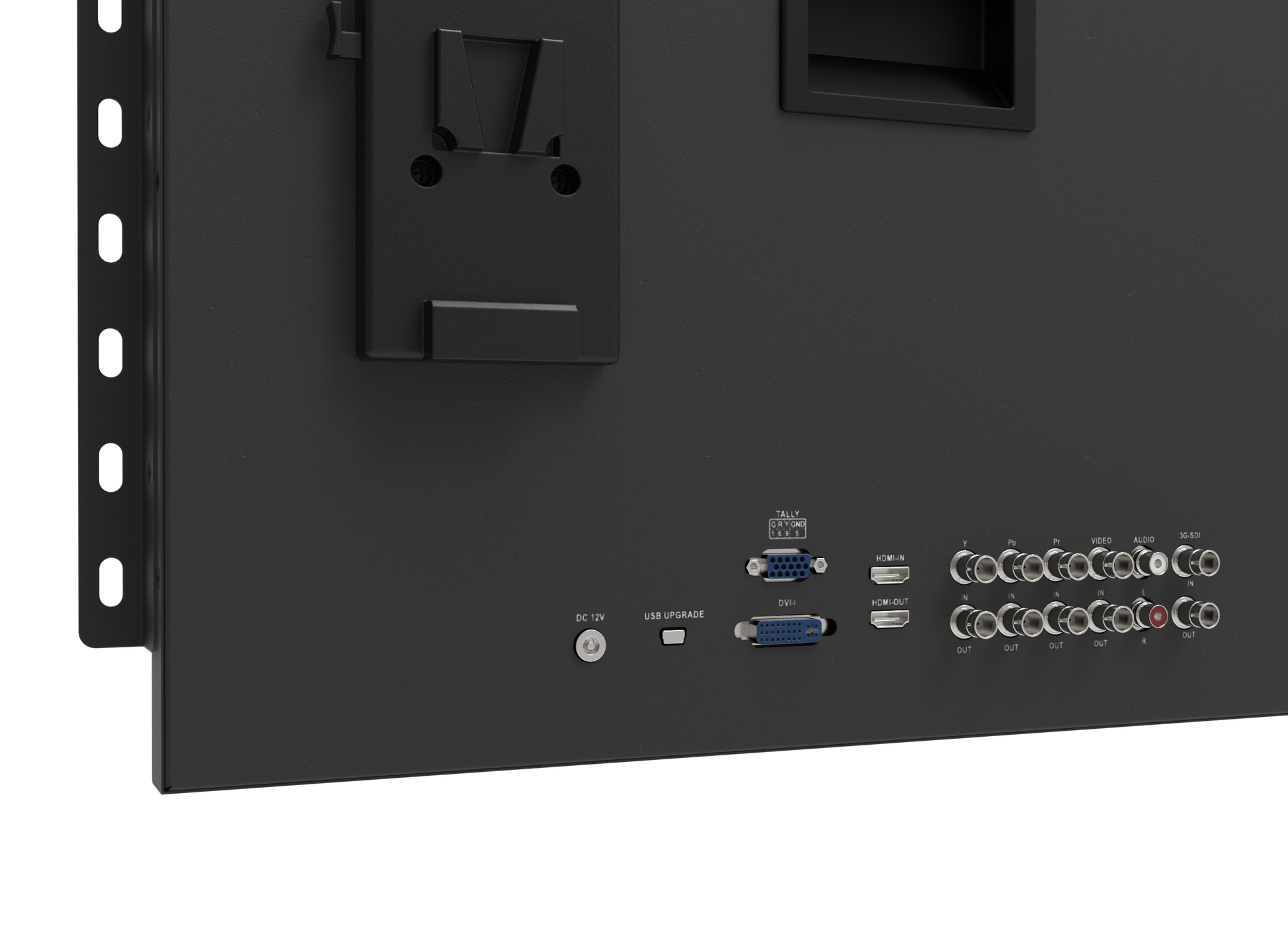

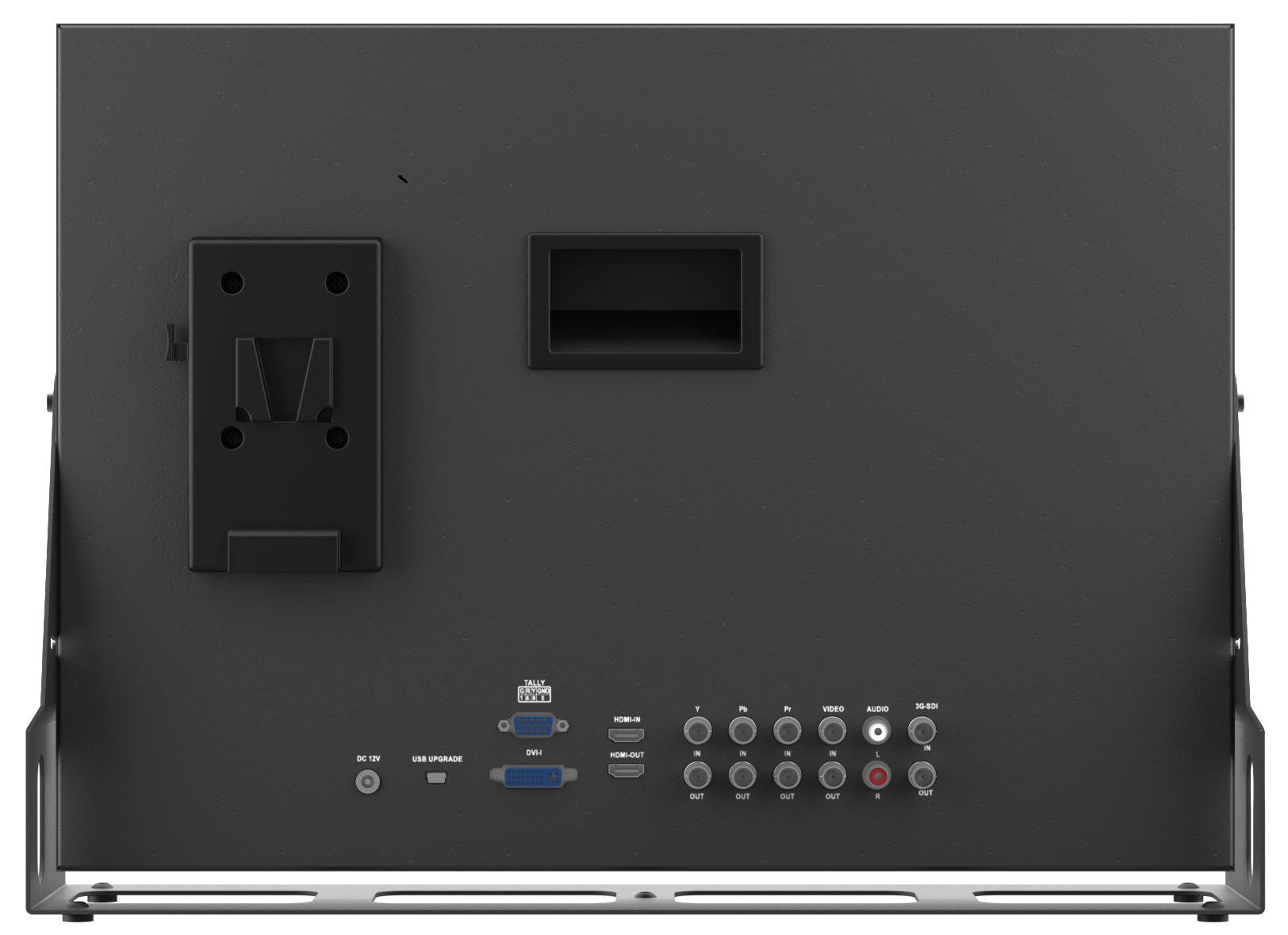

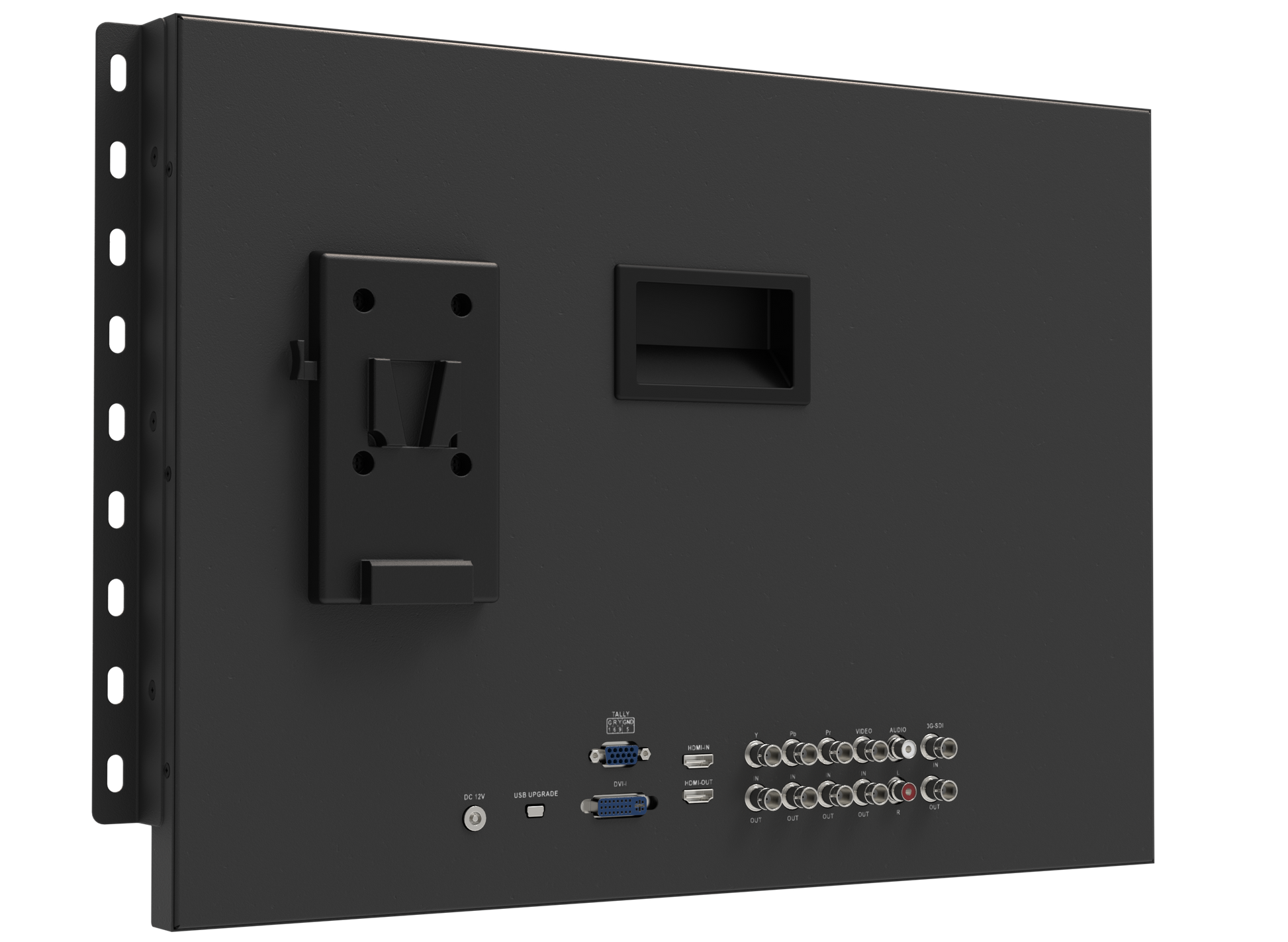

Versatile Connectivity: Supports 3G-SDI, HDMI, DVI-I, YPbPr, and Composite inputs, with loop-through outputs.
Flexible Power Options: Can be powered via DC 12V or V-Mount batteries, making it suitable for studio racks and field setups.

22" BROADCAST MONITOR Technical Specifications

Screen Size: 21.5”
Color Depth: 16.7M
Viewing Angle: 89/89 (L/R) 89/89 (U/D)
Aspect Ratio: 16:9
Brightness: 500 cd/m Square
Contrast Ratio: 1000:1
Backlight LED
Input Voltage: 12V DC
Power Consumption: ≤ 36W
Working Temperature: -10°C~50°C
Storage Temperature: -20°C~60°C
Unit Size: 360W x 500.4L x 35.6H mm
Unit Weight: 4.7 kg
