17" STUDIO TELEPROMPTER
17" STUDIO TELEPROMPTER
SKU:FOR-ERA-LITE
Couldn't load pickup availability

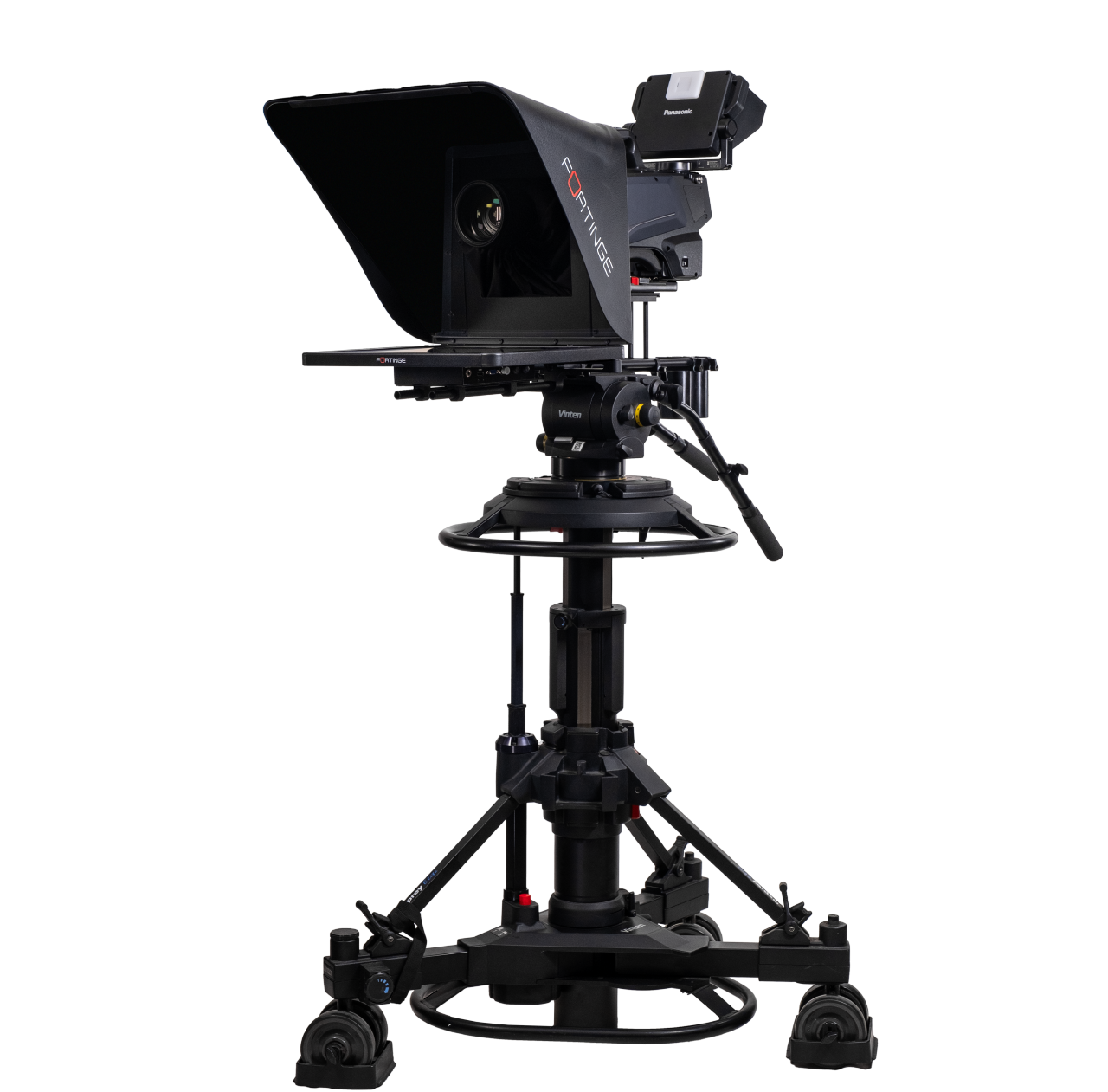

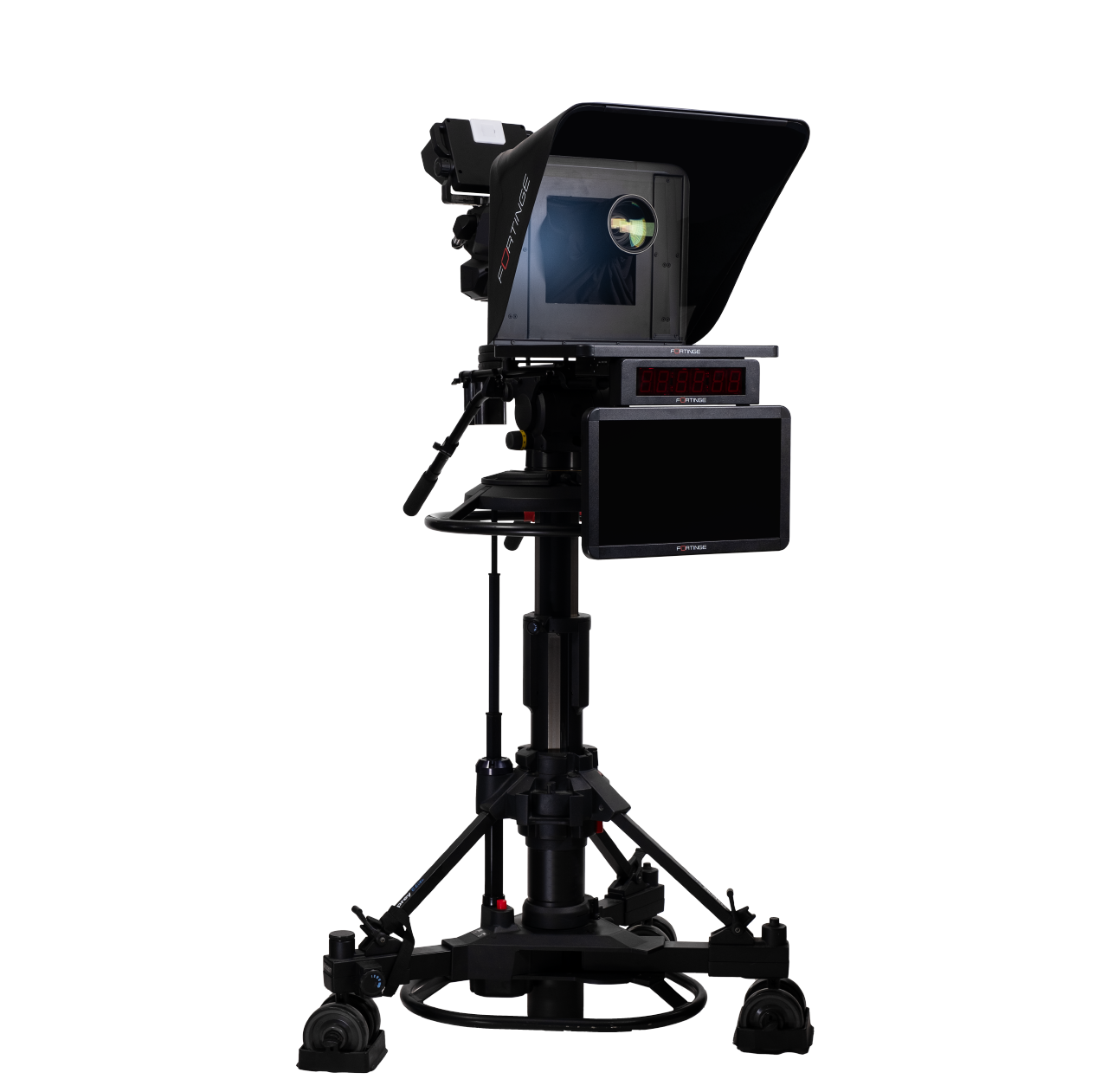

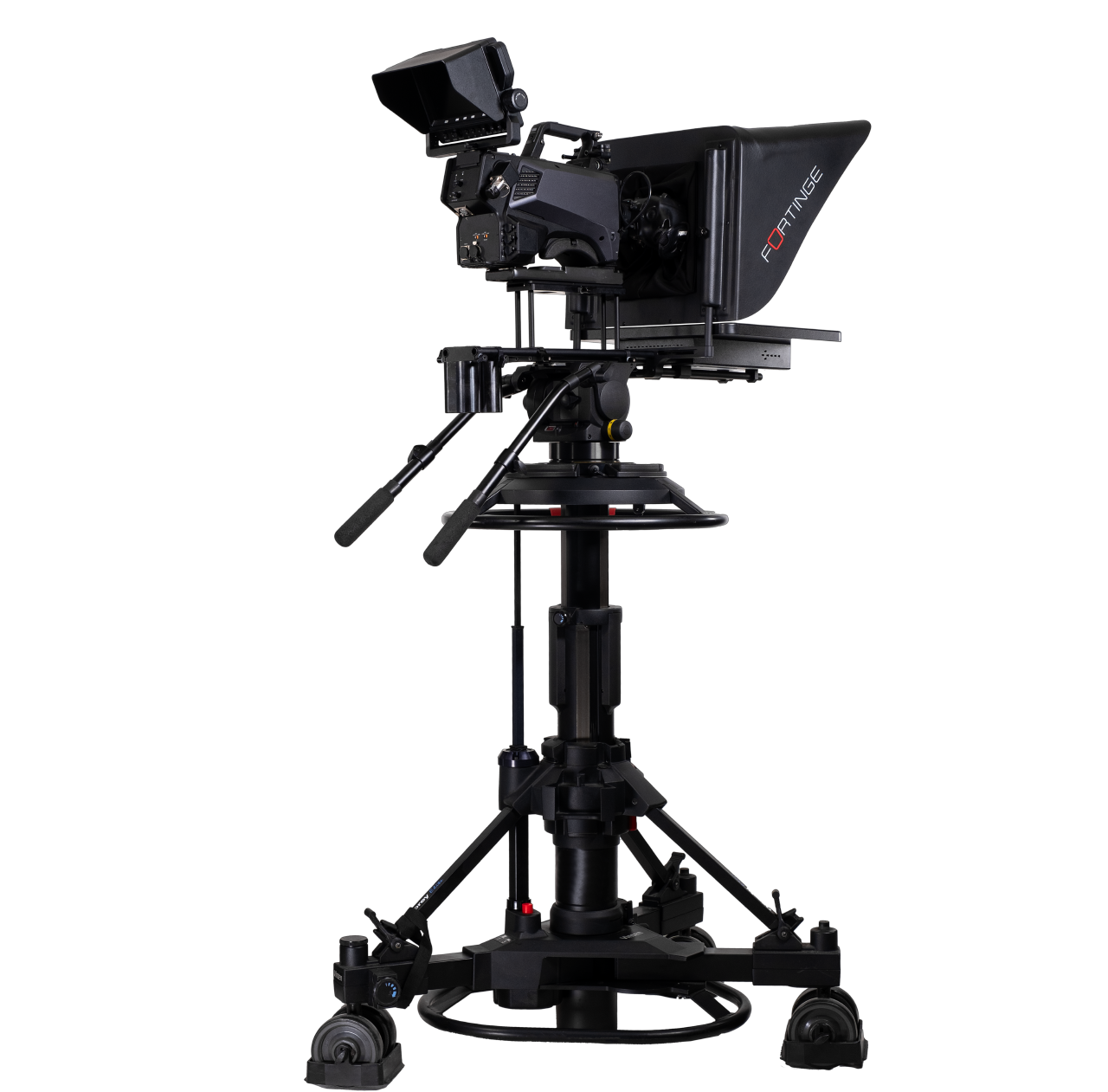

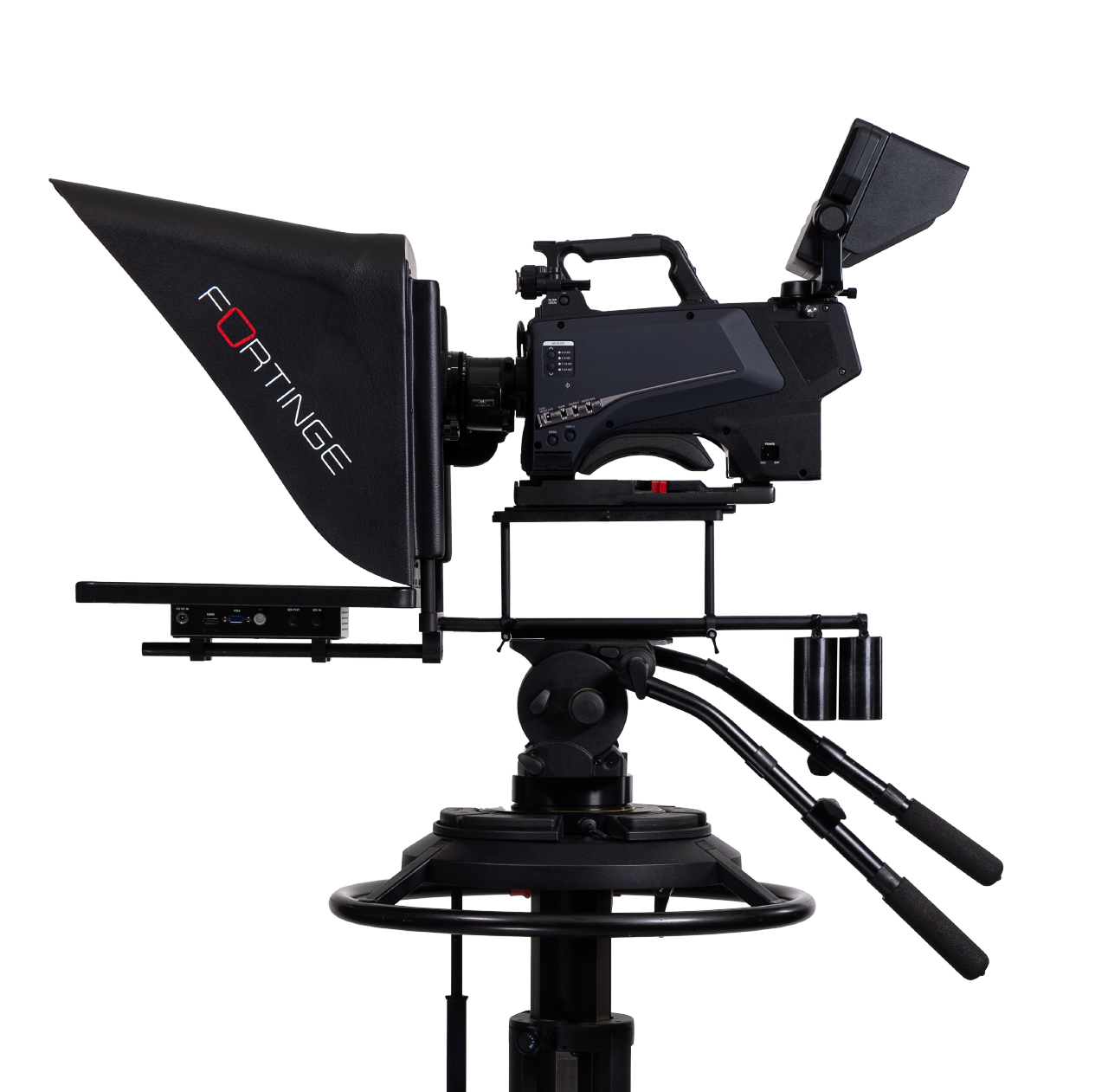

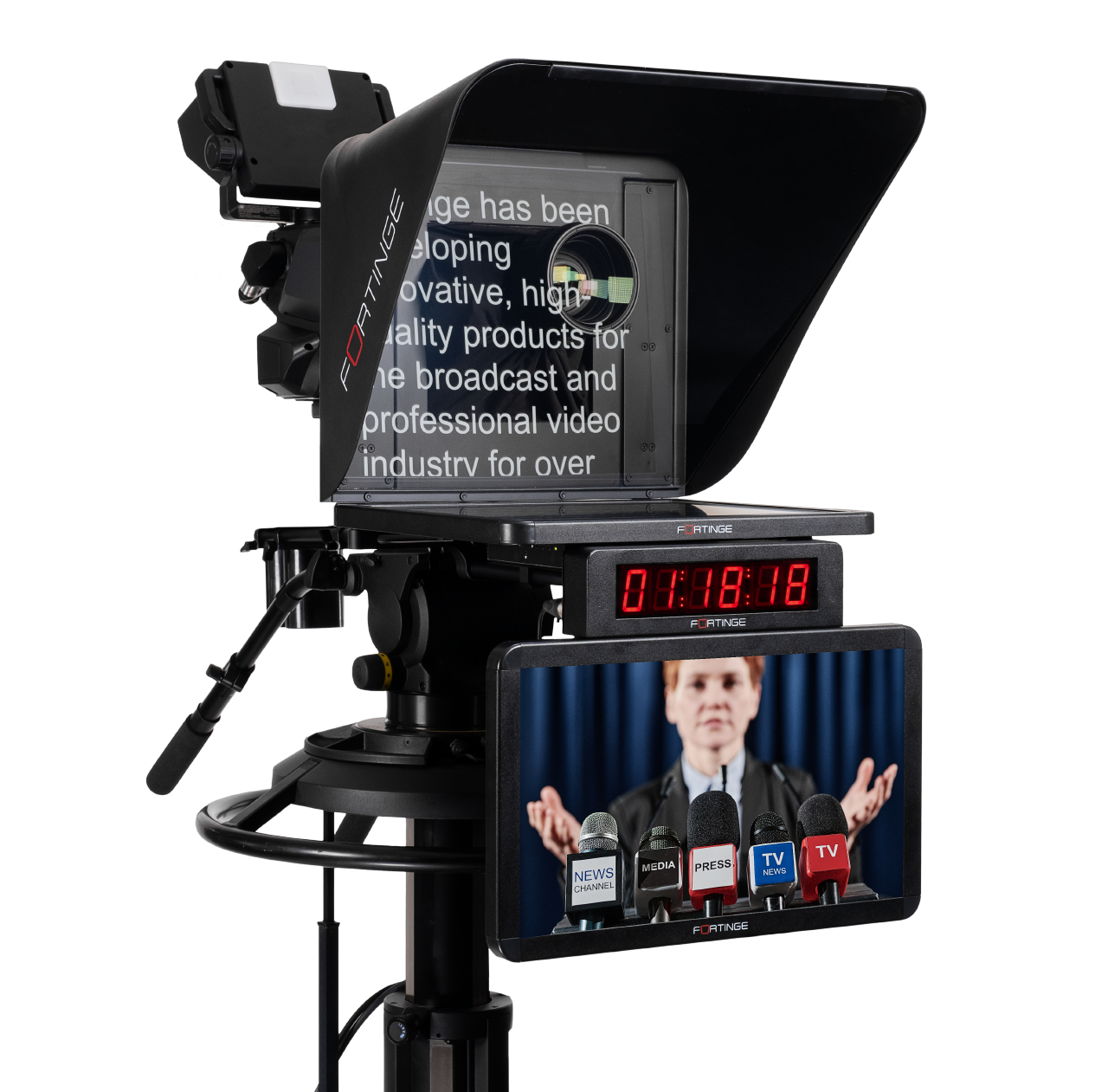

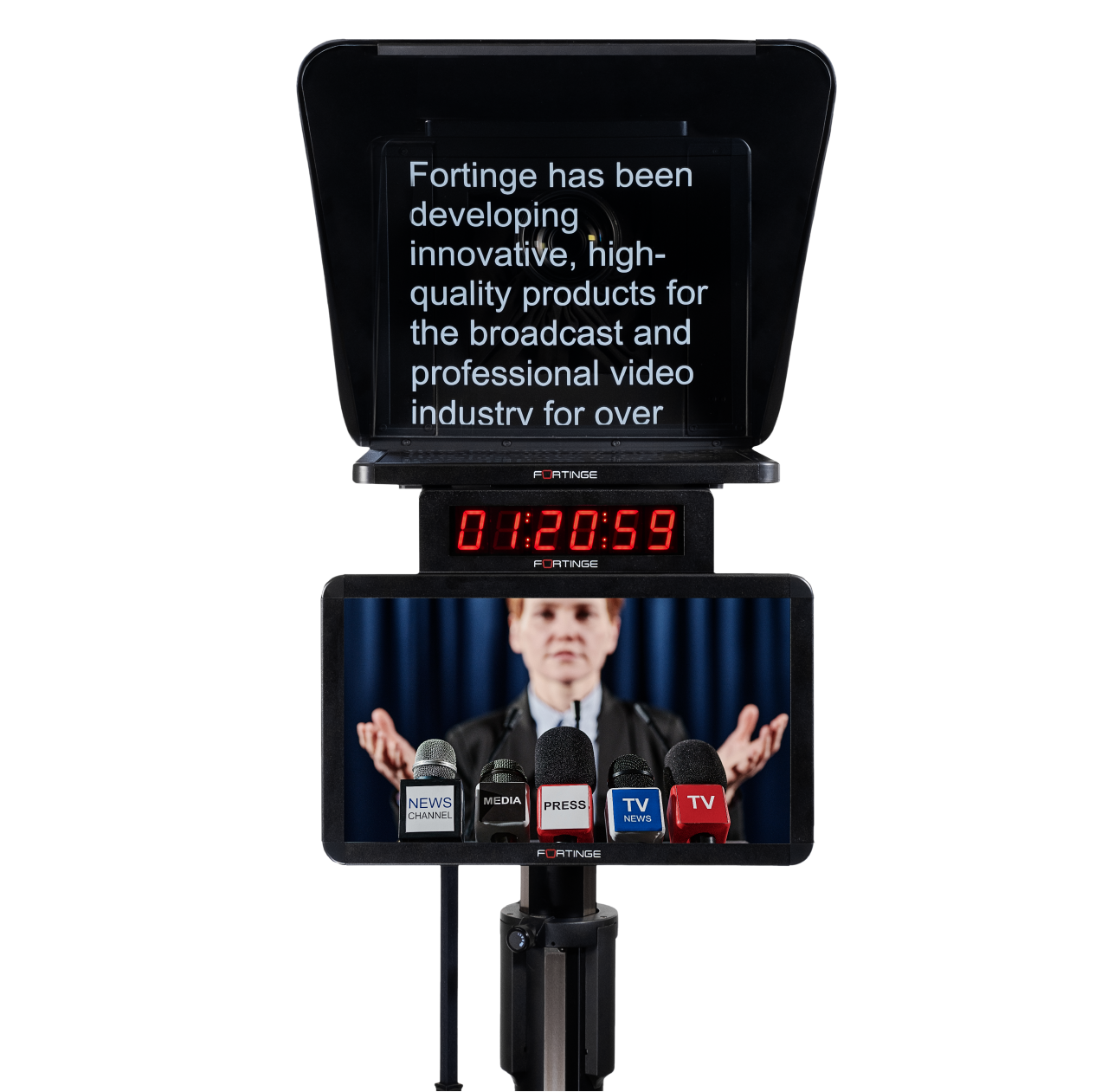

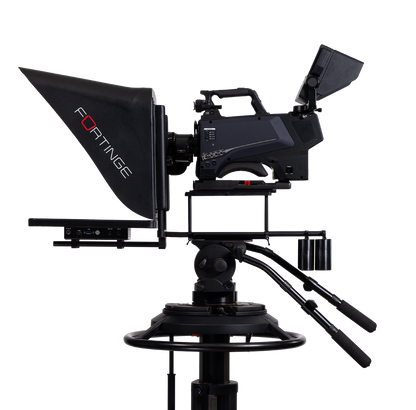

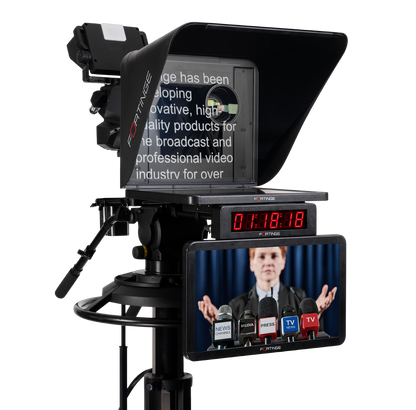

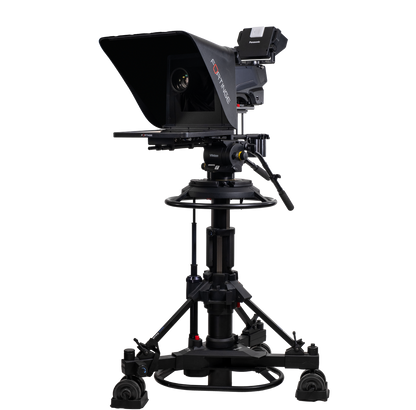

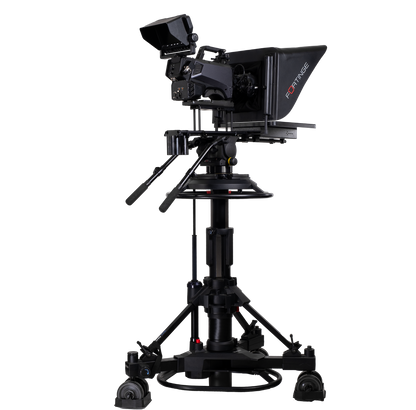

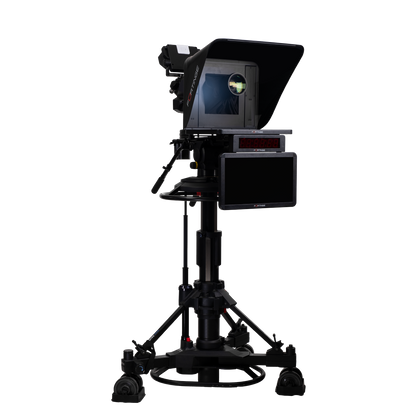

The Fortinge ERA-IP 17" Studio Teleprompter is designed for professional broadcast environments, supporting system cameras in the 10–20 kg range. It features a 17" 4:3 LCD display with a resolution of 1280×1024 and a brightness of 250 nits (with a 1000-nit High Brightness option available).
Connectivity includes NDI, SDI, HDMI, Composite (BNC) and VGA inputs, with SDI and Composite outputs provided. A 3-pin mini XLR tally input is also built in. Each unit ships with a 70/30 beam splitter glass, protective hood, quick-release plate, and all required fittings.
The system is engineered for easy setup, and with its flip-mirror capability, operators can rely on a correctly displayed script straight out of the box.
Capabilities and Functions
17" STUDIO TELEPROMPTER Features & Specifications
17" STUDIO TELEPROMPTER Product Features
1280 × 1024 resolution delivers clear, sharp text for professional teleprompting
Brightness of 250 nits suitable for standard studio lighting conditions
Multiple connectivity options for flexible integration: NDI, SDI, HDMI, Composite, and VGA
SDI and Composite outputs allow easy signal routing to other devices
3-pin mini XLR tally input for integration with tally systems

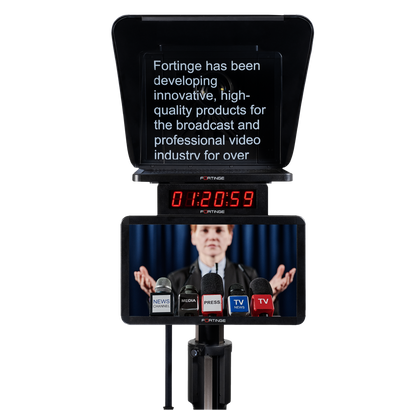

Included 70/30 Beam Splitter Glass provides clear reflection of scripts while keeping the camera view unobstructed
Protective hood minimizes glare and external light, ensuring optimal readability
Ideal for studio, broadcast, and live production environments
17" STUDIO TELEPROMPTER Technical Specifications
Panel Brand: 17"
Glass: 70/30 Prompter Glass
Panel INDUSTRIAL TFT LCD PANEL
Resolution: 1280 × 1024
Sharpness: 1000:01:00
Brightness: 250cd/m Square
Glass Size(trapezoidal) Length: 45.1 cm Height: 49.1 cm
Video Input: HDMI, Composite (BNC), VGA, SDI (Optional)
Video Output: SDI (Optional)
High Brightness(Optional): 1000 cd/m2
Plate Quick Release
Viewing Angle (degree): Horizontal Typ. 170° Vertical Typ. 160°
Rated Input Voltage: 12 V DC
Transport Conditions SCALE: 66.5 × 54 × 20.5
KG (Gross) 7.2
Would you like more information on the 17" STUDIO TELEPROMPTER?
For more indepth information, please download the 17" STUDIO TELEPROMPTER product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
