Kiloview N50 12G-SDI to NDI Bi-Directional Converter

- N50 supports 12G-SDI format encoding/decoding of both NDI high-bandwidth and NDI|HX2/3 by H.264/H.265.
- Encoding and decoding with ultra-low latency (less than 80ms).
- Pro-level colour performance supporting a professional YCbCr 4:2.2 colour space and a 10-bit colour depth.

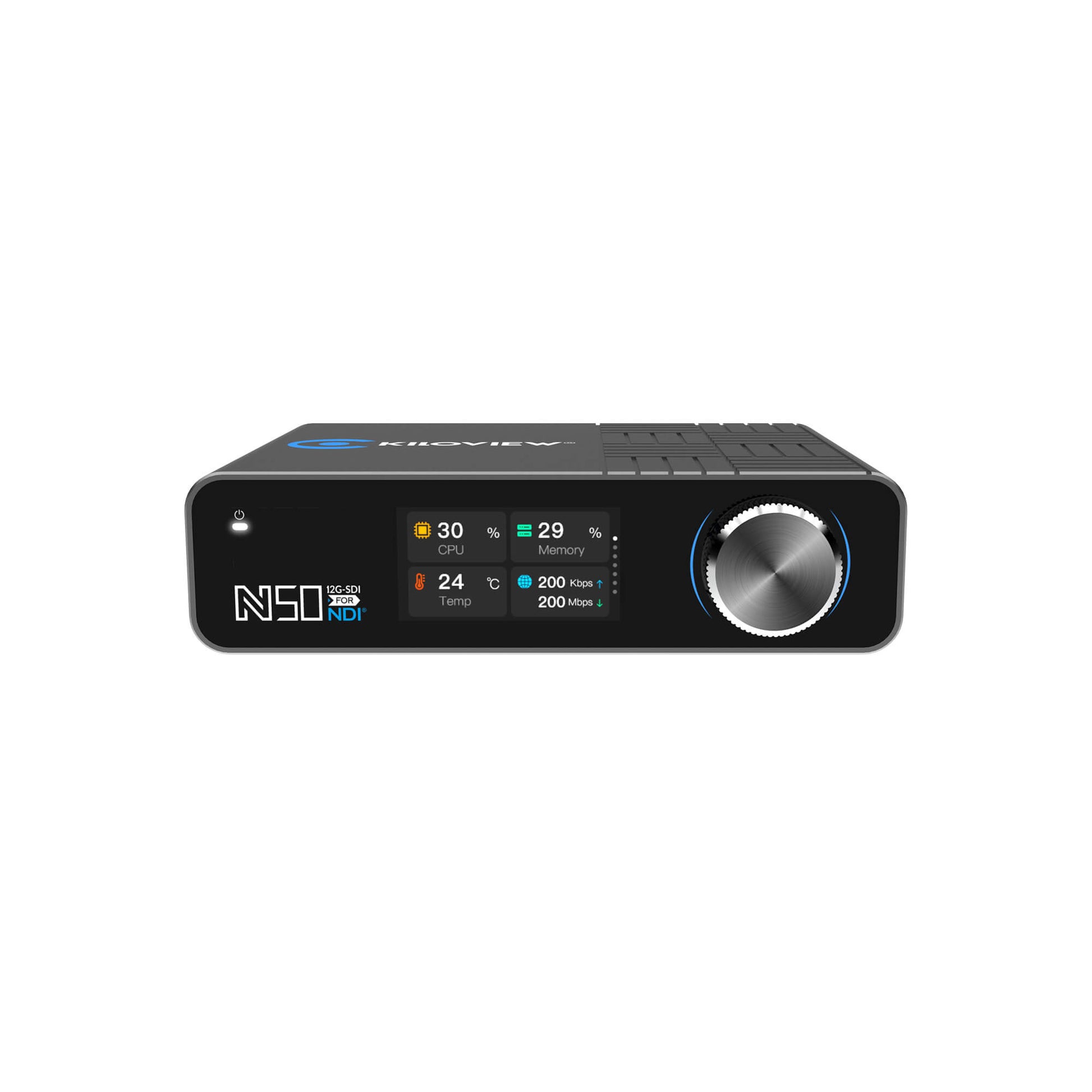

- Built-in LCD screen and scroll wheel.
- Audio and intercom.
- PTZ control through USB to serial RS-232/RS-485/RS-422 and network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.
- Power supply from PoE and DC.
- TF storage.
- Central management with KiloLink Server.

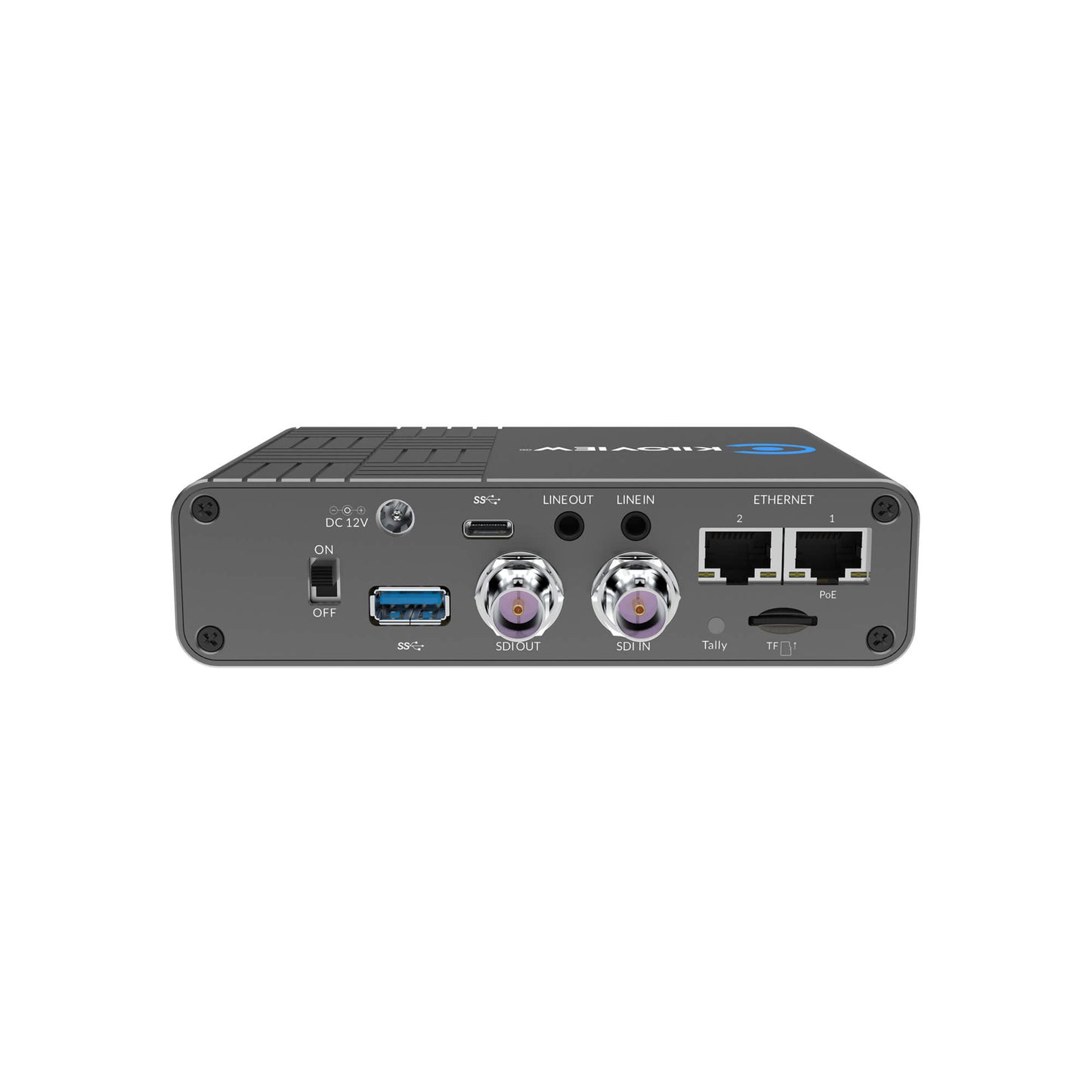

- Video input: 1 x 4Kp60 12G-SDI 2.0
- Video output: 1 x 4Kp60 12G-SDI 2.0（Loop or decoding output）
- Audio port: 1 x 3.5mm Line in, 1 x 3.5mm Line out
- Network: 2 x RJ45 1000Mbps Ethernet port, Ethernet 1 with PoE (IEEE 802.3AT, 24W Max)
- Video resolution: Input: up to 3840x2160 60fps (4Kp60), lowest 720p50, Output (decoding or loop out): up to 3840x2160 60fps (4Kp60), lowest 720p50
- NDI® codec capacity: 1x NDI® HB/HX encoding or 1x NDI® HB/HX decoding
- NDI®CODEC feature: SpeedHQ (NDI CODEC): SHQ0, SHQ2
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264, ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265, AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level, HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
- Audio encoding and decoding: NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion
- USB: 1 x USB3.0 (type A), 1 x USB3.0 (type C)
- Human-computer interaction: 1.96〞LCD screen, KILOVIEW Magic Rotor
- TF storage: Support TF card for recording, capacity up to 2TB
- Tally: Built-in LCD panel available as front/rear Tally
- Power: DC 12V （5.5/2.5）or PoE
- NDI: Support NDI HB, NDI HX 2 and NDI HX 3.
- Typical Bitrates: SpeedHQ (NDI CODEC):
4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps
480i60: 62.5Mbps | AVC (H.264): Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60) |
HEVC (H.265): Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60).
- Recording: TF card available for local storage to .mov filles.
Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required).
- Voice intercom: Support voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server.
- PTZ: Support PTZ control through USB to serial RS232/485/422; or PTZ control over IP with different protocols, no extra cable required
- Management: Web UI and remote management with KILOVIEW KiloLink Server
- Firmware update: Firmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server
- Mounting: Support cold-shoe mounting and V-mounting
- Power Consumption: 16W Max
- Certificates: CE/ FCC/ROHS
- Dimensions: 135mm x 123.6mm x 35mm
